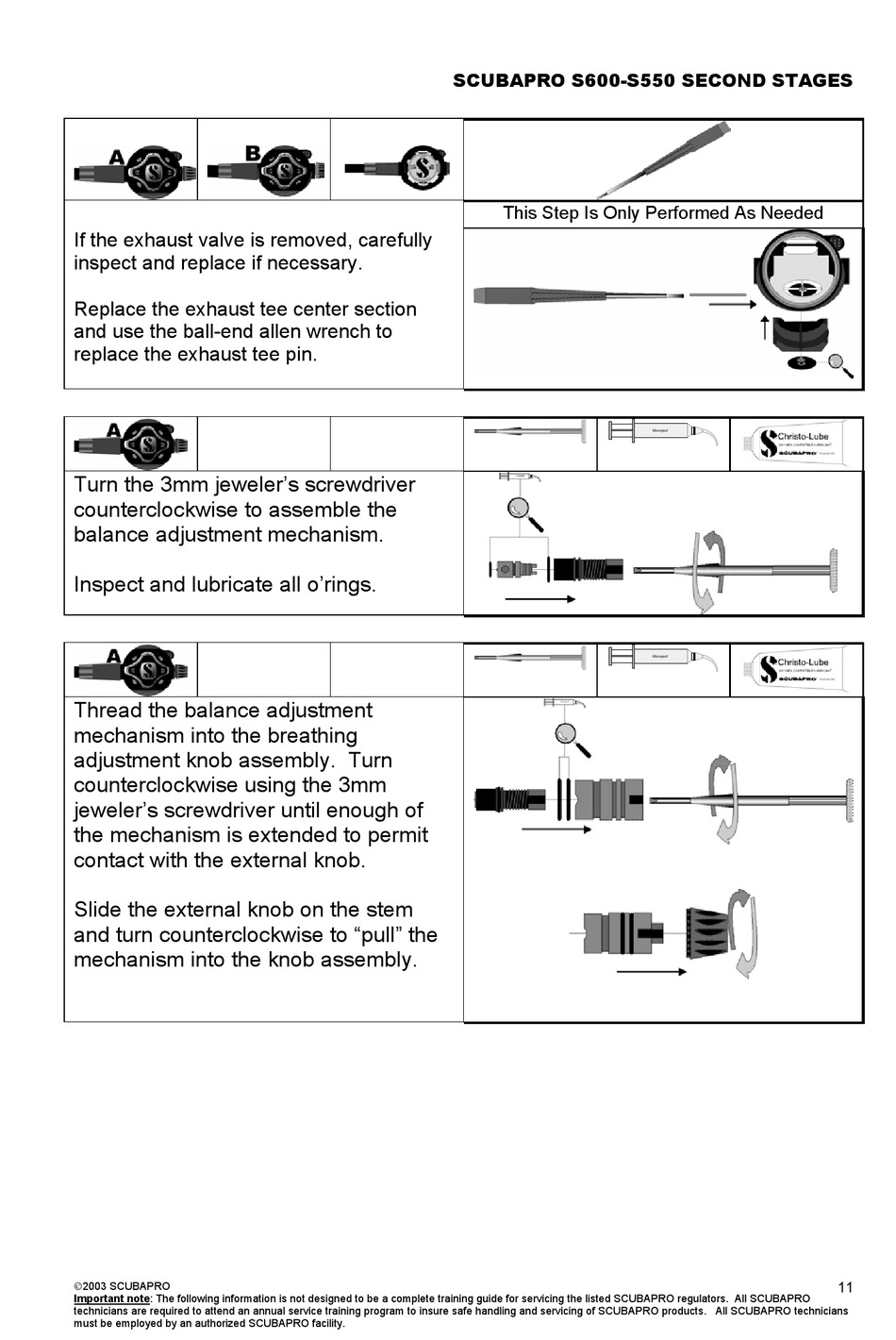

Uwatec S600 Configuration A Repair Manual page 11

If the exhaust valve is removed, carefully
inspect and replace if necessary.
Replace the exhaust tee center section
and use the ball-end allen wrench to
replace the exhaust tee pin.
Turn the 3mm jeweler's screwdriver
counterclockwise to assemble the
balance adjustment mechanism.
Inspect and lubricate all o'rings.
Thread the balance adjustment
mechanism into the breathing
adjustment knob assembly. Turn
counterclockwise using the 3mm
jeweler's screwdriver until enough of
the mechanism is extended to permit
contact with the external knob.
Slide the external knob on the stem
and turn counterclockwise to "pull" the
mechanism into the knob assembly.
2003 SCUBAPRO
Important note: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
SCUBAPRO S600-S550 SECOND STAGES
This Step Is Only Performed As Needed
Monoject
Monoject
11
