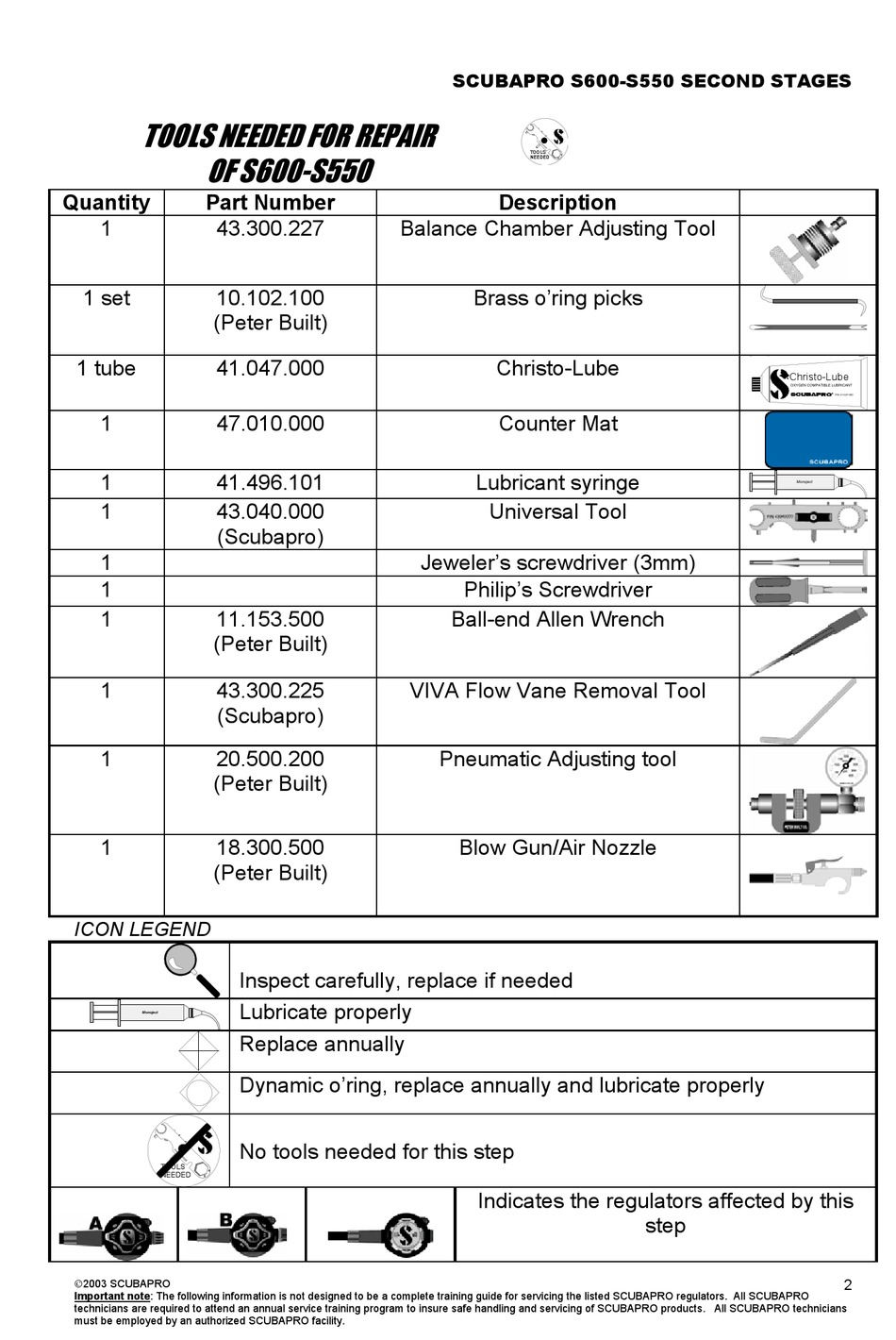

TOOLS NEEDED FOR REPAIR

OF S600-S550
Quantity Part Number
1 43.300.227
1 set 10.102.100
(Peter Built)
1 tube 41.047.000
1 47.010.000
1 41.496.101
1 43.040.000
(Scubapro)
1
1
1 11.153.500
(Peter Built)
1 43.300.225
(Scubapro)
1 20.500.200
(Peter Built)
1 18.300.500
(Peter Built)

ICON LEGEND

Monoject
TOOLS
NEEDED
2003 SCUBAPRO
Important note: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
Balance Chamber Adjusting Tool
Inspect carefully, replace if needed
Lubricate properly
Replace annually
Dynamic o'ring, replace annually and lubricate properly
No tools needed for this step
SCUBAPRO S600-S550 SECOND STAGES
TOOLS
NEEDED
Description
Brass o'ring picks
Christo-Lube
Counter Mat
Lubricant syringe
Universal Tool
Jeweler's screwdriver (3mm)
Philip's Screwdriver
Ball-end Allen Wrench
VIVA Flow Vane Removal Tool
Pneumatic Adjusting tool
Blow Gun/Air Nozzle
Indicates the regulators affected by this
Christo-Lube
OXYGEN COMPATIBLE LUBRICANT
Monoject
step
P/N 41-047-000
2
