Bed Controls Touch Screen Display - Stryker InTouch Quick Start Manual

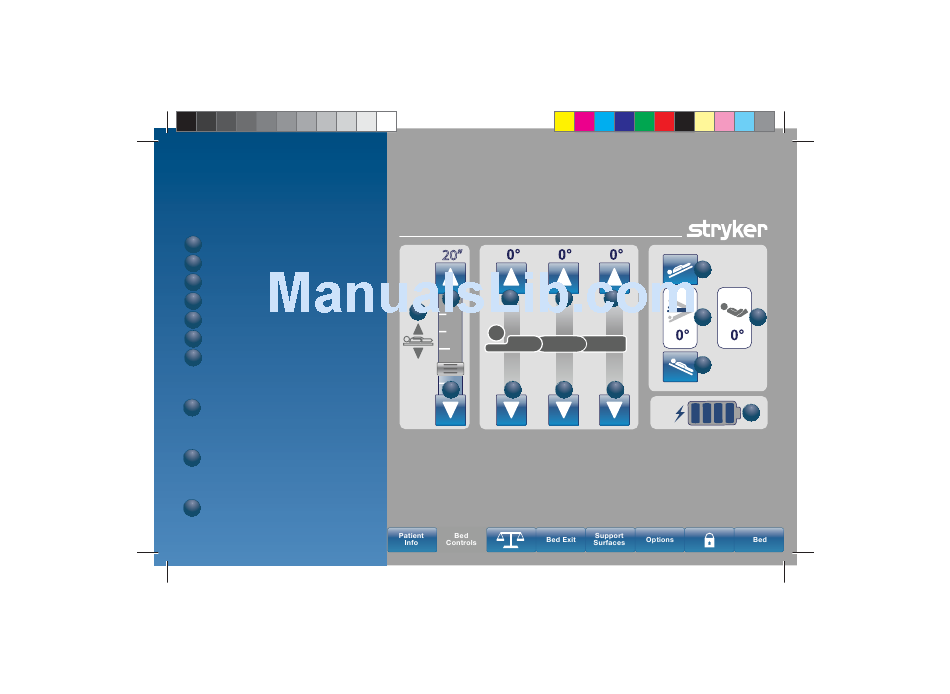

Bed Controls Touch
Screen Display
A Bed Height Control
B Head Of Bed Angle Control
C Gatch Up/Down
D Foot Up/Down
E Trendelenburg
Reverse Trendelenburg
F
G Angle Indicator (Trendelen-
burg or Reverse
Trendelenburg)
H HOB Angle Indicator
This shows the Fowler
angle.
I Battery Power Indicator
(Four rectangles is a full
charge.)
J Bed Height Indicator
