Blocks— Transducer Block
June 2017

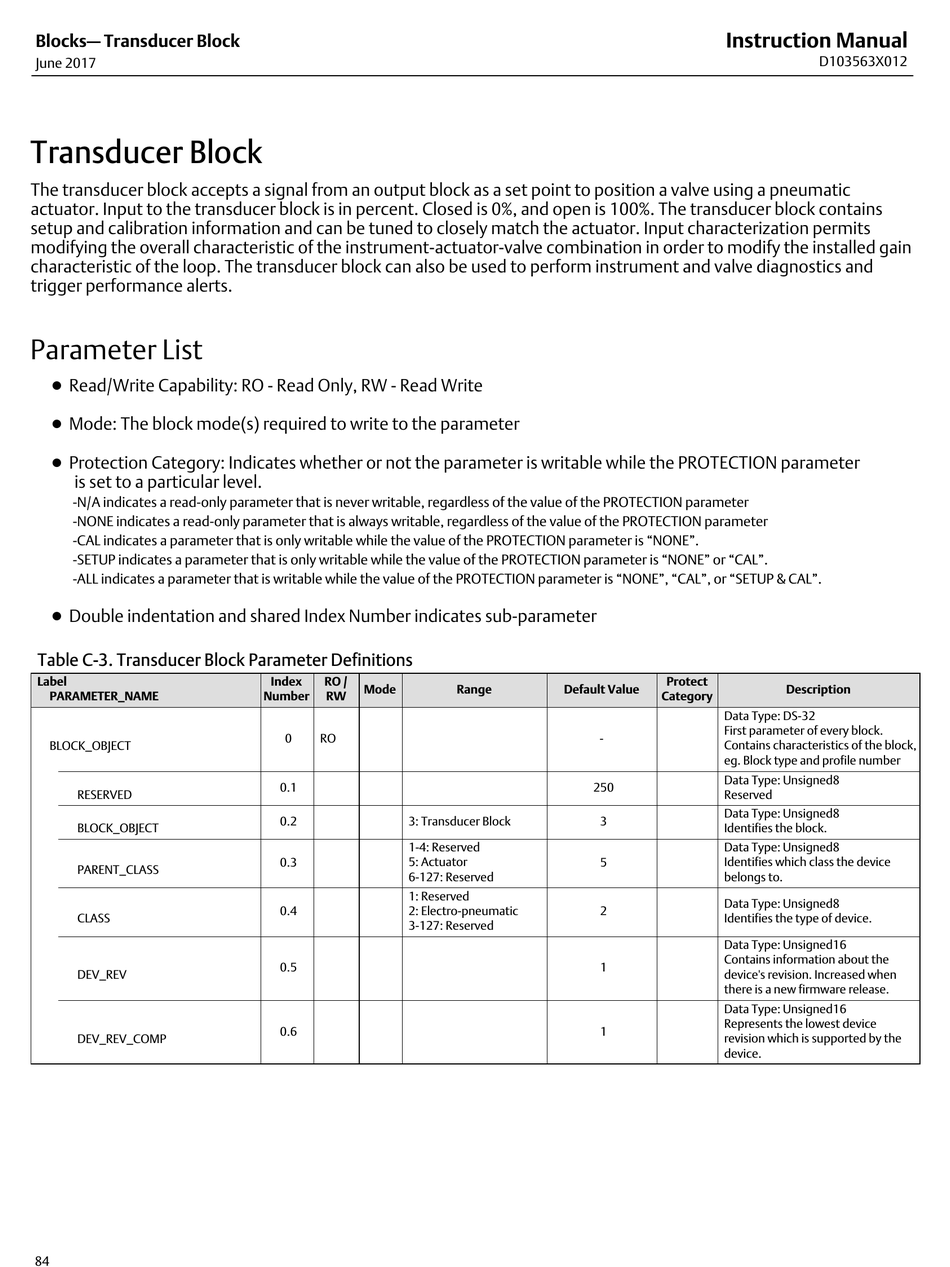

Transducer Block

The transducer block accepts a signal from an output block as a set point to position a valve using a pneumatic
actuator. Input to the transducer block is in percent. Closed is 0%, and open is 100%. The transducer block contains
setup and calibration information and can be tuned to closely match the actuator. Input characterization permits
modifying the overall characteristic of the instrument‐actuator‐valve combination in order to modify the installed gain
characteristic of the loop. The transducer block can also be used to perform instrument and valve diagnostics and
trigger performance alerts.
Parameter List
D Read/Write Capability: RO - Read Only, RW - Read Write
D Mode: The block mode(s) required to write to the parameter
D Protection Category: Indicates whether or not the parameter is writable while the PROTECTION parameter
is set to a particular level.
-N/A indicates a read‐only parameter that is never writable, regardless of the value of the PROTECTION parameter
-NONE indicates a read‐only parameter that is always writable, regardless of the value of the PROTECTION parameter
-CAL indicates a parameter that is only writable while the value of the PROTECTION parameter is "NONE".
-SETUP indicates a parameter that is only writable while the value of the PROTECTION parameter is "NONE" or "CAL".
-ALL indicates a parameter that is writable while the value of the PROTECTION parameter is "NONE", "CAL", or "SETUP & CAL".
D Double indentation and shared Index Number indicates sub‐parameter
Table C‐3. Transducer Block Parameter Definitions
Label
PARAMETER_NAME
BLOCK_OBJECT
RESERVED
BLOCK_OBJECT
PARENT_CLASS
CLASS
DEV_REV
DEV_REV_COMP
84
Index RO /
Mode
Number RW
0 RO
0.1
0.2 3: Transducer Block
1-4: Reserved
0.3 5: Actuator
6-127: Reserved
1: Reserved
0.4 2: Electro-pneumatic
3-127: Reserved
0.5
0.6
Range Default Value
-
250
3
5
2
1
1
Instruction Manual
D103563X012
Protect
Description
Category
Data Type: DS‐32
First parameter of every block.
Contains characteristics of the block,
eg. Block type and profile number
Data Type: Unsigned8
Reserved
Data Type: Unsigned8
Identifies the block.
Data Type: Unsigned8
Identifies which class the device
belongs to.
Data Type: Unsigned8
Identifies the type of device.
Data Type: Unsigned16
Contains information about the
device's revision. Increased when
there is a new firmware release.
Data Type: Unsigned16
Represents the lowest device
revision which is supported by the
device.
