Instruction Manual
D103563X012

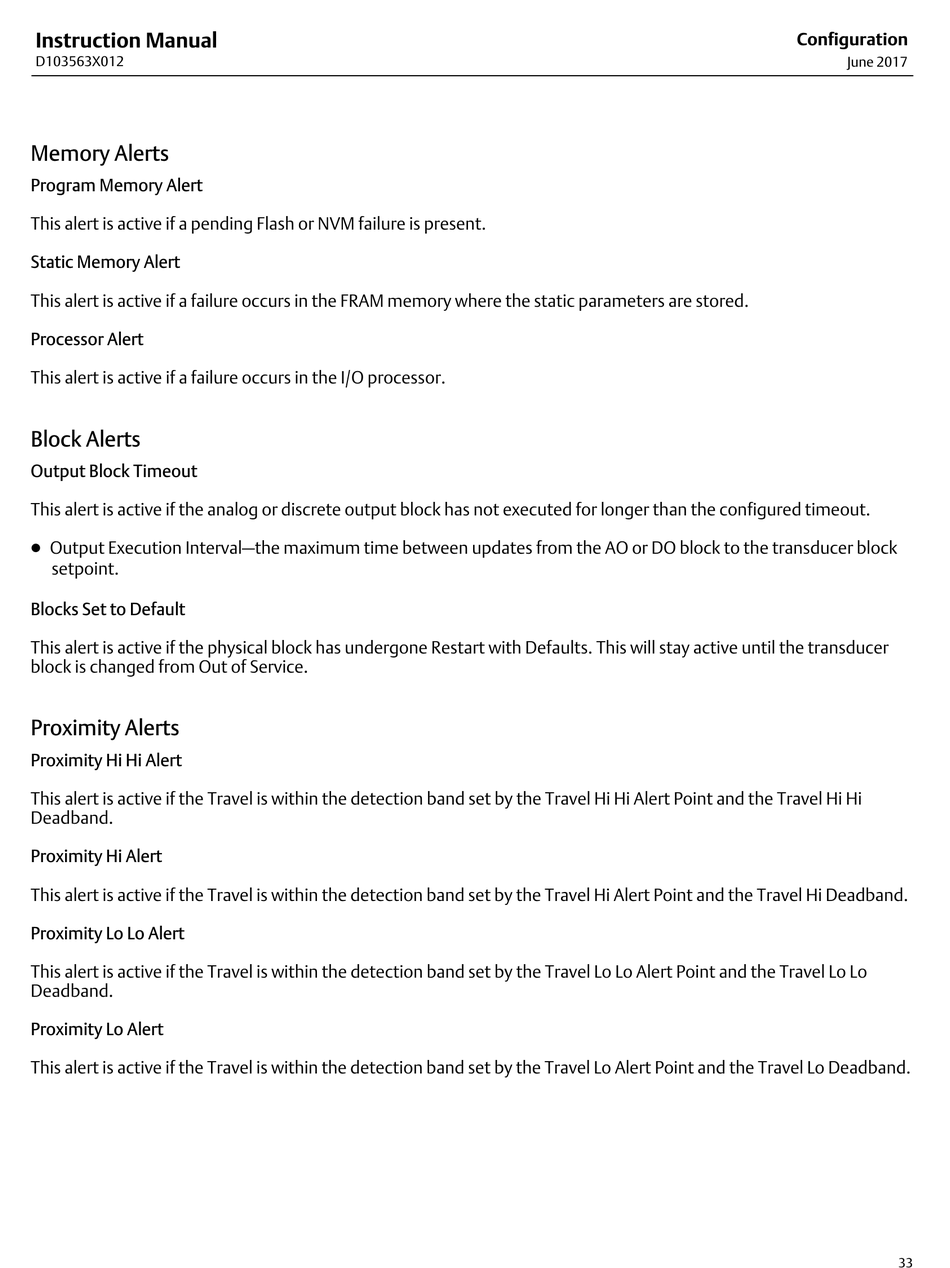

Memory Alerts

Program Memory Alert
This alert is active if a pending Flash or NVM failure is present.
Static Memory Alert
This alert is active if a failure occurs in the FRAM memory where the static parameters are stored.
Processor Alert
This alert is active if a failure occurs in the I/O processor.

Block Alerts

Output Block Timeout
This alert is active if the analog or discrete output block has not executed for longer than the configured timeout.
D Output Execution Interval—the maximum time between updates from the AO or DO block to the transducer block
setpoint.
Blocks Set to Default
This alert is active if the physical block has undergone Restart with Defaults. This will stay active until the transducer
block is changed from Out of Service.

Proximity Alerts

Proximity Hi Hi Alert
This alert is active if the Travel is within the detection band set by the Travel Hi Hi Alert Point and the Travel Hi Hi
Deadband.
Proximity Hi Alert
This alert is active if the Travel is within the detection band set by the Travel Hi Alert Point and the Travel Hi Deadband.
Proximity Lo Lo Alert
This alert is active if the Travel is within the detection band set by the Travel Lo Lo Alert Point and the Travel Lo Lo
Deadband.
Proximity Lo Alert
This alert is active if the Travel is within the detection band set by the Travel Lo Alert Point and the Travel Lo Deadband.
Configuration
June 2017
33
