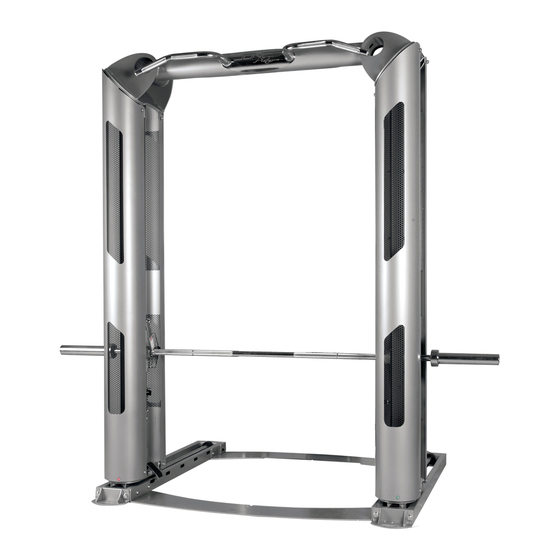

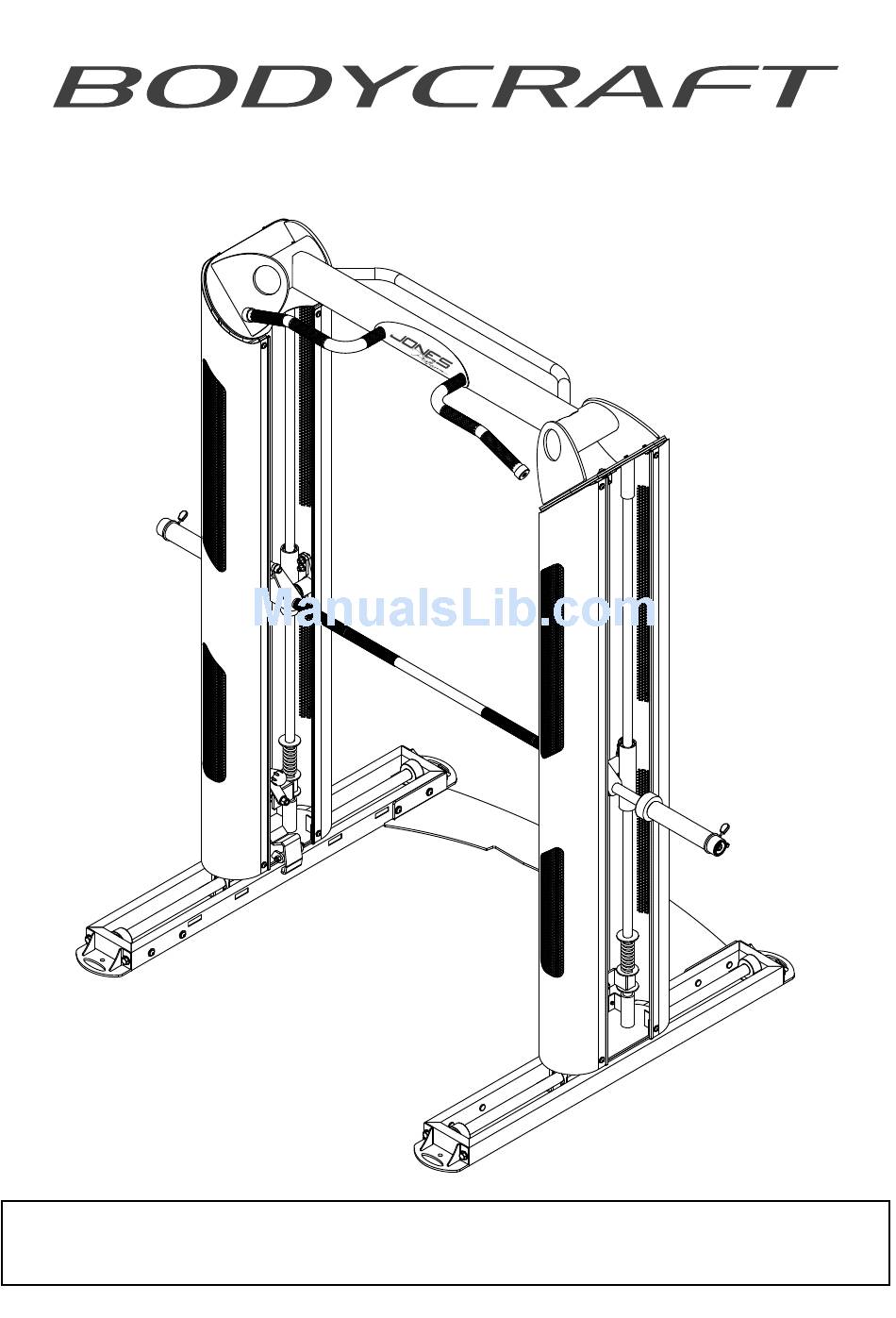

- Page 1 Jones Platinum Strength Training System OWNERS MANUAL MA9051A Recreation Supply Inc. Jones Platinum 7699 Green Meadows Dr Model No. BODYCRAFT Lewis Center, OH 43035 is a division of Recreation Supply Rev. 04/17...
- Page 3 8. Make certain all cables are seated within the pulleys before every use. 9. Exercise with care to avoid injury. 10. If you are unsure about the proper use of the BODYCRAFT Jones Platinum call your local BODYCRAFT dealer or our customer service department.
- Page 4 Gym Placement Planner WALL 20”* with Full Body Trainer (FBT) Option* 82”* 62” Base 59” Base Frame HEIGHT 84” 83.5" with Bar * Use this measurement if you have purchased the optional FBT (full body trainer). Important Notes and Tips: Recommended Tools for Assembly 1.
-
Page 5: Parts List
PARTS LIST NO. DESCRIPTION QTY. BASE FRAME REAR BASE FRAME CONNECTOR RIGHT UPRIGHT FRAME LEFT UPRIGHT FRAME RIGHT BAR RACK LEFT BAR RACK VERTICAL GUIDE ROD HORIZONTAL GUIDE ROD (pre-assembled in Base Frame) RIGHT WEIGHT SHROUD LEFT WEIGHT SHROUD POWER BAR TOP FRAME CHROMED CHIN UP BAR BASE FRAME END PLATE... - Page 6 PARTS LIST NO. DESCRIPTION QTY. SHORTER TRIM OF SHROUD LONGER TRIM OF SHROUD 1/2" X 3" HEX THREADED BOLT 1/2" X 1" HEX THREADED BOLT 1/2" X 1-3/4" HEX THREADED BOLT 3/8" X 2-3/4" HEX BOLT 3/8" X 1-1/4" HEX BOLT 3/8"...
-
Page 7: Base Frame Assembly
STEP 1 Base Frame Assembly TO EASE THE ASSEMBLY PROCESS. DO NOT TIGHTEN ANY BOLTS UNTIL INSTRUCTED. 1. Attach the REAR BASE FRAME CONNECTOR (2L) to the BASE FRAME (1), using four 3/8" X 1 INNER HEX SCREWS (46) and four 3/8"... - Page 8 STEP 2 Right & Left Upright Frame Assembly 1. Attach the RIGHT UPRIGHT (3R) to the holes of plate on the BASE FRAME (1), using five 3/8" X 5/8" INNER HEX SCREWS (47), and five 3/8" WASHERS (61). Please move the BEARING HOUSING (12) to see the moving smoothly before the Screws tighten.
-
Page 9: Top Frame Assembly
STEP 3 Top Frame Assembly 1. Attach TOP FRAME (9) to the RIGHT UPRIGHT FRAME (3R) and LEFT UPRIGHT FRAME (3L) and align the holes, using eight 3/8" X 5/8" INNER HEX SCREWS (47), ten 3/8" SPRING WASHERS (61) and two 3/8" NYLON NUTS (66). - Page 10 STEP 4 Right & Left Bar Rack Assembly 1. Attach RIGHT BAR RACK (4R) to the RIGHT UPRIGHT (3R), using six 3/8" X 2- 3/4" HEX BOLTS (43), twelve 3/8" WASHERS (58) and six 3/8" NYLON NUTS (66). 2. Please follow the same procedure for the LEFT BAR RACK (4L).
- Page 11 STEP 5 ABB Bar Assembly* The views of the Jones below are reversed. Confirm the bar orientation before proceeding. 1. To ease the assembly of ACTIVE BALANCE BAR (8), slide one end of BAR (8) through the gap of RIGHT UPRIGHT (3R) and insert the other end of BAR (8) through the gap of LEFT UPRIGHT (3L) as figure shown A,B,C,D.
- Page 12 STEP 6 Right & Left Weight Shroud Assembly 1. Attach Right WEIGHT SHROUD (7R) to the RIGHT UPRIGHT (3R), using four 5/16" X 1/2" INNER HEX BOLTS (49), four 5/16" X 1" INNER HEX SCREWS (48) and eight 5/16" WASHERS (60). 2, Please do the same procedures.
- Page 13 Always be certain that SAFETY SPOTTERS(15) are fully engaged when using spotters. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the Jones Platinum System. If You have any questions, please call your local BodyCraft dealer or call our customer service department at 800-990-5556...
