Summary of Contents for BodyCraft Jones Platinum JP1000.1

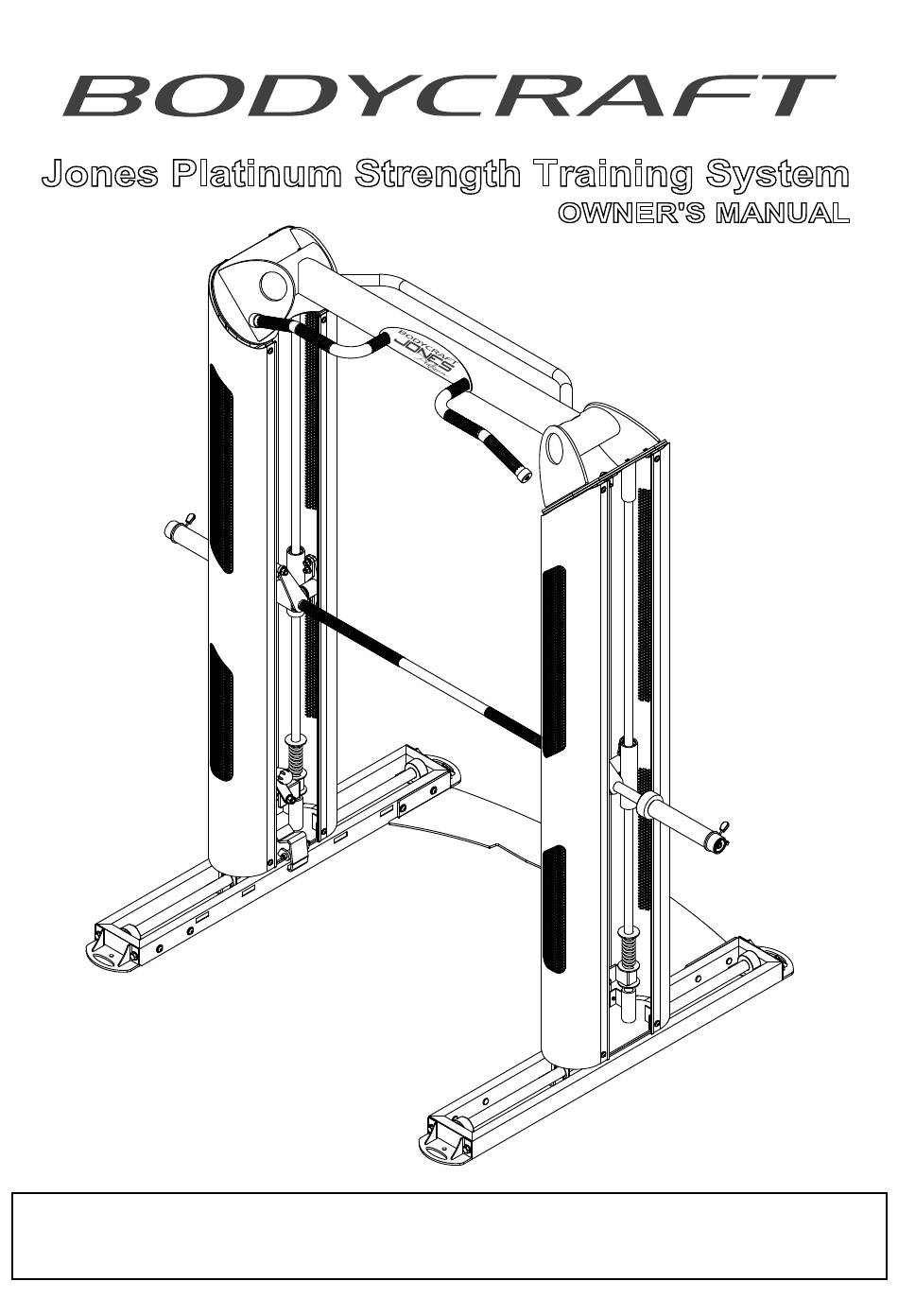

- Page 1 Jones Platinum Strength Training System OWNER'S MANUAL MA9059A Recreation Supply Inc. JP1000.1 7699 Green Meadows Drive Model No. BODYCRAFT Lewis Center, OH 43035 is a division of Recreation Supply...
-
Page 2: Before You Begin
BEFORE YOU BEGIN Congratulations and thank you for selecting the JONES PLATINUM strength training system. The JONES PLATINUM offers an impressive array of strength training exercises to develop every major muscle group of the body. Whether your goal is cardiovascular fitness, a shapely, toned body or dramatic muscle size and strength, the JONES PLATINUM will help you achieve the specific results you want. - Page 3 OVERVIEW...
-
Page 4: Parts List
PARTS LIST NO. DESCRIPTION QTY. BASE FRAME REAR BASE FRAME CONNECTOR RIGHT UPRIGHT FRAME LEFT UPRIGHT FRAME RIGHT BAR RACK LEFT BAR RACK VERTICAL GUIDE ROD (preassembled on Uprights) HORIZONTAL GUIDE ROD (pre-assembled in Base Frame) SHROUD SHROUD OLYMPIC BAR TOP FRAME CHROMED CHIN UP BAR BASE FRAME END PLATE... - Page 5 PARTS LIST NO. DESCRIPTION QTY. 1/2" X 3" HEX THREADED BOLT (preassembled on Safety Spotter) 1/2" X 1" HEX THREADED BOLT 1/2" X 1-3/4" HEX THREADED BOLT (preassembled on Safety Spotter) 3/8" X 2-3/4" HEX BOLT 3/8" X 1-1/4" HEX BOLT 3/8"...
-
Page 6: Base Frame Assembly
STEP 1 Base Frame Assembly IMPORTANT: ˙ To ease the assembly process, DO NOT tighten bolts until instructed. ˙ Please assemble on a flat level floor. ˙ Assembly requires three people during installation of the TOP FRAME. 1. Attach REAR BASE FRAME CONNECTOR (2R) to the BASE FRAME (1), using eight 3/8"... - Page 7 STEP 2 Right & Left Upright Frame Assembly 1. Attach the RIGHT UPRIGHT (3R) to the STEEL PLATE (12) on the BASE FRAME (1) using five 3/8" WASHERS (45) and five 3/8" X 5/8" INNER HEX SCREWS (35). 2. Repeat above step for left side. 1"...
-
Page 8: Top Frame Assembly
STEP 3 Top Frame Assembly This step requires three people! 1. Place one 3/8" X 5/8" INNER HEX SCREW (35) into each of the center holes in the angled plates on the TOP FRAME (9). Using three people, lift the TOP FRAME (9) into place, using the bolts to help align the TOP FRAME (9) with the RIGHT and LEFT UPRIGHTS (3R &... - Page 9 STEP 4 Right & Left Bar Rack Assembly 1. Attach RIGHT BAR RACK (4R) to the RIGHT UPRIGHT (3R), using six 3/8" X 2-3/4" HEX BOLTS (31), twelve 3/8" WASHERS (43) and six 3/8" NYLON NUTS (48). 2. Repeat the above instructions for the LEFT BAR RACK (4L).
- Page 10 STEP 5 Olympic Bar Assembly 1. As shown in Figs. A,B,C,D; slide one end of the OLYMPIC BAR (8) in between the VERTICAL GUIDE ROD (5) and the BAR RACK (4R) on the RIGHT UPRIGHT (3R) and the other end of the OLYMPIC BAR (8) in between the VERTICAL GUIDE ROD (5) and the LEFT BAR RACK (4L) on the LEFT UPRIGHT (3R).
-
Page 11: Shroud Assembly
STEP 6 Shroud Assembly 1. Attach WEIGHT SHROUD (7A) to the front of the RIGHT UPRIGHT (3R) using four 5/16" WASHERS (44) and four 5/16" X 1/2" INNER HEX SCREWS (37), and to the rear of the LEFT UPRIGHT (3L) using four 5/16"... - Page 12 9. Keep children away from the Jones Platinum. 10. Enjoy many years of a Fit Lifestyle! Please call us, or email us to let us know your thoughts! We love, and strive to provide the world's best fitness equipment! www.bodycraft.com info@bodycraft.com 800-990-5556...
