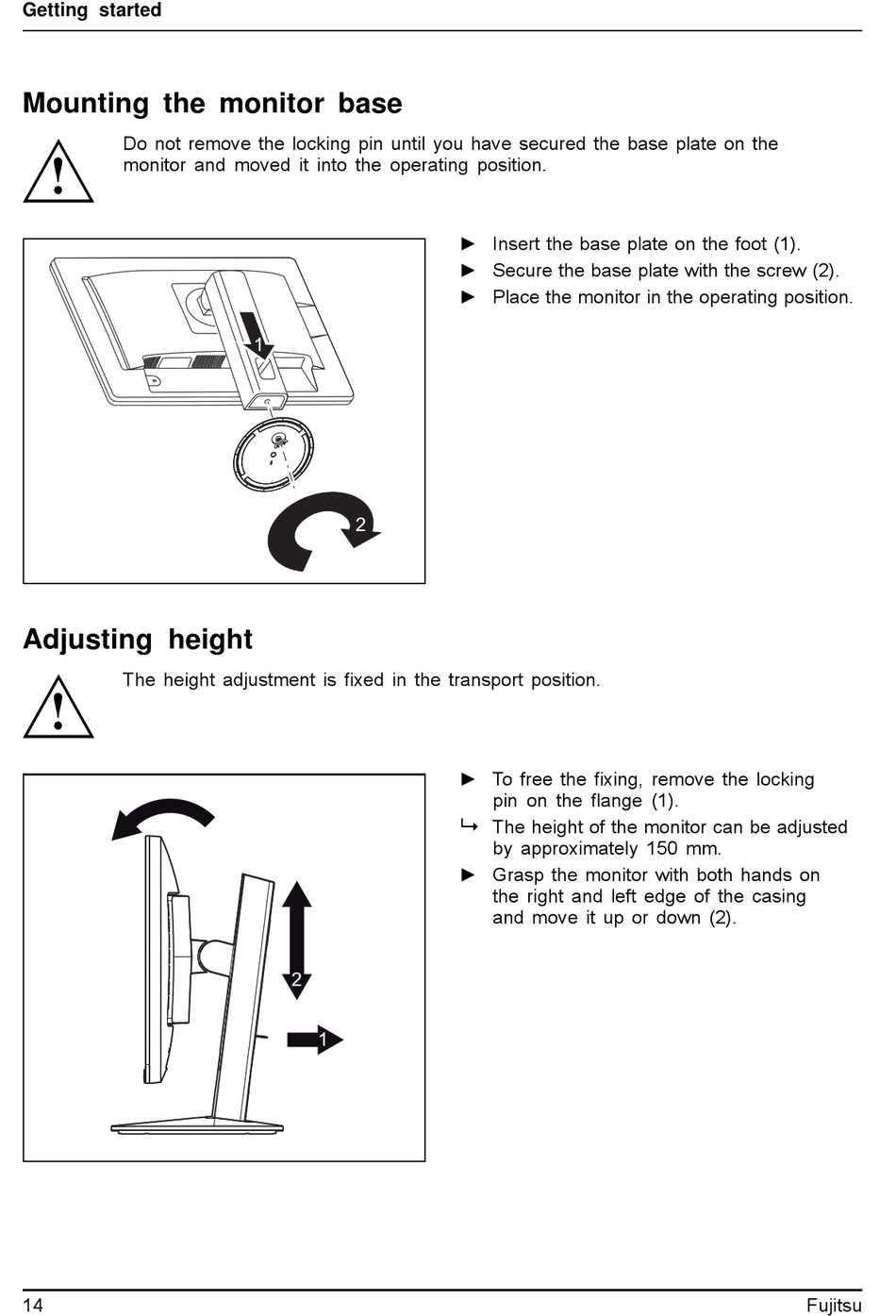

Getting started

Mounting the monitor base

Do not remove the locking pin until you have secured the base plate on the
monitor and moved it into the operating position.

Adjusting height

The height adjustment is fixed in the transport position.
14
1
2
2
1
► Insert the base plate on the foot (1).
► Secure the base plate with the screw (2).
► Place the monitor in the operating position.
► To free the fixing, remove the locking
pin on the flange (1).
The height of the monitor can be adjusted
by approximately 150 mm.
► Grasp the monitor with both hands on
the right and left edge of the casing
and move it up or down (2).
