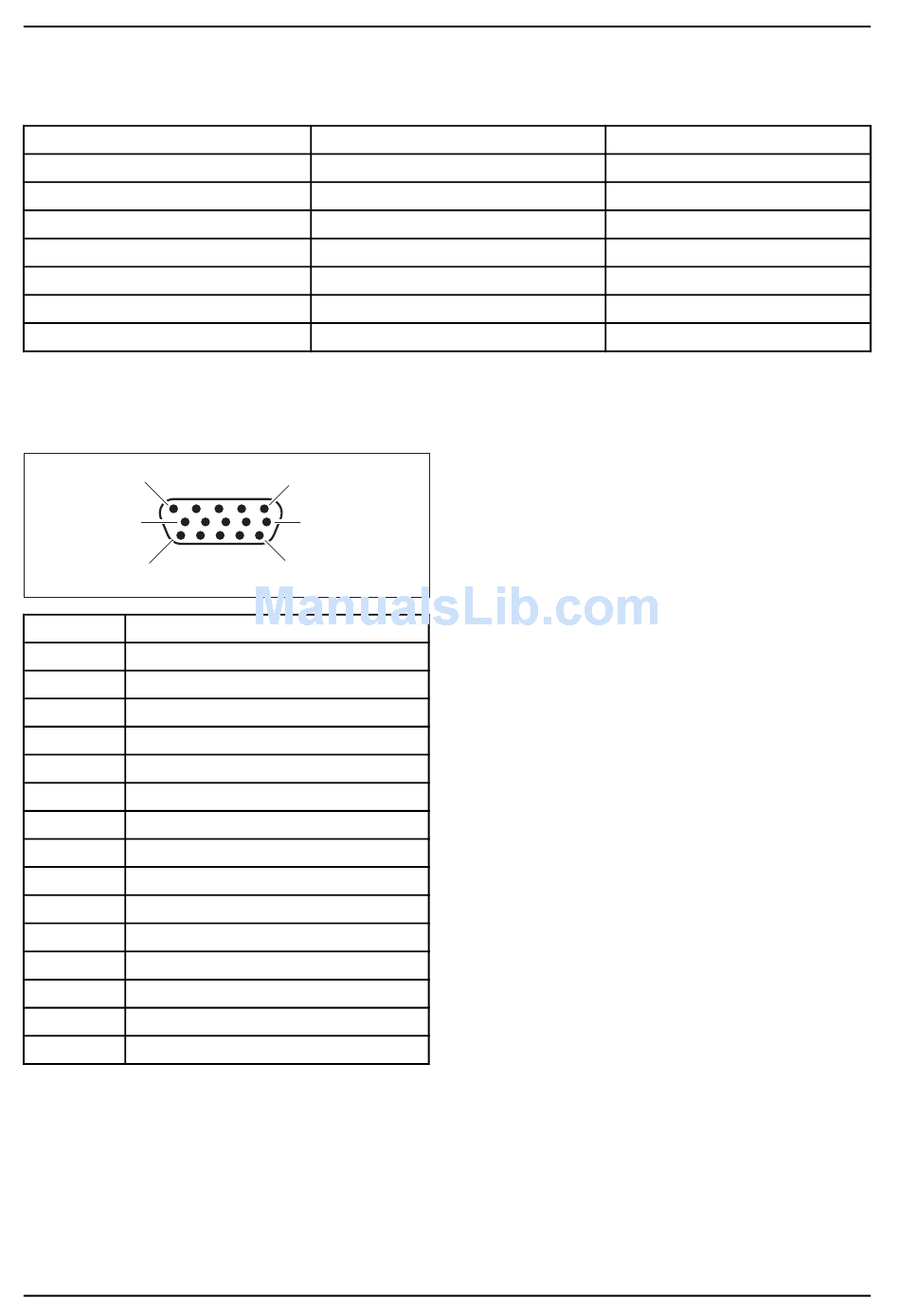

Technical specification
Video/TV operating modes via Displayport
Screen resolution
720 x 480 i
720 x 480 p
720 x 576 i
720 x 576 p
1280 x 720 p
1920 x 1080 i
1920 x 1080 p
SUB D port
5
10
15
Pin
Meaning
1
Video input red
2
Video input green
3
Video input blue
4
Ground
5
Ground
6
Video ground red
7
Video ground green
8
Video ground blue
9
+5 V (DDC)
10
Sync. ground
11
Ground
12
DDC Data
13
H. sync
14
V. sync
15
DDC Clock
44
Refresh rate
60 Hz
60 Hz
50 Hz
50 Hz
50 / 60 Hz
50 / 60 Hz
50 / 60 Hz
1
6
11
Aspect ratio
4:3 / 16:9
4:3 / 16:9
4:3 / 16:9
4:3 / 16:9
16:9
16:9
16:9
