Mounting The Monitor Base; Adjusting Height; Adjusting The Inclination - Fujitsu P24-9 TE Operating Manual

Getting started

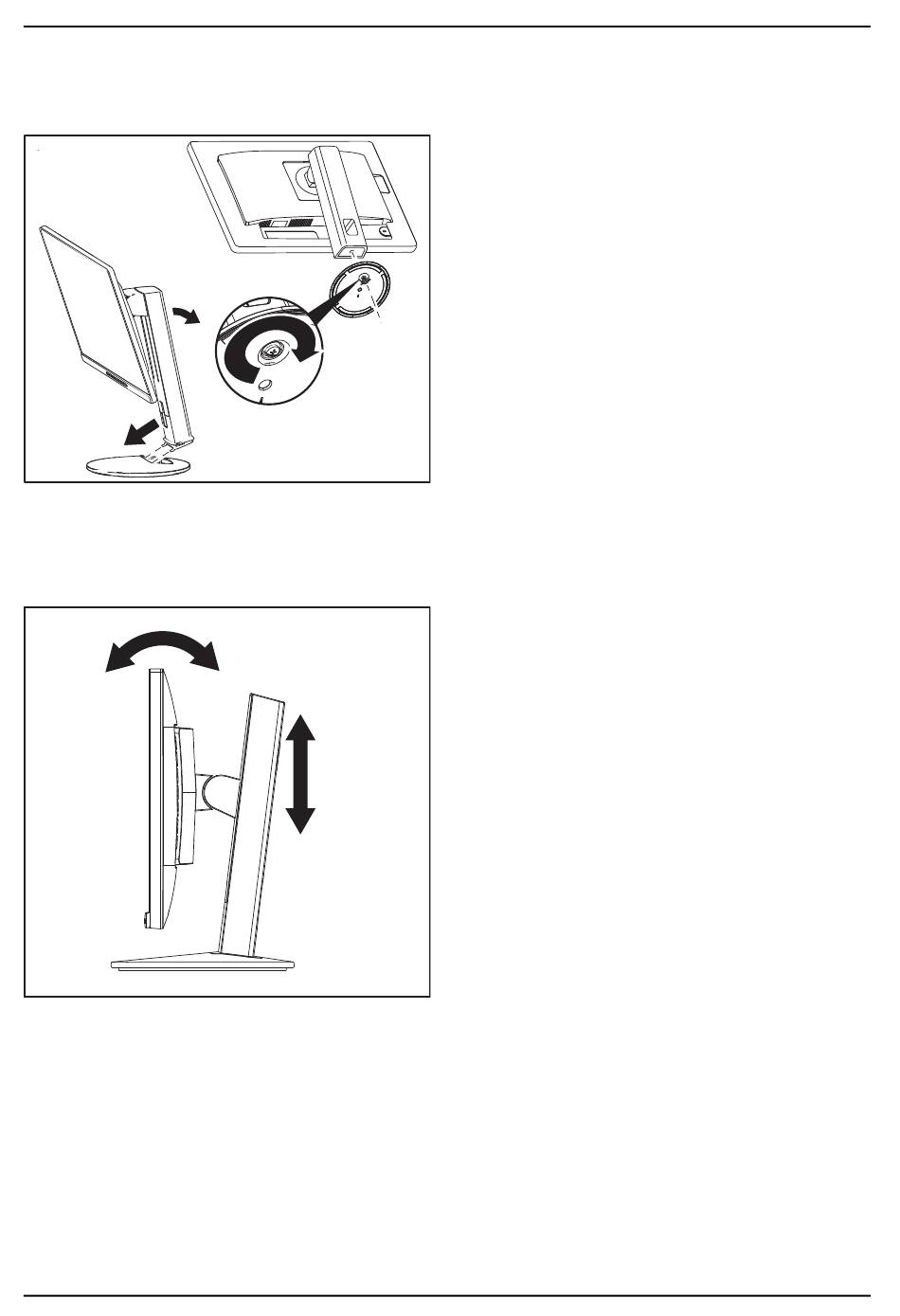

Mounting the monitor base

2
1

Adjusting height

The height of the monitor can be adjusted by approximately 150 mm.

Adjusting the inclination

The inclination of the monitor can be adjusted by -3° (forwards) and +35°
(backwards) from its vertical position.
► Hold the monitor with both hands on the left and right sides of the casing
and move it to the desired angle.
14
► Insert the base plate at the foot (1 and 2).
► Secure the base plate with the screw (3).
► Place the monitor in the operating position.
3
4
► Hold the monitor with both hands on
1
the right and left edge of the casing
and move it up or down (1).
