Getting started

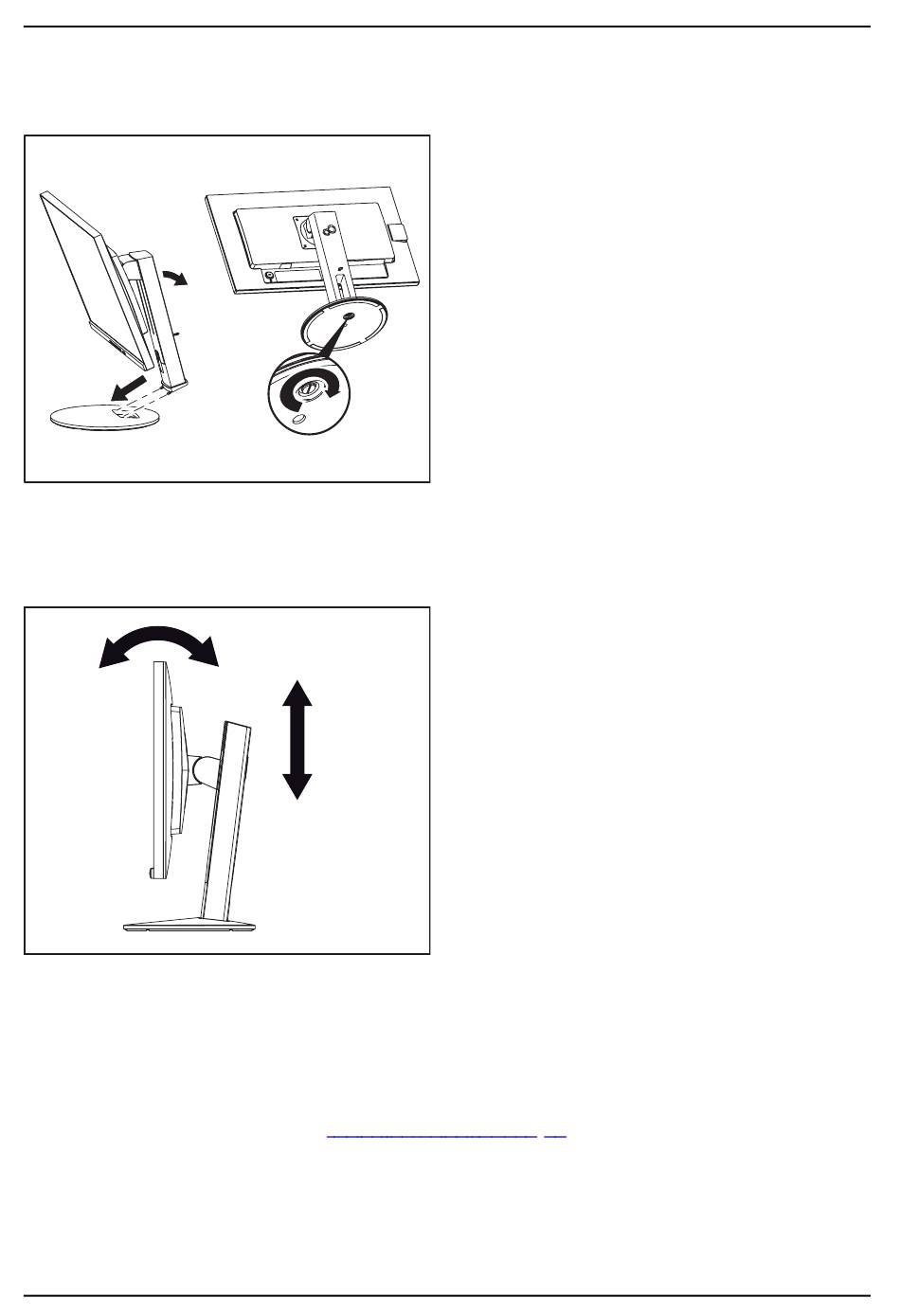

Mounting the monitor base

2
1

Adjusting height

The height of the monitor can be adjusted by approximately 150 mm.
2

Adjusting the inclination

The inclination of the monitor can be adjusted by -3° (forwards) and +35°
(backwards) from its vertical position.
► Hold the monitor with both hands on the left and right sides of the case and move
it to the desired angle (2, see
14
3
1
"Adjusting height", Page
► Insert the base plate at the foot (1 and 2).
► Secure the base plate with the screw (3).
► Place the monitor in the operating position.
► Hold the monitor with both hands on
the right and left edge of the casing
and move it up or down (1).
14).
