Hydac CS 1000 Series Operating And Maintenance Instructions Manual

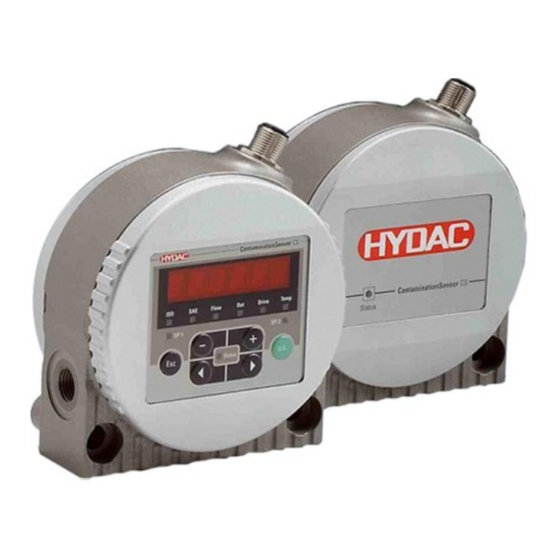

Contamination sensor
Hide thumbs Also See for CS 1000 Series:
Table of Contents

Advertisement

Quick Links

See also: Operating and Maintenance Instructions Manual

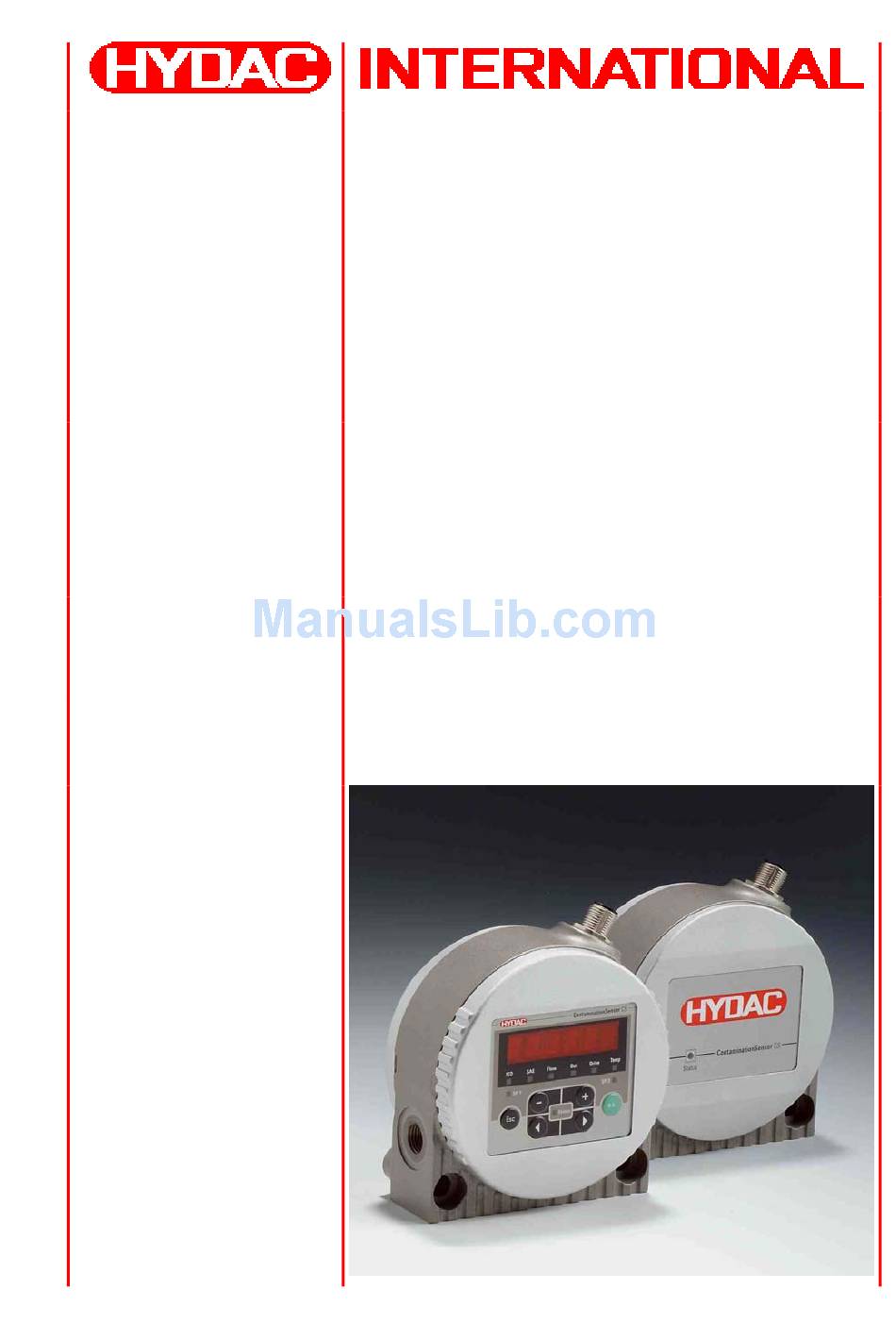

CS 1000 Series
ContaminationSensor
Operating and maintenance instructions CS 1000 &
Operation manual CoCoS 1000
English
Valid for firmware version V 1.28
Doc.: 3247149k / 2006-03-15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS 1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hydac CS 1000 Series

Summary of Contents for Hydac CS 1000 Series

  • Page 1 CS 1000 Series ContaminationSensor Operating and maintenance instructions CS 1000 & Operation manual CoCoS 1000 English Valid for firmware version V 1.28 Doc.: 3247149k / 2006-03-15...
  • Page 3 Filtertechnik. Contraventions are ce soit, sans l’autorisation écrite Genehmigung HYDAC liable to compensation. expresse de HYDAC Filtertechnik. Filtertechnik nicht erlaubt. Le manquement à cette condition Zuwiderhandlungen verpflichten zu donnera lieu à des dommages - Schadenersatz. intérêts.
  • Page 4 HYDAC escrito de HYDAC Filtertechnik. HYDAC Filtertechnik. Filtertechnik. violazioni Toda cF responsabilidad Överträdelse medför straffansvar.

  • Page 5: Table Of Contents

    6.3.1 Selection Guidelines for a Measurement Point..........21 ν ∆ 6.3.2 Flow Rate Q, differential pressure and viscosity characteristics ..22 6.3.3 Connect the CS to your system as follows: ............ 23 HYDAC Filtertechnik GmbH Page 1 BeWa CS1000 3247149k en.doc 2006-02-24...
  • Page 6 ISO Classes ......................45 9.2.1 ISO Signal Table..................... 45 ISO 4 / ISO 6 / ISO 14 9.2.2 ISO 4 / ISO 6 / ISO 14 ( ) ....... 46 HYDAC Filtertechnik GmbH Page 2 BeWa CS1000 3247149k en.doc 2006-02-24...
  • Page 7 17 Factory default settings / Basic settings ............... 71 17.1 Power Up menu....................71 17.2 Measuring menu....................71 18 Technical data ......................72 19 Service ........................73 20 Model code ....................... 74 HYDAC Filtertechnik GmbH Page 3 BeWa CS1000 3247149k en.doc 2006-02-24...
  • Page 8 Contents HYDAC Filtertechnik GmbH Page 4 BeWa CS1000 3247149k en.doc 2006-02-24...
  • Page 9 If you discover errors while reading the documentation or have suggestions or other useful information, please don’t hesitate to contact us: HYDAC Filtertechnik GmbH Dept.: SFVI, Techn. Documentation P. O. Box 1251 66273 Sulzbach / Saar, Germany Fax: ++49 (0) 6897 509 846 Email: filtersysteme@hydac.com...

  • Page 10: Customer Service

    When making modifications or performing repair work to components affecting the safety of the product, the product may not be put back into operation until it has been examined and released by a HYDAC representative. Please notify us immediately of any modifications made to the product whether by you or a third party.
  • Page 11 Please note that the method described above of locating specific information does not release you from carefully reading the entire manual prior to starting the unit up for the first time and carefully rereading the manual at regular intervals later on. HYDAC Filtertechnik GmbH Page 7 en Vorwort.doc 2006-01-06...

  • Page 12: General Safety Precautions

    • improperly performed repair work Explanation of Symbols and Warnings, etc. The following designations and symbols are used in this manual to designate hazards, etc.: HYDAC Filtertechnik GmbH Page 8 BeWa CS1000 3247149k en.doc 2004-07-12...

  • Page 13: Basic Symbols

    (e.g. warning sign or padlock on the main switch). • When the product is supplied in partial consignments, the safety devices are to be applied by the operator as specified by law/pertinent regulations. HYDAC Filtertechnik GmbH Page 9 BeWa CS1000 3247149k en.doc 2004-07-12...

  • Page 14: Informal Safety Precautions

    In the event of an emergency, immediately disconnect the CS from the power supply and from the hydraulic system! Properly dispose of any exiting fluid in accordance with environmental guidelines. HYDAC Filtertechnik GmbH Page 10 BeWa CS1000 3247149k en.doc 2004-07-12...

  • Page 15: Training And Instruction Of Personnel

    Any work involving the power supply may only be done by a properly trained, certified electrician. • Make sure to check the electrical equipment of the product on a regular basis. Any loose connections or damaged cables are to be remedied/replaced immediately. HYDAC Filtertechnik GmbH Page 11 BeWa CS1000 3247149k en.doc 2004-07-12...

  • Page 16: Maintenance, Servicing And Troubleshooting

    Do not make any modifications (design modifications, extensions) to the CS without the prior consent of the manufacturer. • Any design modifications or extensions may not be made without HYDAC Filtertechnik GmbH’s express prior written approval. • Immediately replace any machine components which are not in perfect condition.

  • Page 17: Transportation, Packing, Storage

    Any cleaning agents and flushing oils used are to be handled and disposed of properly. 2.2.1 Storage conditions Storage temperature: -40°C ... +80°C / -40°F ... + 176°F Relative humidity: max. 95%, non-condensing HYDAC Filtertechnik GmbH Page 13 BeWa CS1000 3247149k en.doc 2006-02-24...

  • Page 18: Model Code / Product Identification

    Line Definition Description Model Code Model Code CS1220-A-0-0-0-0/-000 According to the data sheet, see chapter 20 Serial No. Serial-No. max. INLET press.: Max. INLET pressure: 100 bar / 1450 psi HYDAC Filtertechnik GmbH Page 14 BeWa CS1000 3247149k en.doc 2006-03-14...

  • Page 19: Scope Of Delivery

    The CS comes with the following: Qty. Description 1 pc. ContaminationSensor, CS 1000 Series (Model according to order) - Flange connection model (Model code: CS1xxx-x-x-x-x-1/-xxx)comes with two o-rings. 1 pc. CD with: - PC-Software CoCos 1000 and - Operating and Maintenance Instructions (this document) 1 pc.

  • Page 20: Description

    Installation and Operation Description The CS 1000 Series Contamination Sensor is a stationary measurement unit for the continuous monitoring of particulate contamination in hydraulic and lubrication systems. The CS is designed for connection to low- or high-pressure hydraulic and lubrication lines and testbenches from which a small flow of oil (between 30 ml/min and 300 ml/min) is diverted for measurement purposes.

  • Page 21: Cs1X1X Dimensions (Without Display)

    Installation and Operation CS1x1x Dimensions (without Display) All dimensions in mm. CS1x2x Dimensions (with Display) All dimensions in mm. HYDAC Filtertechnik GmbH Page 17 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 22: Connection Types

    CS and a flange, mounting plate or manifold mount. Four M6 threads are prepared for mechanical mounting. Ports A and B are sealed off. Bottom view. All dimensions in mm. O-ring as spare part available, see Spare Parts. HYDAC Filtertechnik GmbH Page 18 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 23: Installation

    1. Wall mounting: using 2 cylindrical screws featuring an M8 hexagonal socket, minimum length: 40 mm, according to ISO4762. 2. Console mounting: using 4 cylindrical screws featuring an M6 hexagonal socket according to ISO4762. HYDAC Filtertechnik GmbH Page 19 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 24: Display Rotatable/Adjustable As Needed

    To rotate the display, grasp the cover plate with your hand. No tools may be used for rotating the display, in other words do not use excessive force to rotate it. HYDAC Filtertechnik GmbH Page 20 BeWa CS1000 3247149k en.doc...

  • Page 25: Hydraulic Installation

    (formation of particle deposits) in the inlet line and achieve immediate, i.e. not time-delayed, results. to CS Mainflow Mainflow Mainflow Mainflow to CS WRONG While installing the measurement line, make sure that no "siphon trap" is created. WRONG HYDAC Filtertechnik GmbH Page 21 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 26: Flow Rate Q, Differential Pressure

    46 mm²/s at a differential pressure of 1 bar, so that you achieve a flow rate of approx. 100 ml/min. ∆ The flow rate corresponds to the viscosity of the medium and the differential pressure HYDAC Filtertechnik GmbH Page 22 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 27: Connect The Cs To Your System As Follows

    Oil starts to flow through the CS as soon as it has been connected to the pressure fitting. This is why it is necessary that connection be done in the sequence specified above. The hydraulic installation of the CS is now complete. HYDAC Filtertechnik GmbH Page 23 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 28: Electrical Installation

    Analog out + (active) Green GND supply voltage Yellow GND analog out / Switch out Grey Not to be connected Pink RS485 + Blue RS485 - Switch out (passive, n.o.) case Shield HYDAC Filtertechnik GmbH Page 24 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 29: Typical Wiring Diagram

    To prevent a ground loop, connect the shield of the connector cable if and only if the CS1000 is not grounded or not sufficiently connected to the protective earth (PE) conductor. HYDAC Filtertechnik GmbH Page 25 BeWa CS1000 3247149k en.doc...

  • Page 30: Description Of The Measuring Modes

    Establish reservoir cleanliness between min/max levels Function: Control of a filter unit, continuous measurement of solid contamination, if pre-programmed min/max levels are exceeded, the pump is switched on/off to keep cleanliness within range HYDAC Filtertechnik GmbH Page 26 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 31: Mode M5: "Single" Measurement

    Mode M5: "SINGLE" measurement Application: Stand-alone sensor Active data outputs: Display & RS485 & analog output Purpose: Perform a single measurement only Function: Single measurement of solid contamination, without any switching functions HYDAC Filtertechnik GmbH Page 27 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 32: Operation

    Installation and Operation 8 Operation After the CS 1000 is switched on "HYDAC CS 1000" appears in the display in moving letters, followed by the firmware version being displayed for 2 seconds. WAIT99 WAIT0 This is followed by a countdown: ->...

  • Page 33: Key Lock

    The following appears in the Description keys display (1 sec) LOCK Key Lock is activated UNLOCK Key Lock is deactivated The display switches to the preset display after 1 second. HYDAC Filtertechnik GmbH Page 29 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 34: Modes And Menus

    For internal use only CODE Select measuring Description MODE mode Measure continuously Measure continuously and switch Filter down to contamination level and stop Filter to establish contamination levels continuously SINGLE single measurement HYDAC Filtertechnik GmbH Page 30 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 35: Measuring Menu

    CANCEL Scroll to and press Exit menu without saving changes Happens automatically after 30 s when there is no action Exit menu and save changes SAVE Scroll to and press HYDAC Filtertechnik GmbH Page 31 BeWa CS1000 3247149k en.doc 2006-04-06...
  • Page 36 Measure continuously Measure continuously and switch Filter down to contamination level and stop Filter to establish contamination levels continuously SINGLE Perform single measurement + stop Measure continuously NO SET HYDAC Filtertechnik GmbH Page 32 BeWa CS1000 3247149k en.doc 2006-04-06...
  • Page 37 SAE D SwFNCT Switching function BEYOND BELOW WITHIN OUTSDE LIMITS Limits LOWER UPPER Filter down to Description contamination level and stop MEAsCH ISO Code SAE Class TARGET Target contamina- tion level HYDAC Filtertechnik GmbH Page 33 BeWa CS1000 3247149k en.doc 2006-04-06...
  • Page 38 ISO 14 code ISO 3-digit (Code) ISO+T ISO 3-digit + temp. (Code) SAE A SAE class A SAE B SAE class B SAE C SAE class C SAE D SAE class D HYDAC Filtertechnik GmbH Page 34 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 39: Description Of The Switching Output In The Measuring Modes

    If pre-programmed min/max levels are exceeded, the pump is switched on/off to keep cleanliness within range. Mode M5: Single measurement Function: Single measurement of solid contamination, without any switching functions HYDAC Filtertechnik GmbH Page 35 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 40: Switching Behavior Of The Switching Output

    After switching the unit on or starting a measurement Outside band a value ≥ respective upper limit Opens again when the respective lower limit < all values < upper limit Always open No switching HYDAC Filtertechnik GmbH Page 36 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 41: Analog Output ( Anaout )

    SAE A / SAE B / SAE C / SAE D Only one value is output (see section 9.1.4). • SAE + T All values are sequentially output time-coded (see section 9.1.5). HYDAC Filtertechnik GmbH Page 37 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 42: Sae Signal Table

    19.7 mA < I < 19.8 mA 9.85 V < U < 9.90 V No measured value 19.8 mA < I < 20 mA 9.90 V < U < 10 V HYDAC Filtertechnik GmbH Page 38 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 43: Sae A-D ( Saemax )

    SAE Class A / B / C / D ( The SAE class A/B/C/D measured value consists of 4 measured values coded with the following time slices (also shown in the following diagram): 9.1.3.1 Time-coded signal HYDAC Filtertechnik GmbH Page 39 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 44: 4 - 20 Ma Signal

    Current for measured value (see Table 9.1.1) Identifier 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 Measured value 3000 Current for measured value (see Table 9.1.1) HYDAC Filtertechnik GmbH Page 40 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 45: 0 - 10 V Signal

    Voltage for measured value (see Table 9.1.1) Identifier 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 Measured value 3000 Voltage for measured value (see Table 9.1.1) HYDAC Filtertechnik GmbH Page 41 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 46: Sae A / Sae B / Sae C / Sae D

    The SAE x setting enables the value of a class to be continuously output via the analog output. SAE+T 9.1.5 SAE + T ( The SAE+T signal consists of 5 measured values which are transmitted time-coded with the following time slices: HYDAC Filtertechnik GmbH Page 42 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 47: Time Coded Signal

    Identifier 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 3000 Current for measured value (see Table 9.1.1) Measured value HYDAC Filtertechnik GmbH Page 43 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 48: 0 - 10 V Signal

    Identifier 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 Measured value 3000 Voltage for measured value (see Table 9.1.1) HYDAC Filtertechnik GmbH Page 44 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 49: Iso Classes

    I = 13.34 mA ISO 15 U = 6.67 V I = 13.91 mA ISO 16 U = 6.96 V I = 14.48 mA ISO 17 U = 7.24 V HYDAC Filtertechnik GmbH Page 45 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 50: Iso 4 / Iso 6 / Iso 14

    The ISO code signal consists of 3 measured values (> 4 µm / > 6 µm /> 14 µm ) and is time-coded with the following time slices. 9.2.3.1 Time-coded Signal HYDAC Filtertechnik GmbH Page 46 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 51: 4 - 20 Ma Signal

    Current for measured value (see Table 9.2.1) Identifier >14µm 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 Measured value >14µm 3000 Current for measured value (see Table 9.2.1) HYDAC Filtertechnik GmbH Page 47 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 52: 0 - 10 V Signal

    Voltage for measured value (s. Table 9.2.1) ISO+T 9.2.4 ISO + T ( The ISO+T signal consists of 4 measured values which are transmitted time-coded with the following time slices: 9.2.4.1 Time-coded Signal HYDAC Filtertechnik GmbH Page 48 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 53: 4 - 20 Ma Signal

    Current for measured value (see Table 9.2.1) Identifier 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 / 19.2 / 4.8 19.2 / 4.8 Measured value 3000 Current for measured value (see Table 9.2.1) HYDAC Filtertechnik GmbH Page 49 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 54: 0 - 10 V Signal

    Identifier 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 Measured value 3000 Voltage for measured value (s. Table 9.2.1) HYDAC Filtertechnik GmbH Page 50 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 55: Fluid Temperature ( Temp )

    U = 8.45 V I = 17.47 mA +85 °C / 185 °F U = 8.74 V I = 18.05 mA +90 °C / 194 °F U = 9.02 V HYDAC Filtertechnik GmbH Page 51 BeWa CS1000 3247149k en.doc 2006-04-06...
  • Page 56 Temperature [°F]= ((I - 4.8 mA)*(225 / 14.4 mA)) - 13 Temperature [°C]= ((U - 2.4 V)*(125 / 7.2 V)) - 25 Temperature [°F]= ((U - 2.4 V)*(225 / 7.2 V)) - 13 HYDAC Filtertechnik GmbH Page 52 BeWa CS1000 3247149k en.doc...

  • Page 57: Rs-485 Interface

    The length of the bus line and the size of the terminating resistance are depending on the quality of cable used. The graphic below shows several CS 1000 connected via the RS-485 interface and then connected in turn to a PC. HYDAC Filtertechnik GmbH Page 53 BeWa CS1000 3247149k en.doc 2006-04-06...

  • Page 58: Condition Sensor Interface (Csi-D-5)

    CD with PC-Software package CoCoS 1000 and Operation and Maintenance Instructions CS 1000 & CoCoS 1000 11.2 CSI-D-5 Connection schematic The CSI-D-5 has to be connected according to the following schematic. HYDAC Filtertechnik GmbH Page 54 BeWa CS1000 3247149k en.doc 2006-02-14...

  • Page 59: Power Adaptor Set-Up

    Check output voltage at 12 Volt. If not, set to 12. Check the arrows of the plug and socket as shown. The "+" symbol must be connected to the inner contact of the plug. If not, reverse the plug. HYDAC Filtertechnik GmbH Page 55 BeWa CS1000 3247149k en.doc 2006-02-14...

  • Page 60: Contamination Control Software 1000 (Cocos 1000)

    If you do not have a driver installed, your PC will ask you to insert a driver CD. The CoCoS 1000 setup makes a note of the USB port during installation. Installation may have to be repeated if you use different USB port later on. HYDAC Filtertechnik GmbH Page 56 BeWa CS1000 3247149k en.doc...
  • Page 61 If installation is successful, you will find the driver with the corresponding COM port no. in your device manager. Locate the COM port no. You now have to run CoCoS 1000. HYDAC Filtertechnik GmbH Page 57 BeWa CS1000 3247149k en.doc...

  • Page 62: Installing Cocos 1000

    CS, which should be installed automatically with ONTS the software. 3) To install the software, run SETUP The following screens will appear during installation. HYDAC Filtertechnik GmbH Page 58 BeWa CS1000 3247149k en.doc 2006-03-14...
  • Page 63 CoCoS 1000 Press Select your installation path and then press HYDAC Filtertechnik GmbH Page 59 BeWa CS1000 3247149k en.doc 2006-03-14...
  • Page 64 CoCoS 1000 Press Wait until installation is completed. Now press HYDAC Filtertechnik GmbH Page 60 BeWa CS1000 3247149k en.doc 2006-03-14...

  • Page 65: Using Cocos 1000

    D-5 and insert the power adaptor in the AC line (see section 11.2) 1) To launch CoCoS1000, run CoCoS1000.exe in the installation folder. 2) After launching the software, the serial port has to be set first. HYDAC Filtertechnik GmbH Page 61 BeWa CS1000 3247149k en.doc...
  • Page 66 5 to your PC and the power adaptor is inserted in the AC line. Press This screenshot shows a virtual CS 1000 front panel. Its appearance and handling is similar to a real CS 1000 with the display option (see section 8.1). HYDAC Filtertechnik GmbH Page 62 BeWa CS1000 3247149k en.doc 2006-03-14...
  • Page 67 Exits the program In the event of an error (see also section 16) the status LED is continuously red (no blinking code) and the error code is shown below the keypad. HYDAC Filtertechnik GmbH Page 63 BeWa CS1000 3247149k en.doc...

  • Page 68: Save Results Online

    The following data is stored. Values are separated by tabs. Year Month Hours Temp Flow Drive 4µm 6µm 14µm 2005 26.7 2005 26.7 2005 26.7 2005 26.7 2005 26.7 The save procedure can be stopped by pressing Stop Saving. HYDAC Filtertechnik GmbH Page 64 BeWa CS1000 3247149k en.doc 2006-03-14...

  • Page 69: Troubleshooting

    If the display shows different characters, the CS font has to be installed manually. • The typeface CS 1000-Liteon Standard (CS 1000-Liteon.ttf) is installed under Control Panel → Fonts. When asked, press to overwrite the TFF file already installed. HYDAC Filtertechnik GmbH Page 65 BeWa CS1000 3247149k en.doc 2006-03-14...

  • Page 70: Removing The Cs From The Hydraulic System

    CD with - PC-Software package CoCoS 1000 and 3251484 - Operation and Maintenance Instruction Contamination Sensor Interface CSI-D-5 3249563 O-ring for flange connection model (4,8x1,78 - 80 Shore FPM) 6003048 HYDAC Filtertechnik GmbH Page 66 BeWa CS1000 3247149k en.doc 2006-02-24...

  • Page 71: Iso 4406 And Sae As 4059 Classes

    250,000 250,000 500,000 500,000 1,000,000 1,000,000 2,000,000 2,000,000 4,000,000 4,000,000 8,000,000 8,000,000 16,000,000 1,000 16,000,000 32,000,000 1,000 2,000 32,000,000 64,000,000 2,000 4,000 64,000,000 130,000,000 4,000 8,000 130,000,000 250,000,000 8,000 16,000 HYDAC Filtertechnik GmbH Page 67 BeWa CS1000 3247149k en.doc 2005-10-12...

  • Page 72: Sae As 4059

    19,500 3,460 100,000 38,900 6,920 1,220 200,000 77,900 13,900 2,450 400,000 156,000 27,700 4,900 800,000 311,000 55,400 9,800 1,700 1,600,000 623,000 111,000 19,600 3,390 3,200,000 1,250,000 222,000 39,200 6,780 1,020 HYDAC Filtertechnik GmbH Page 68 BeWa CS1000 3247149k en.doc 2005-10-12...

  • Page 73: Status Led - Display / Error Codes

    Flow definition not Increase or reduce inlet possible pressure. 19,9 mA / 9,95 V open CHECK Flow definition not Check flow and fluid possible cleanness. 19,9 mA / 9,95 V open HYDAC Filtertechnik GmbH Page 69 BeWa CS1000 3247149k en.doc 2006-03-14...
  • Page 74 -40...-69 contact HYDAC Reset device (re-supply Error during automatic voltage to sensor, check adjustment flow or contact HYDAC Reset device (re-supply Error measuring cell LED voltage to sensor, check -100 flow or contact HYDAC HYDAC Filtertechnik GmbH Page 70 BeWa CS1000 3247149k en.doc...

  • Page 75: Factory Default Settings / Basic Settings

    MODE RELAY1 LIMITS UPPER 21.19.16 MODE MEASCH MODE TARGET 17.15.12 MODE MEASCH MODE TARGET 17.15.12 MODE RESTART 21.19.16 MODE CYCLE 17.2 Measuring menu Measuring Menu Value DSPLY SWtOUT ANaOUT SAeMAX HYDAC Filtertechnik GmbH Page 71 BeWa CS1000 3247149k en.doc 2006-03-14...

  • Page 76: Technical Data

    OUTLET: Thread G 1/4, ISO 228 Permissible measuring flow rate 30 ... 300 ml/min Permissible viscosity range 1 ... 1000 mm²/s Fluid temperature range 0° ... +85° C / 32° ... 185° F HYDAC Filtertechnik GmbH Page 72 BeWa CS1000 3247149k en.doc 2006-03-14...

  • Page 77: Service

    Switching Output passive, n-switching Power MOSFET: max. current 1,5 A, normally open RS-485 Interface 2 wire, half duplex HYDAC Single Wire interface For HMG 3000 use only Service Shipping Address for Recalibration and Repair Work HYDAC Servicenter GmbH Rehgrabenstrasse, Werk 7 66121 Saarbrücken, Germany...

  • Page 78: Model Code

    Tecnical Data / Model code Model code HYDAC Filtertechnik GmbH Page 74 BeWa CS1000 3247149k en.doc 2006-03-14...
