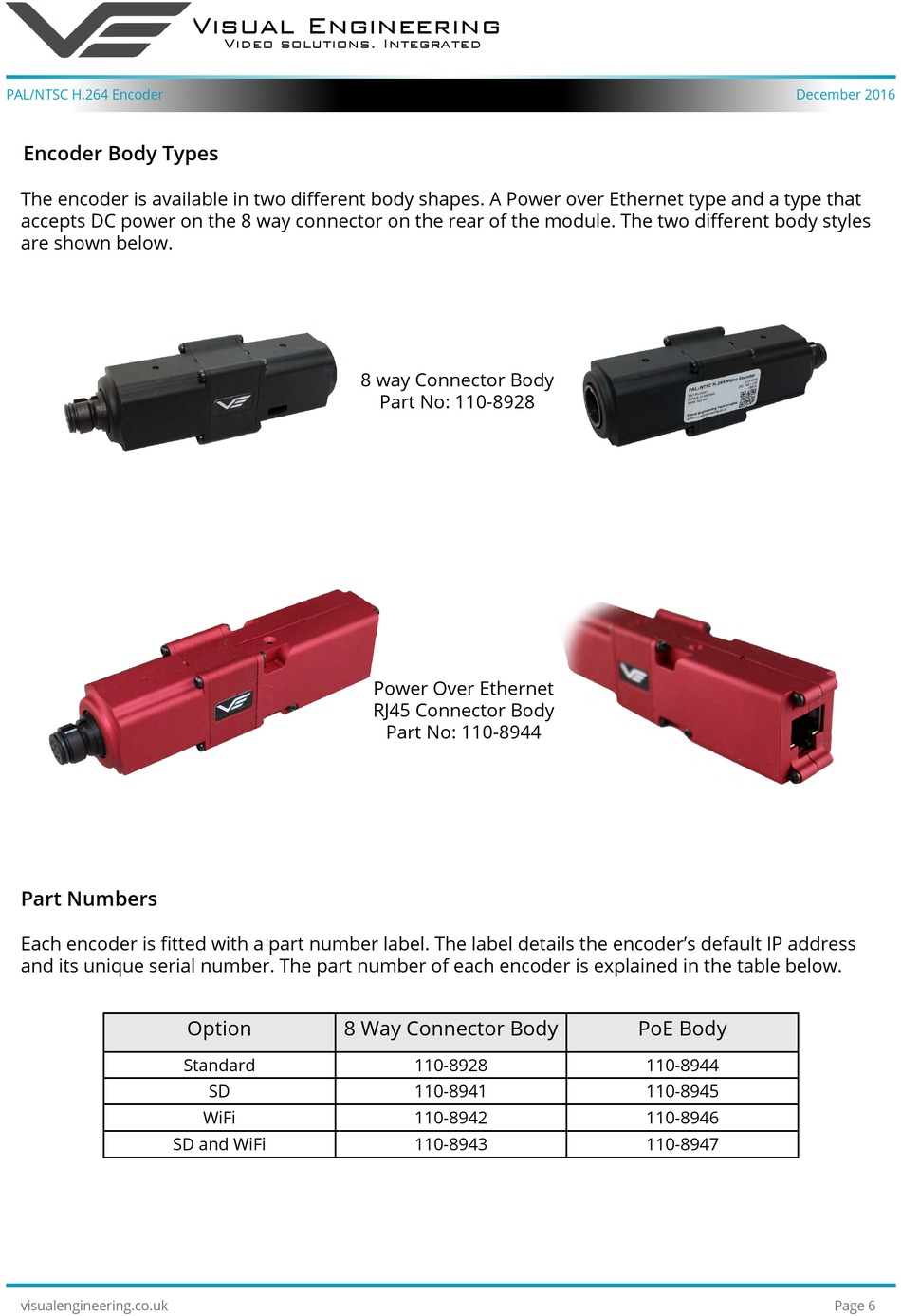

Encoder Body Types

The encoder is available in two different body shapes. A Power over Ethernet type and a type that
accepts DC power on the 8 way connector on the rear of the module. The two different body styles
are shown below.

Part Numbers

Each encoder is fitted with a part number label. The label details the encoder's default IP address
and its unique serial number. The part number of each encoder is explained in the table below.
SD and WiFi
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Option 8 Way Connector Body
Standard
SD
WiFi
8 way Connector Body
Part No: 110-8928
Power Over Ethernet
RJ45 Connector Body
Part No: 110-8944
110-8928
110-8941
110-8942
110-8943
December 2016
PoE Body
110-8944
110-8945
110-8946
110-8947
