PAL/NTSC H.264 Encoder

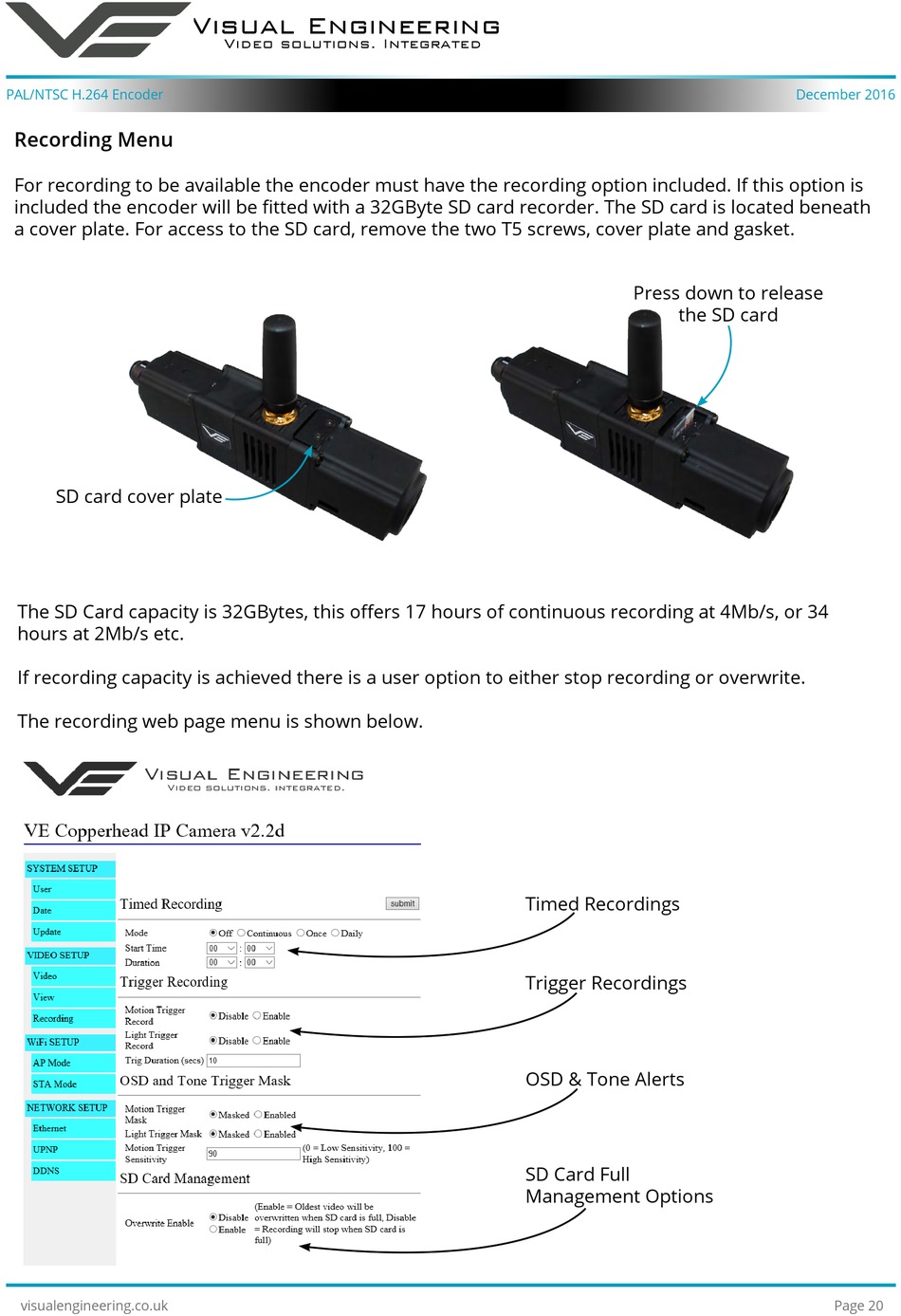

Recording Menu
For recording to be available the encoder must have the recording option included. If this option is
included the encoder will be fitted with a 32GByte SD card recorder. The SD card is located beneath
a cover plate. For access to the SD card, remove the two T5 screws, cover plate and gasket.
SD card cover plate
The SD Card capacity is 32GBytes, this offers 17 hours of continuous recording at 4Mb/s, or 34
hours at 2Mb/s etc.
If recording capacity is achieved there is a user option to either stop recording or overwrite.
The recording web page menu is shown below.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Press down to release
the SD card
Timed Recordings
Trigger Recordings
OSD & Tone Alerts
SD Card Full
Management Options
December 2016
Page 20
