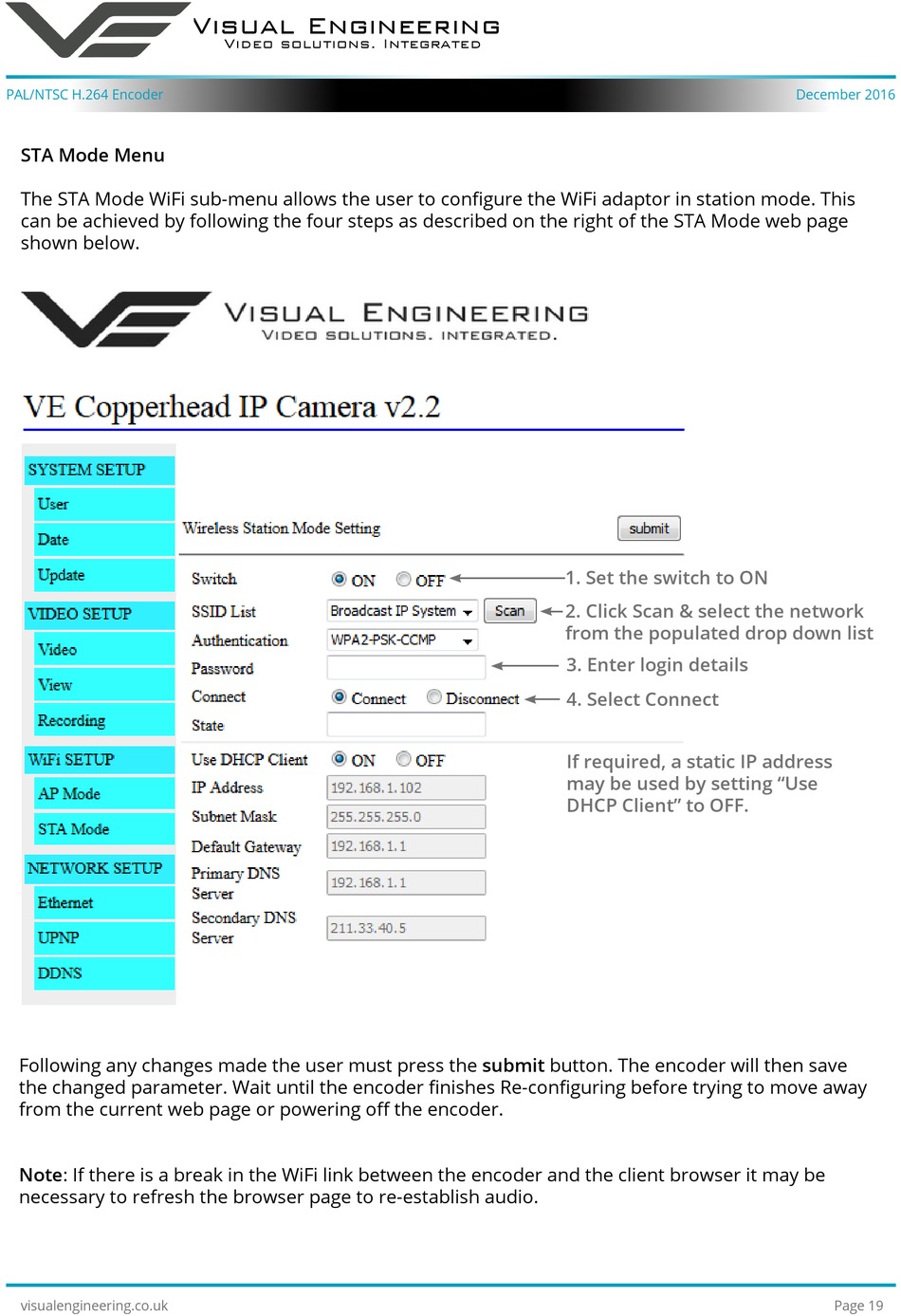

STA Mode Menu
The STA Mode WiFi sub-menu allows the user to configure the WiFi adaptor in station mode. This
can be achieved by following the four steps as described on the right of the STA Mode web page
shown below.
Following any changes made the user must press the submit button. The encoder will then save
the changed parameter. Wait until the encoder finishes Re-configuring before trying to move away
from the current web page or powering off the encoder.
Note: If there is a break in the WiFi link between the encoder and the client browser it may be
necessary to refresh the browser page to re-establish audio.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
1. Set the switch to ON
2. Click Scan & select the network
from the populated drop down list
3. Enter login details
4. Select Connect
If required, a static IP address
may be used by setting "Use
DHCP Client" to OFF.
