PAL/NTSC H.264 Encoder

Using FileZilla

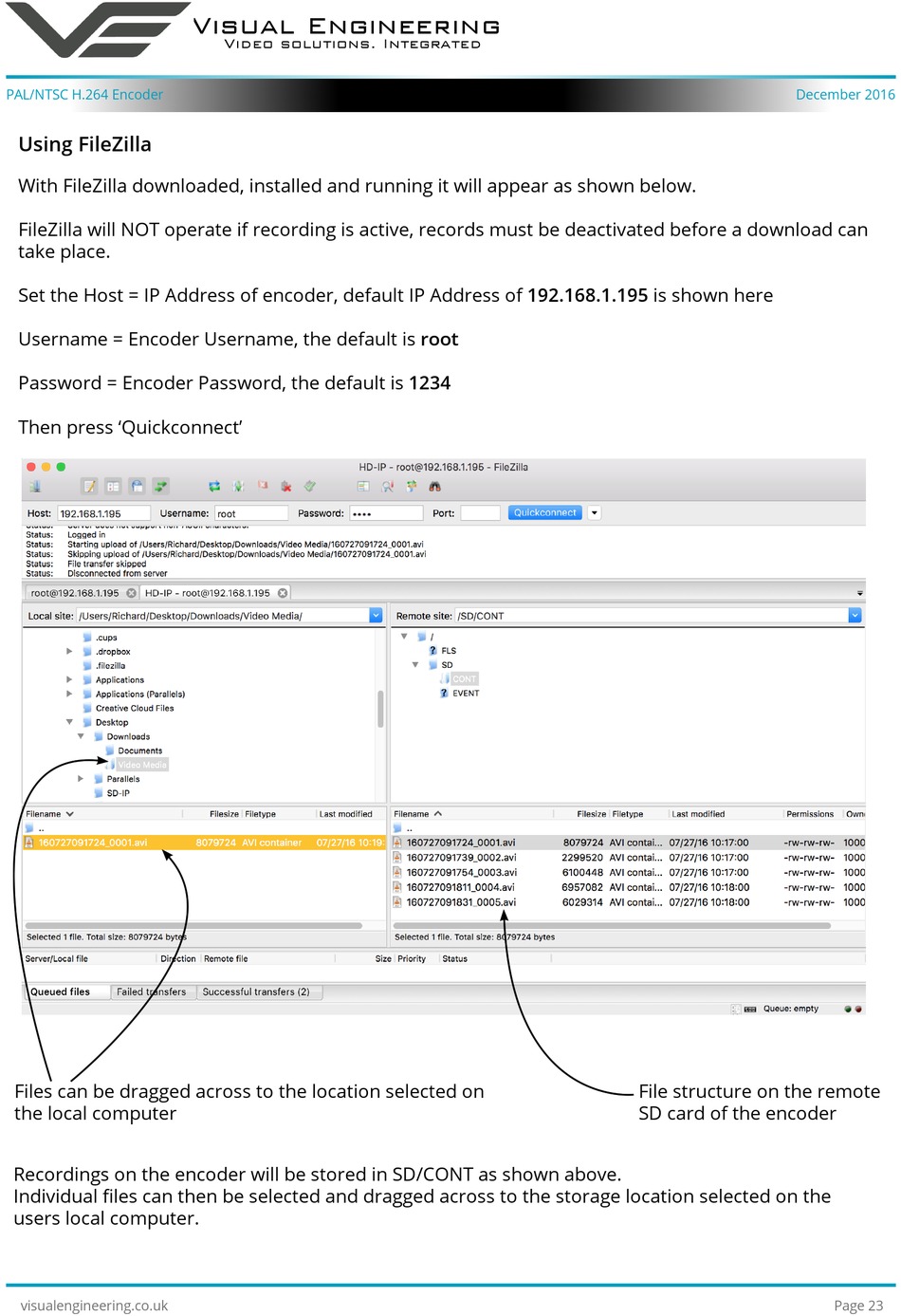

With FileZilla downloaded, installed and running it will appear as shown below.
FileZilla will NOT operate if recording is active, records must be deactivated before a download can
take place.
Set the Host = IP Address of encoder, default IP Address of 192.168.1.195 is shown here
Username = Encoder Username, the default is root
Password = Encoder Password, the default is 1234
Then press 'Quickconnect'
Files can be dragged across to the location selected on
the local computer
Recordings on the encoder will be stored in SD/CONT as shown above.
Individual files can then be selected and dragged across to the storage location selected on the
users local computer.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
December 2016
File structure on the remote
SD card of the encoder
Page 23
