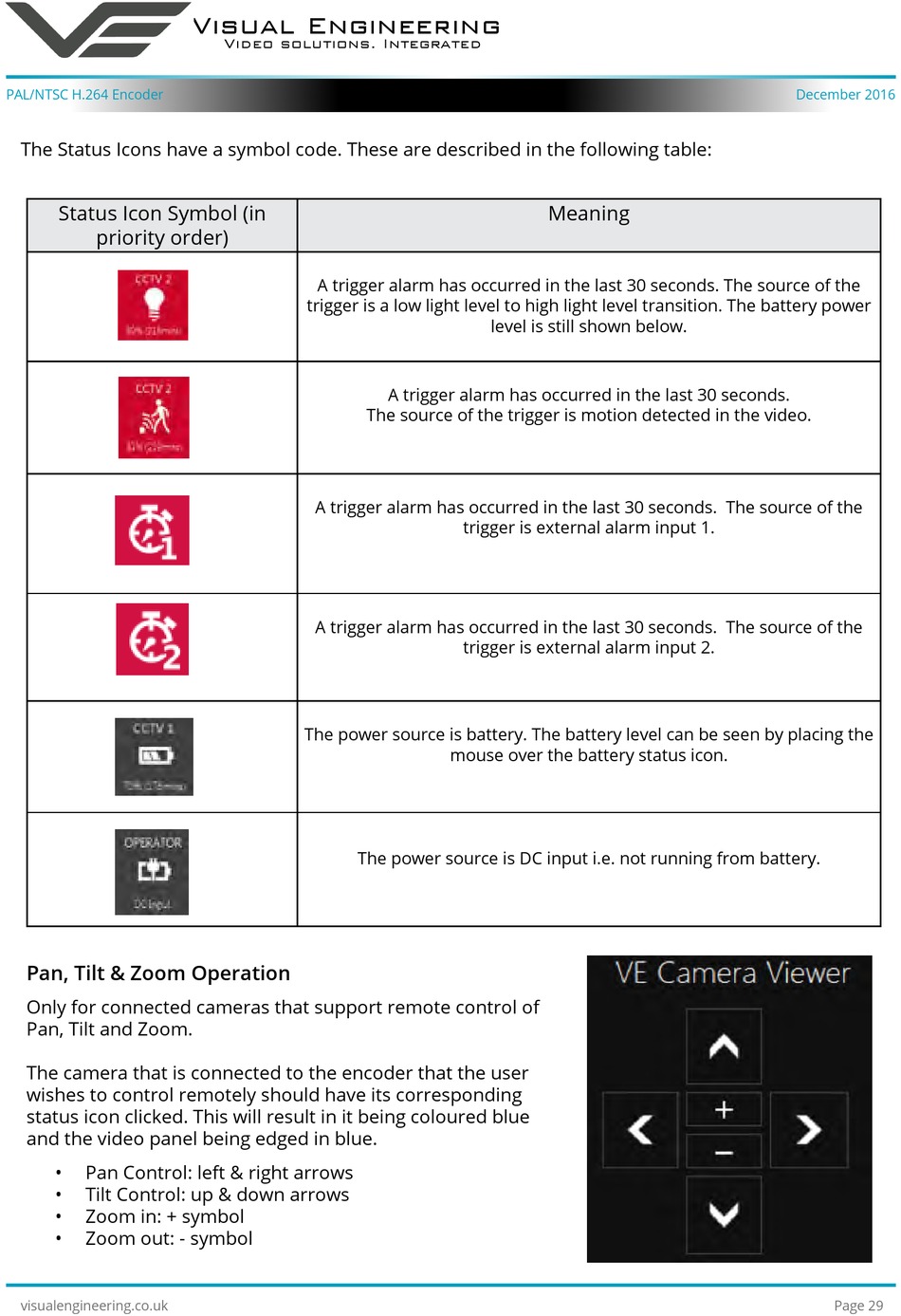

The Status Icons have a symbol code. These are described in the following table:
Status Icon Symbol (in
priority order)
Pan, Tilt & Zoom Operation
Only for connected cameras that support remote control of
Pan, Tilt and Zoom.
The camera that is connected to the encoder that the user
wishes to control remotely should have its corresponding
status icon clicked. This will result in it being coloured blue
and the video panel being edged in blue.
• Pan Control: left & right arrows
• Tilt Control: up & down arrows
• Zoom in: + symbol
• Zoom out: - symbol
