PAL/NTSC H.264 Encoder

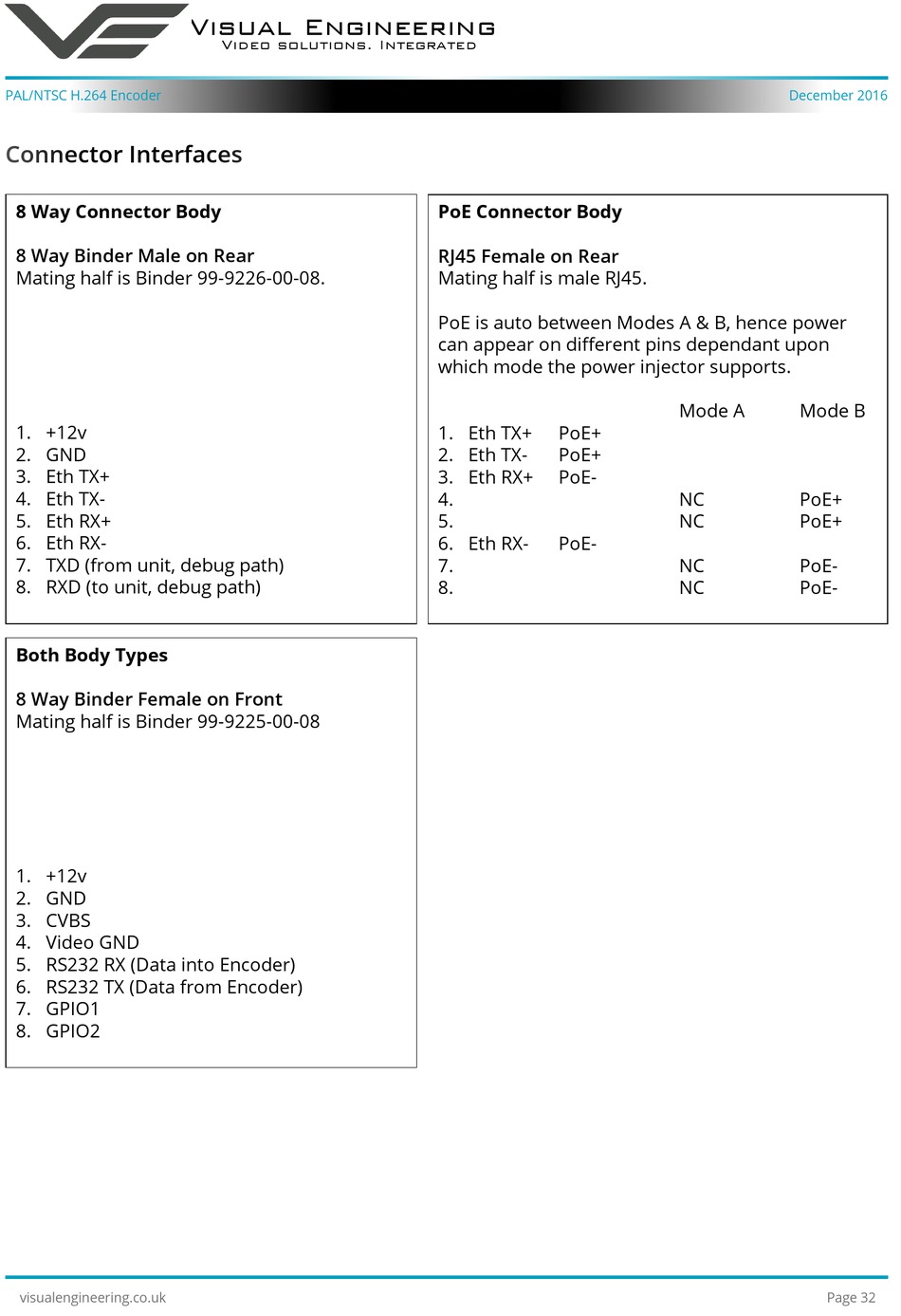

Connector Interfaces

8 Way Connector Body
8 Way Binder Male on Rear
Mating half is Binder 99-9226-00-08.
1. +12v
2. GND
3. Eth TX+
4. Eth TX-
5. Eth RX+
6. Eth RX-
7. TXD (from unit, debug path)
8. RXD (to unit, debug path)
Both Body Types
8 Way Binder Female on Front
Mating half is Binder 99-9225-00-08
1. +12v
2. GND
3. CVBS
4. Video GND
5. RS232 RX (Data into Encoder)
6. RS232 TX (Data from Encoder)
7. GPIO1
8. GPIO2
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
PoE Connector Body
RJ45 Female on Rear
Mating half is male RJ45.
PoE is auto between Modes A & B, hence power
can appear on different pins dependant upon
which mode the power injector supports.
1. Eth TX+ PoE+
2. Eth TX- PoE+
3. Eth RX+ PoE-
4.
5.
6. Eth RX- PoE-
7.
8.
December 2016
Mode A Mode B
NC PoE+
NC PoE+
NC PoE-
NC PoE-
Page 32
