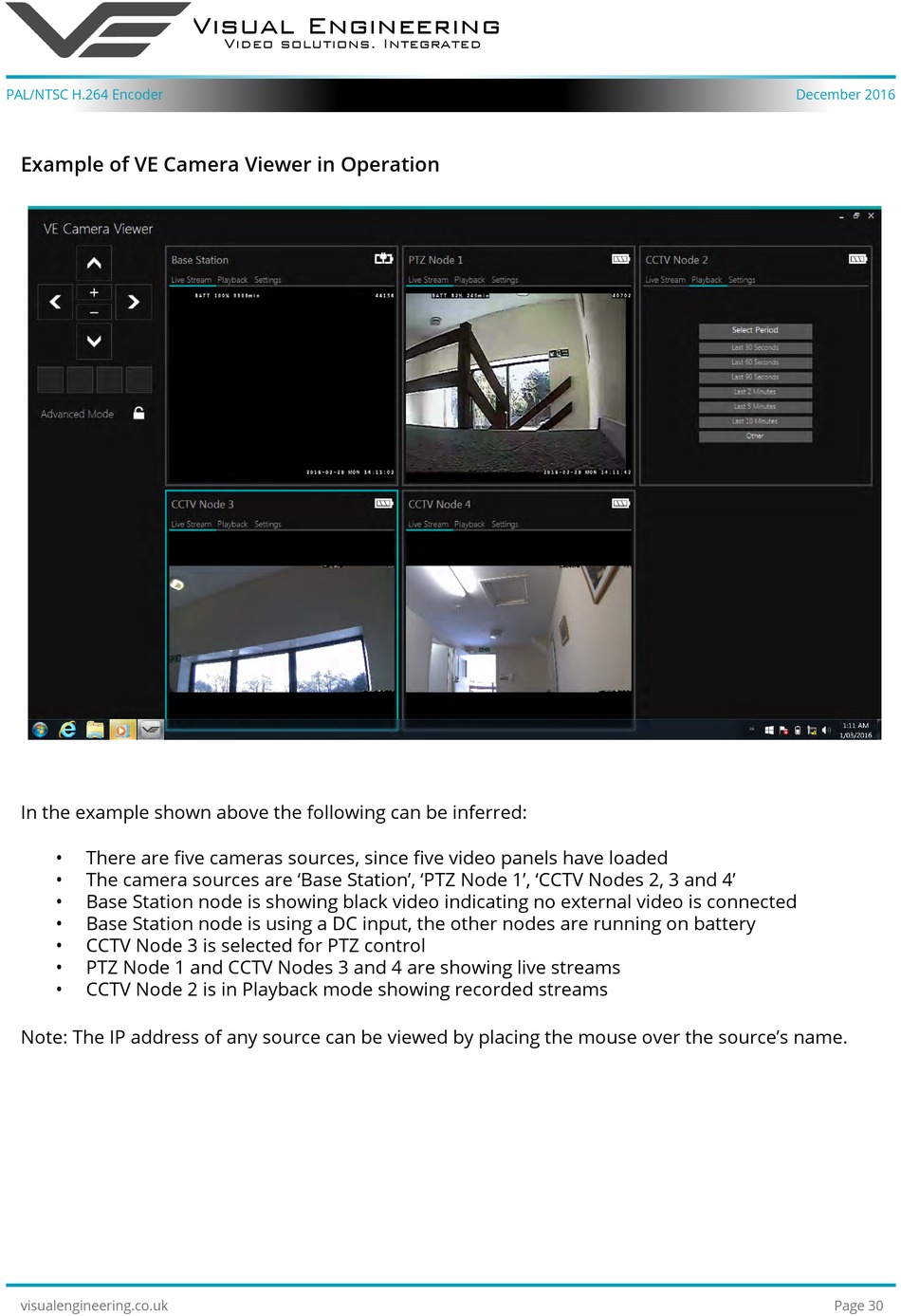

Example of VE Camera Viewer in Operation
In the example shown above the following can be inferred:
•
There are five cameras sources, since five video panels have loaded
•
The camera sources are 'Base Station', 'PTZ Node 1', 'CCTV Nodes 2, 3 and 4'
•
Base Station node is showing black video indicating no external video is connected
•
Base Station node is using a DC input, the other nodes are running on battery
•
CCTV Node 3 is selected for PTZ control
•
PTZ Node 1 and CCTV Nodes 3 and 4 are showing live streams
•
CCTV Node 2 is in Playback mode showing recorded streams
Note: The IP address of any source can be viewed by placing the mouse over the source's name.
