Camera Connections

The encoder is capable of decoding PAL or NTSC analogue video and encoding this together with
audio from the integral microphone into an IP stream. As such the encoder is compatible with
many different cameras.
For a PTZ camera solution a recommended pairing would be to use either the Visual Engineering's
SWZ or ATM camera modules. More information on these camera modules via our website:
www.visualengineering.co.uk
The encoder will seamlessly interface power, video and PTZ camera control with both of these
camera modules.

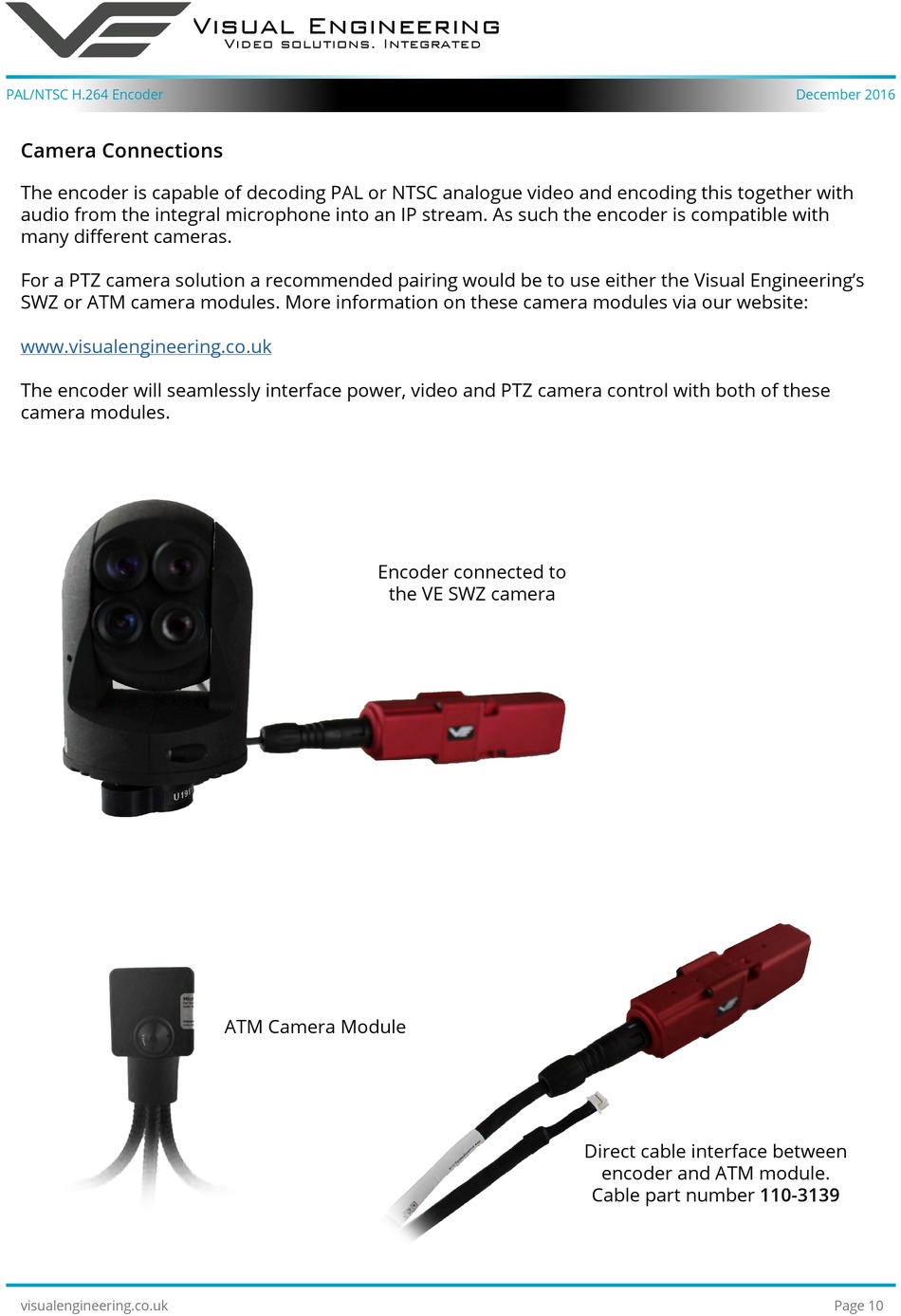

Encoder connected to
the VE SWZ camera
ATM Camera Module
Direct cable interface between
encoder and ATM module.
Cable part number 110-3139
