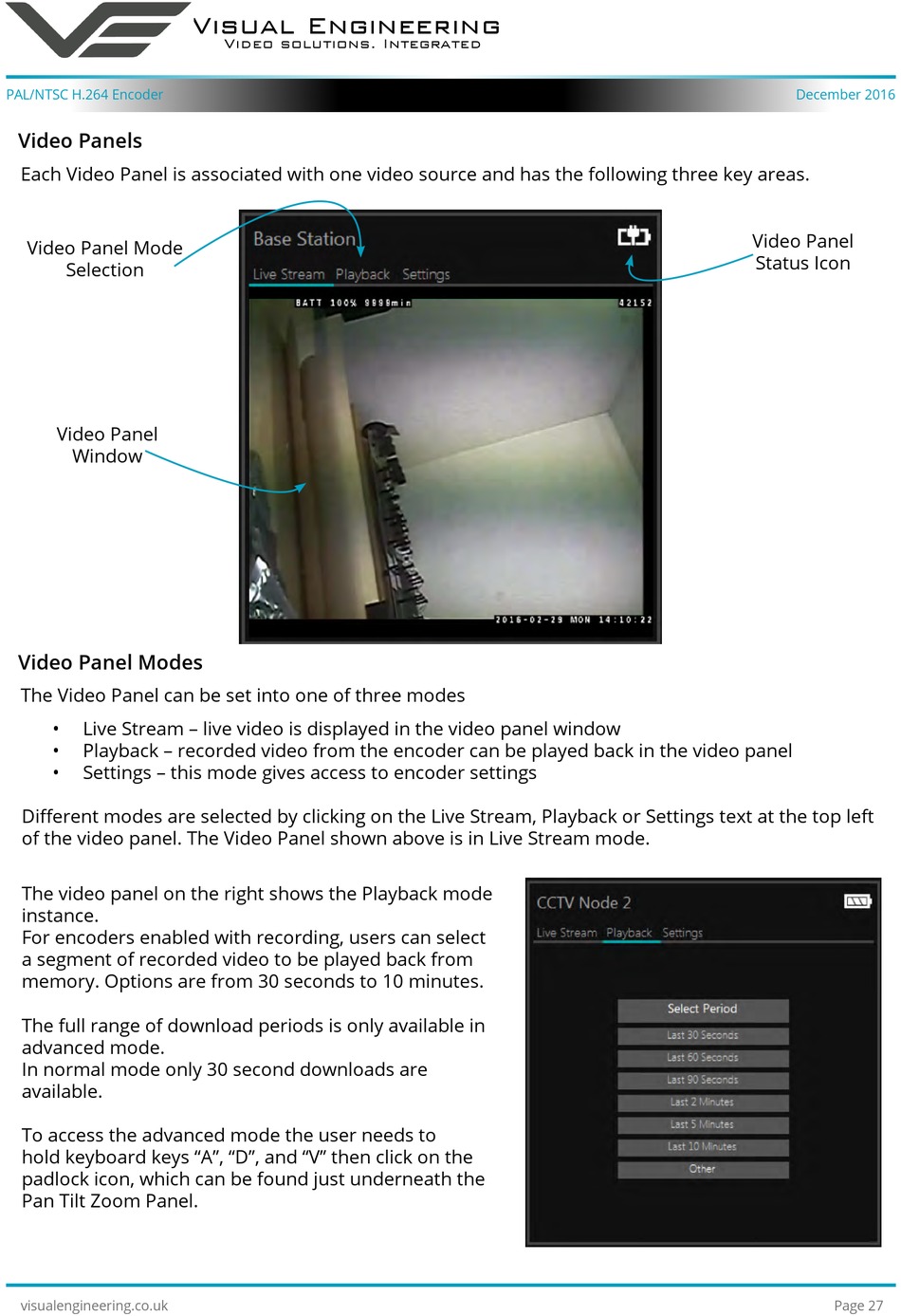

PAL/NTSC H.264 Encoder
Video Panels
Each Video Panel is associated with one video source and has the following three key areas.
Video Panel Mode
Selection
Video Panel
Window
Video Panel Modes
The Video Panel can be set into one of three modes
•
Live Stream – live video is displayed in the video panel window
•
Playback – recorded video from the encoder can be played back in the video panel
•
Settings – this mode gives access to encoder settings
Different modes are selected by clicking on the Live Stream, Playback or Settings text at the top left
of the video panel. The Video Panel shown above is in Live Stream mode.
The video panel on the right shows the Playback mode
instance.
For encoders enabled with recording, users can select
a segment of recorded video to be played back from
memory. Options are from 30 seconds to 10 minutes.
The full range of download periods is only available in
advanced mode.
In normal mode only 30 second downloads are
available.
To access the advanced mode the user needs to
hold keyboard keys "A", "D", and "V" then click on the
padlock icon, which can be found just underneath the
Pan Tilt Zoom Panel.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
December 2016
Video Panel
Status Icon
Page 27
