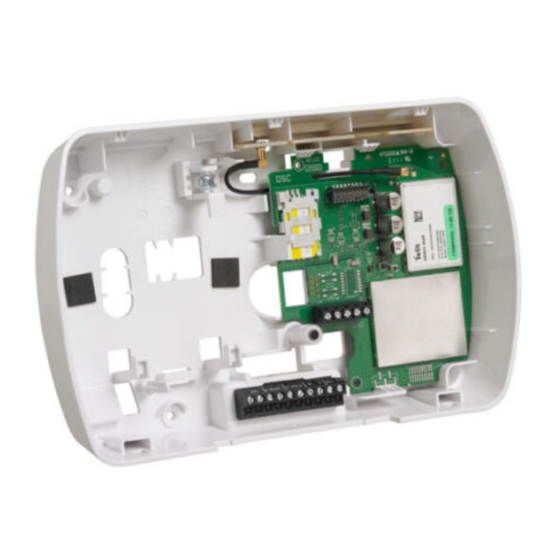

3G2075
HSPA/3G W
A
C
IRELESS
LARM
OMMUNICATOR
TL2753G
E
/I
HSPA/3G D
-P
A
C
THERNET
NTERNET AND
UAL
ATH
LARM
OMMUNICATOR
NOTE: This manual covers the following models for the North America:
3G2075-NA
TL2753G-NA
Installation Manual
v3.0
Warning: This manual contains information on limitations regarding product use and function and information on the limitations
as to liability of the manufacturer.
Advertisement
Table of Contents
Related Manuals for DSC 3G2075
Summary of Contents for DSC 3G2075
- Page 1 3G2075 HSPA/3G W IRELESS LARM OMMUNICATOR TL2753G HSPA/3G D THERNET NTERNET AND LARM OMMUNICATOR NOTE: This manual covers the following models for the North America: 3G2075-NA TL2753G-NA Installation Manual v3.0 Warning: This manual contains information on limitations regarding product use and function and information on the limitations...
-
Page 3: Table Of Contents
3G Alarm Communicator Installation Manual ABLE OF ONTENTS Warning: Installer Please Read Carefully ............. . . 4 General Information . -
Page 4: Warning: Installer Please Read Carefully
Warning: Installer Please Read Carefully 3G Alarm Communicator Installation Manual WARNING: I NSTALLER LEASE AREFULLY Note to Installers Motion Detectors The Warnings on this page contain vital information. As the only individual in Motion detectors can only detect motion within the designated areas as shown in contact with system users, it is the installer’s responsibility to bring each item in their respective installation instructions. -
Page 5: General Information
Cellular Coverage for Alarm Communicator Operation The HSPA/3G performance of the 3G2075 and TL2753G Alarm Communicators depends greatly on Cellular network coverage. The SCW9055/SCW9057 (with internal Alarm Communicator) should not be mounted in the final location without first ensuring that Cel- lular radio reception is adequate for communication using the HSPA/3G paths. -
Page 6: Communicator Technical Specifications
• Recycle the battery according to the local rules and regulations. NOTE: Prior to installation of the 3G2075 or TL2753G Communicator, confirm with your local carrier that the HSPA/3G network is available and active in the area where the Communicator will be installed, and that the location provides a radio signal strength that is adequate for uninterrupted service. -
Page 7: Ratings
(Before Installation) Installation of the Communicator requires activation with Connect24 before operation. . IMPORTANT: Prior to installing a 3G2075 or TL2753G Communicator, you will require a Profile Number, Installer ID Number, and an Installer Password. Perform the following pre installation: 1. -
Page 8: Encryption
Installation includes insertion of the SIM card. The SCW9055/SCW9057 should not be mounted in its final location without perform- ing a Communicator Test to ensure adequate HSPA/3G coverage for the 3G2075 and TL2753G Alarm Communicators. NSTALLATION OCATION The Communicator shall be installed in an indoor loca- tion only. -
Page 9: Communicator Reset
DCAAF: Internal (All Receivers). Signals will be routed depending on Section [851] [006] programming. DCBBF: Ethernet Receiver 1 (Primary). (Not available for 3G2075). DCCCF: Ethernet Receiver 2 (Backup). (Not available for 3G2075). NOTE: Add a single ‘F’ as a suffix to the 4 digit hex number to populate the unused remainder of the 32 character field. - Page 10 3G Alarm Communicator Installation Manual OMMUNICATOR LACEMENT (3G2075/TL2753G only) 1. Using the keypad enter the installer mode: [*][8] [installer code] [850]. 2. View and record the number of bars showing on the SCW9055/SCW9057 LCD. 3. Compare with the number of bars indicated in the “CSQ Levels” column shown in Table 6 .
-
Page 11: Ethernet/Cellular Programming Options
3G Alarm Communicator Installation Manual System Options THERNET ELLULAR ROGRAMMING PTIONS The Programming Sections described in this document can be viewed at the SCW9055/SCW9057 LCD. To start programming enter: [*][8][installer code] [851][# # # ], Where # # # is the 3 digit Section number referenced in this section. The Programming Worksheets at the end of this document can be used to record the new values when programming changes have been made from the default values. - Page 12 3G Alarm Communicator Installation Manual [4] Primary Path Default (OFF - TL2753G) (ON - 3G2075) ON: Cellular channel is the primary path. Ethernet channel is the secondary path, if it exists. OFF: Ethernet channel is the primary path in a dual Communicator. Cellular channel is the secondary path.
-
Page 13: Programming Options
3G Alarm Communicator Installation Manual Programming Options NOTE: If no value is programmed and DHCP is used, the DHCP Server will configure the address. If an address is programmed and DHCP is used, the address that you program will be used instead of the DHCP address. [008] DNS Server IP 2 ... - Page 14 Programming Options 3G Alarm Communicator Installation Manual Table 7: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev Pacific Standard Time Cococ Islands Time Pitcarirn Standard Time Myanmar Time Clipperton Island Standard CIST Christmas Island Time Time Mountain Standard Time KOVT...
- Page 15 3G Alarm Communicator Installation Manual Programming Options Table 7: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev Australian Eastern Standard Eastern Greenland Time AEST Time Cape Verde Time Guam Standard Time AZOST Azores Standard Time YAPT Yap Time Western Europian Time...
-
Page 16: Communications Reporting Codes
Communications Reporting Codes 3G Alarm Communicator Installation Manual Table 7: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev CAST Chinese Atlantic Standard Time WKST West Kazakhstan Standard Time Pakistan Time YEKT Yekaterinburg Time Uzbekistan Time Turkmenistan Time Tajikistan Time French Southern and Antarctic... - Page 17 3G Alarm Communicator Installation Manual System Test Options [026 - 029] [026 - 029] YSTEM PTIONS Test Transmissions to Primary Receiver, with Backup to Secondary Receiver: Set Ethernet Section [026] to (FF); [027] to (00). Set Cellular Section [028] to (FF); [029] to (00). •...
-
Page 18: Ethernet Receiver 1 Options
Ethernet Receiver 1 Options 3G Alarm Communicator Installation Manual Table 10: Panel Tamper Alarm Restore Contact ID Contact ID Contact ID Contact ID Event Reporting Reporting Identifier Qualifier Event Code User/Zone Code Code [033] Comm. FW Update Begin [034] Comm. FW Update Suc- cessful [035] Panel FW Update Begin [036] Panel FW Update Suc-... -
Page 19: Ethernet Options
3G Alarm Communicator Installation Manual Ethernet Options [112] Ethernet Receiver 2 DNIS Default (000000) The DNIS is used in addition to the account code to identify the Communicator module at the central station. Valid range: 000000 - 099999. Value is entered as leading 0 followed by the 5 digit DNIS. Format is BCD. NOTE: Each Ethernet/Cellular receiver must be programmed with a unique DNIS. -
Page 20: Cellular Receiver 2 Options
Cellular Receiver 2 Options 3G Alarm Communicator Installation Manual [203] Cellular Receiver 1 Address Default (000.000.000.000) Enter the Cellular Receiver 1 IP address. This information will be provided by your central station system administrator. Each 3 digit segment of the address must be within a valid range of 000-255. NOTE: When a valid IP address has been entered, the Cellular is enabled and will communicate events over the Cellular channel. - Page 21 3G Alarm Communicator Installation Manual Cellular Options [222] Cellular Login User Name Default ( ) Some network carriers require you to provide login credentials when connecting to an APN. Program your login User Name in this Sec- tion. Format is up to 32 ASCII characters. NOTE: This Section is not accessible via PC1616/PC1832/PC1864 keypad programming.
-
Page 22: System Information (Read Only)
System Information (Read Only) 3G Alarm Communicator Installation Manual ECEIVER IAGNOSTIC ESTING [901] Diagnostic Test Transmission Ethernet 1 (OFF). Ethernet 2 (OFF). Cellular 1 (OFF). Cellular 2 (OFF). [5],[6],[7],[8] Reserved (OFF). This Section may be used by the installer to force the Communicator to send an immediate test transmission to specific receivers, to verify that the communications paths are available. -
Page 23: System Reset Defaults
3G Alarm Communicator Installation Manual System Reset Defaults [997] IMEI Number This Section will display the unique 15 digit International Mobile Equipment Identity (IMEI) of the radio. Format is: Reporting Body Identifier (2 digits), Allocation Number (4 digits); Final Assembly Code (2 digits); Serial Number (6 digits); and a check digit. [998] MAC Address This Section will display the unique12 digit, hexadecimal number assigned as the Media Access Control (MAC) address of the device. - Page 24 Communicator Troubleshooting 3G Alarm Communicator Installation Manual Communicator Troubleshooting [984] Communicator Status The communicator status sections are intended to provide the installer with real-time status of the communicator’s functionality, opera- tional readiness, failures, and potential malfunctions that may affect flawless operation of the communicator and its primary function of sending signal to the central station in case the monitored event occurs.
- Page 25 3G Alarm Communicator Installation Manual Communicator Troubleshooting The he following table shows each digits position in status code and each digit’s value and its assigned meaning in the eight digits code: Table 14: Radio Initialization Status - 1-8 bits completion Not Completed Completed For example, the radio initialization status code 12-45--- indicates that Radio has been powered up, it has received SMS signal from C24, the radio is...
- Page 26 Communicator Troubleshooting 3G Alarm Communicator Installation Manual Communicator Troubleshooting The status code for the radio signal strength, its typical troubles, possible causes and troubleshooting instructions is displayed in the table below. Table 16: Radio Signal Strength Signal Signal Signal Signal Level Signal Level CSQ Level Action Required...
-
Page 27: Ethernet/Cellular Programming Worksheets
|____| [3] Supervision Type Default (OFF). [027] Ethernet 2 Transmission |____| [4] Primary Communications Path. Default (00) Program 00 disable or FF enable. Default [OFF] TL2753G; [ON]3G2075. |____|____| |____| [5] Redundant Communications Default (OFF). [028] Cellular 1 Transmission |____| [6] Remote Firmware Upgrade Default (ON). -
Page 28: Ethernet Receiver 1 Options
Ethernet Receiver 1 Options 3G Alarm Communicator Installation Manual [202] Cellular Receiver 1 DNIS THERNET ECEIVER PTIONS Default (000000) Valid range: 000000 - 0FFFFF. [101] Ethernet Receiver 1 Account Code |____|____|____|____|____|____| Default (0000000000) Valid range: 0000000001 - FFFFFFFFFE. [203] Cellular Receiver 1 Address |____|____|____|____|____|____|____|____|____|____| Default (000.000.000.000). -
Page 29: System Information (Read Only)
3G Alarm Communicator Installation Manual System Information (Read Only) [224] Cellular Test Transmission Time of Day Default (9999) Valid range: 00 - 23 hrs. (HH) 00 - 59 min. (MM). |____|____|____|____ [225] Cellular Test Transmission Cycle Default (000000) Valid range: 000000 - 999999 minutes. |____|____|____|____|____|____| [226] Cellular Trouble Delay Default (00) -
Page 30: End User Licence Agreement
3G Alarm Communicator Installation Manual ICENCE GREEMENT IMPORTANT - READ CAREFULLY: DSC Software purchased with or without Products and Components is Copyrighted and is purchased under the following license terms: This End-User License Agreement (EULA) is a legal agreement between You (the... -
Page 31: Limited Warranty
Custom products are only warranted to the extent that they do not tract, negligence, strict liability, or any other legal theory. Such function upon delivery. In such cases, DSC can replace or credit at damages include, but are not limited to, loss of profits, loss of the its option. -
Page 32: Fcc Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. NOTE: ADT 3G2075/TL275/TL2753G are order codes specific for ADT. The original model names that are UL/ULC/FCC/IC certi- fied are: 3G2055/TL255/TL2553G.
