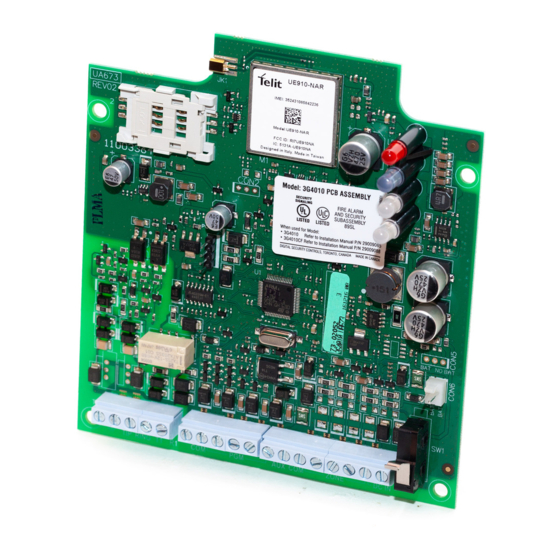

- Page 1 3G4010 3G (HSPA) WIRELESS ALARM COMMUNICATOR INSTALLATION MANUAL V4.0 WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manu- facturer. The entire manual should be carefully read.
-
Page 2: Table Of Contents
Installing the 3G4010 ........4... - Page 3 IMPORTANT The equipment is fixed, wall-mounted and shall be installed in the position specified in these instructions. The equipment enclosure must be fully assembled and closed, with all the necessary screws/tabs and secured to a wall before operation. Internal wiring must be routed in a manner that prevents: - Excessive strain on wire and on terminal connections - Loosening of terminal;...
-
Page 4: Introduction
• Panel transmission monitoring for up to four phone numbers Technical Specifications The input voltage to the 3G4010 can be drawn from the UL/ULC Listed control panel or provided by an external UL/ULC Listed power supply rated for the application (external power-limited source). -
Page 5: Identification Of Parts
BA T tie wrap 3G4010 All circuits are classified for UL installations as Power Limited/Class II Power Limited except for the bat- tery leads which are not power limited. Do not route any wiring over circuit boards. Maintain at least 1”... -
Page 6: Description
4 hours standby power capabilities. An example of a suitable listed compatible control unit is the DSC Model PC1864 with an AUX output rated 11.1 - 12.6VDC. An example of a suitable Listed power supply is DSC Model PC5204 with an AUX output rated 11.6 - 12.6VDC. -
Page 7: Installing The 3G4010
24 hours in advance of installation to ensure SIM activation will be complete. WEB Enrolment If you have credentials for www.connect24.com, you may also initialize the 3G4010 via the web. Please check with your Connect 24 Master Reseller or Connect 24 Customer Service for more details. -
Page 8: Status Leds
3G4010 current when determining the total draw on the host panel or power supply. Jumper CON5 does not limit the electrical current available on this output. Tamper (12-13) - These terminals are connected in series to the Tamper switch [10]. They will close when the cabinet is properly closed, and will open when the front cover is removed. -
Page 9: Operating Principles
• The central station receiver acknowledges the alarm and sends a command to the 3G4010 to gen- erate the corresponding 1400Hz Kiss-off signal for a minimum of 800msec. After the 3G4010 generates a Kiss-off signal, it sends the next alarm or, if no further alarms need to be sent, the control panel goes on-hook. -
Page 10: Outputs
The 3G4010 has four open collector outputs capable of a maximum of 50mA. Internal events on the 3G4010 can trigger the outputs to turn on an LED or activate an input on the host panel. The default settings are as follows. -
Page 11: Low Power Radio Shutdown
SIM – the SIM should be activated at least 24 hours prior to installation. The 3G4010 will show signal strength with an inactive SIM, however it will display the signal strength of any available wireless network. - Page 12 • When used as the primary communicator, the yellow light will always be • When used as a backup communicator, the yellow light will be ON when there is a no phone line connected to the 3G4010 TIP and RING, or the line voltage goes below 2.8VDC.
- Page 13 3G4010 programming is correct (port, IP address, DNIS) • Contact your central station to verify they are not experiencing any receiver issues Seven DC Supply Trouble • Ensure the power source connected to the 3G4010 is providing 13.8VDC @ 120mA Flashes...
- Page 14 3G4010 low battery trouble (one flash) and an insufficient signal strength trouble (four flashes) are present; the red light will flash one time. Once the 3G4010 low battery trouble condition is corrected, the red light will then begin flashing four times.
- Page 15 • The lights will continue to flash in this sequence until the battery is charged above 12.4VDC Swinger Shutdown for Telephone • If the 3G4010 is configured as a backup, it can send a maximum of 3 TLM troubles and restorals per day Line Monitor (TLM) transmissions for •...
-
Page 16: 3G4010 Wiring Diagrams
3G4010 Wiring Diagrams Figure 2 - Wiring Diagram... - Page 17 CMC. 3. Output 4 on the 3G4010 must be set as “Active High” (default). 4. When powering the 3G4010 Radio by an...
- Page 18 - 24h Test Transmission must be enabled on the dialler and on the 3G4010. Figure 6 - DSC Subscribers’ Unit Fire and 3G Transmitter Mounted in the Same Room Wiring Diagram for DSC Subscribers’ Unit Fire and 3G Transmitter (Passive Communication System)
- Page 19 3G4010 Wiring Diagrams Figure 7 - DSC Subscribers’ Unit Fire and 3G Wireless Transmitter Mounted Remotely Alternate Wiring Diagram for DSC Subscribers’ Unit Fire and wireless Transmitter Passive Communication System -Using Phone Line Supervision Relay AUX Power Fire Alarm 3G Wireless...
- Page 20 3G4010 Wiring Diagrams Figure 8 -Connection Details for Wireless Network Supervision Relay and Redundant Fire Alarm Trans- mission Connection Details for Wireless Network Supervision Relay & Redundant Fire Alarm Transmission 3G4010 L1 L2 L3 L4 O1 O2 O3 O4+OC 1 2 3...
- Page 21 3G4010 Wiring Diagrams Figure 9 - Connection Details for GSM Supervision Relay, Phone Line Supervision and Redundant Fire Alarm Transmission Connection Details for Wireless Network Supervision Relay, Phone Line Supervision Relay and Redundant Fire Alarm Transmission 3G4010 DC IN TIP RING...
- Page 22 IMPORTANT READ CAREFULLY: DSC Software purchased with or without Products and Components is copyrighted and is purchased under the following license terms: 3. COPYRIGHT • This End User License Agreement ("EULA") is a legal agreement between You (the company, individual or entity who acquired the Soft-...
- Page 23 Incidence of Harm Digital Security Controls n’approuve aucune modification apportée à If this equipment 3G4010 causes harm to the telephone network, the telephone l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement ou company will notify you in advance that temporary discontinuance of service may modification peuvent annuler le droit d’utilisation de l’appareil par...
- Page 24 Access cards or tags returned for replace- purchase, the product shall be free of defects in materials ment under warranty will be credited or replaced at DSC's and workmanship under normal use. During the warranty option. Products not covered by this warranty, or other-...
