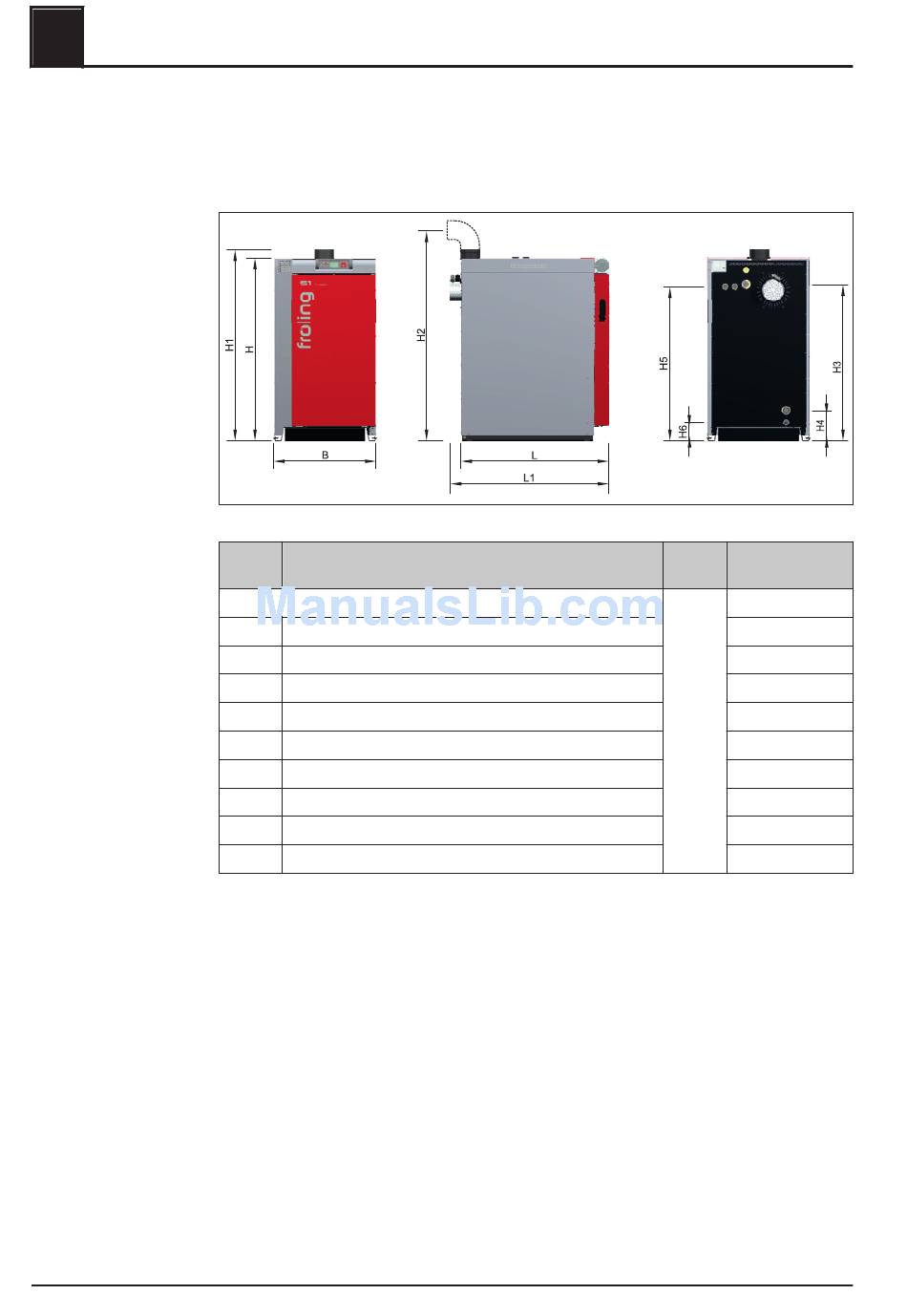

3 Technology

3.1 Dimensions

14
Dimen‐
sion
L Length, boiler
L1 Total length incl. induced draught fan
W Width, boiler
H Height, boiler
H1 Total height incl. Flue gas nozzle
H2 Height, flue spigot
H3 Height, flow connection
H4 Height, return connection
H5 Height, safety battery connection
H6 Height, drainage connection
Froling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.com
Name
Technology
Dimensions
Unit S1 Turbo
mm 1000
1080
685
1235
1290
1450
1055
200
1040
120
