4-2-14. Replacement Fuse

There are two fuses in the instrumentation box.
Both AC lines (phase L/N) to the one fuse.
[Replacing procedure]

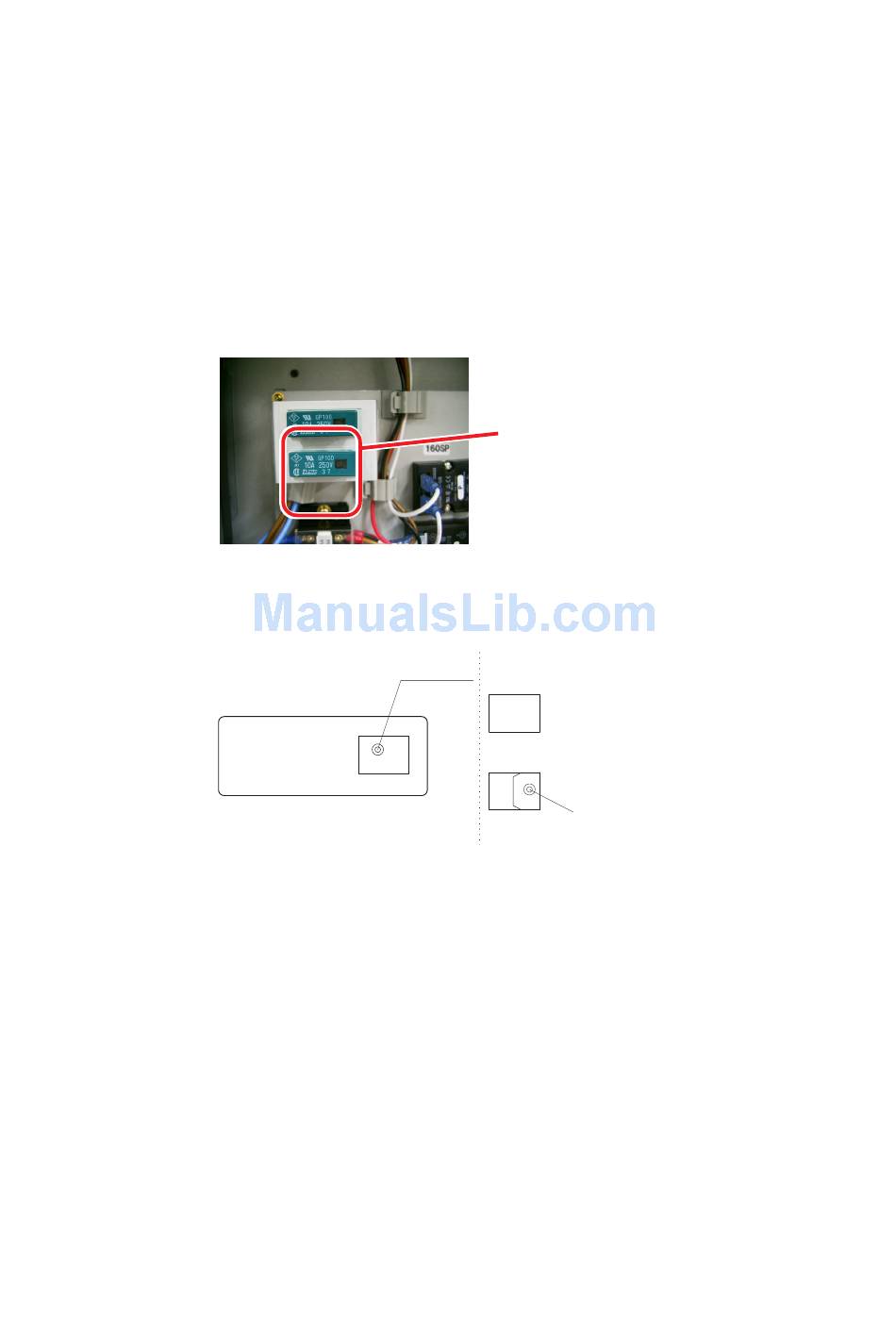

1) Check whether a fuse has blew.
If a contact can be seen at the display hole of the fuse, it has blew.
Check Fuse
2) Remove the fuse from the holder and replace it with a new one.
Display hole
GP100
10A 250V
– 4.36 –
GP50 (75SPII)
GP100 (130SL, 130SPII, 160SP)
Normal
Abnormal
Contact
