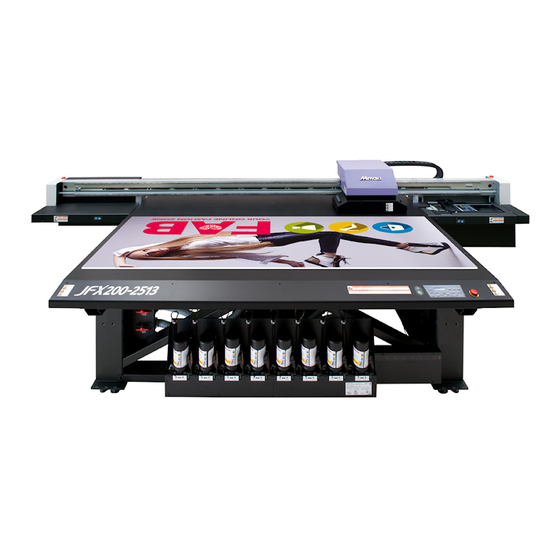

MIMAKI JFX200-2513 Cleaning Procedure

JFX200-2513 / JFX500-2131

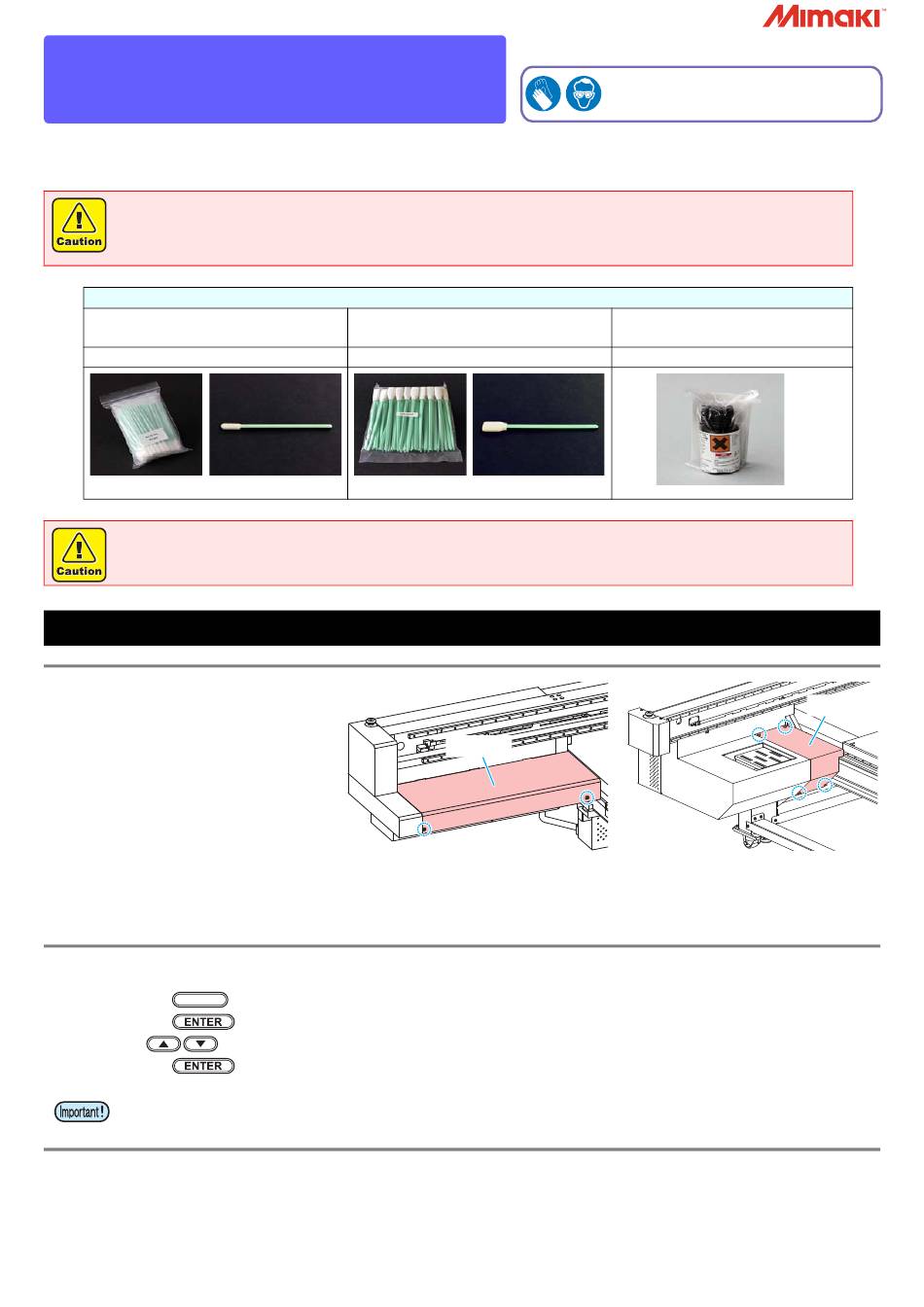

Cleaning procedure of head nozzle

Only when the nozzle drop out doesn't recover with cleaning, daily care and maintenance, please clean
the head nozzle following the procedure below.
• Before performing the maintenance, please make sure to attend the training by our engineers. Maintenance
without training may cause failure of the head.
• During maintenance, never rub the nozzles of the head. If rub the nozzle part, the water-repellent surface is
degraded and the head might need to be replaced.
Nozzle swab (100)
No.SPC-0421
• Make sure to use designated supply goods for nozzle cleaning. Other cleaning goods may cause early
deterioration of the head.

Procedure

1. Remove the left side cover of
the machine.
Remove the screw and remove the
cover.
2. Move the carriage(head) to the maintenance space.
(1) Press the
MAINT.
(2) Press the
(3) Press
(4) Press the
• Head will move for maintenance, please be careful.

Supply goods for cleaning

[JFX200] Remove the screws
at two positions.
key in LOCAL.
key.
to select [HEAD MAINT.].
key.
Cleaning stick (50)
No.SPC-0527
Cover
Make sure to wear the attached
goggles and glove when you work.
F200/LF200 Cleaning liquid
for maintenance (100mℓ)
No.SPC-0568
[JFX500] Remove the screws
at four positions.
Cover
