Communication Ports

The RUGGEDCOM RMC40 can be equipped with various types of communication ports to enhance its abilities and
performance.

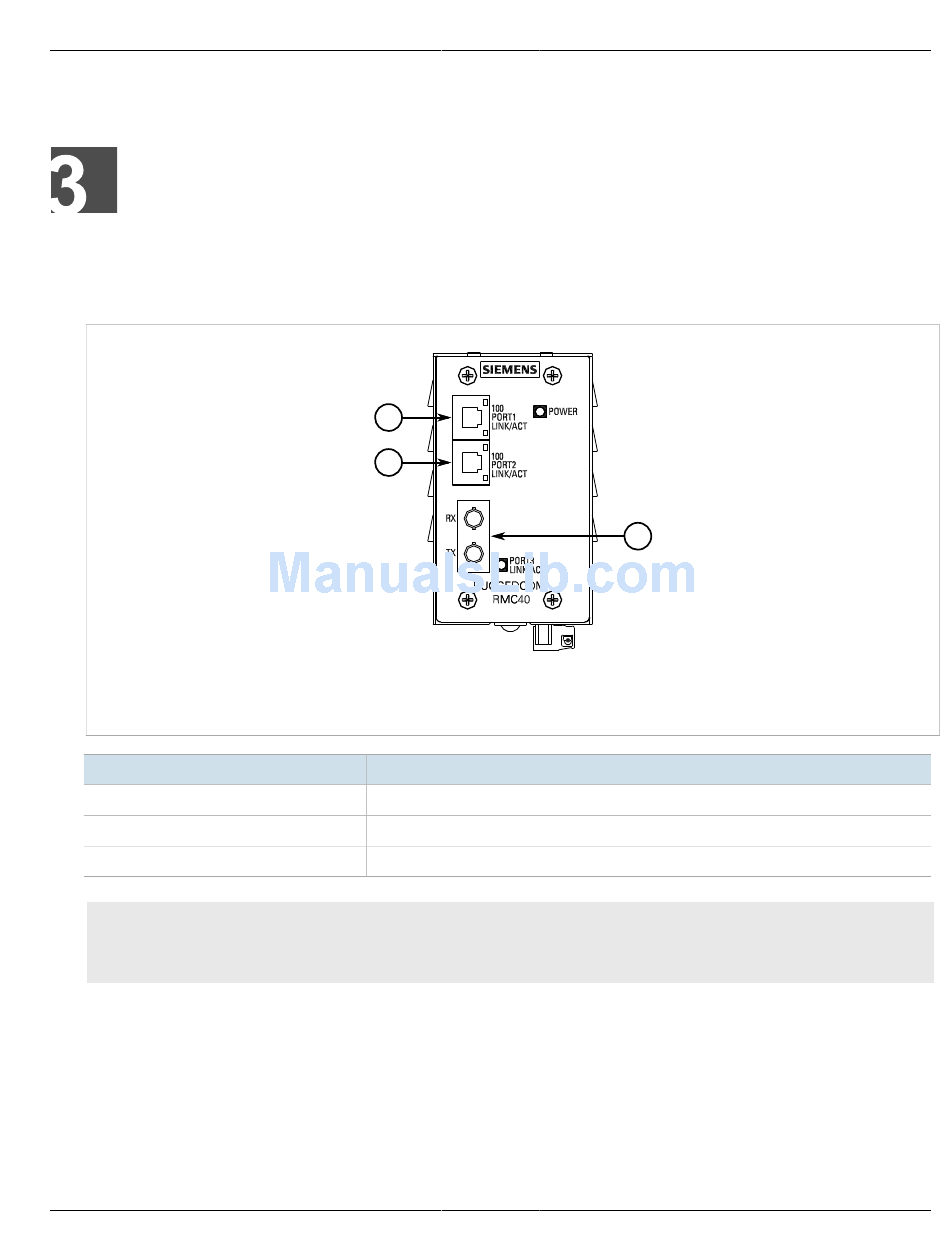

Figure 6: Port Assignment
1. Port 1 2. Port 2 3. Port 3 4. Port 4
Port
1
2
3 to 4
CONTENTS
• Section 3.1, "Copper Ethernet Ports"
• Section 3.2, "Fiber Optic Ethernet Ports"
Section 3.1

Copper Ethernet Ports

The RUGGEDCOM RMC40 supports two 10/100Base-TX Ethernet ports that allow connection to a standard
Category 5 (CAT-5) unshielded twisted-pair (UTP) cable with an RJ45 male connector. The RJ45 receptacles are
directly connected to the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
Copper Ethernet Ports
1
2
Type
Copper Ethernet Port
Copper Ethernet Port
Fiber Optic Ethernet Port
Communication Ports
3
