2.3.1 Remove Backplate of Controller Assembly

Remove the backplate of the controller assembly to gain access to the CPU board, power supply board and
installed option cards.
1. Remove four corner screws, four center screws and the configuration access screw from the backplate.
2. Pull backplate from the controller unit.
3. To reinstall reverse the steps above.
14 880 Installation Manual

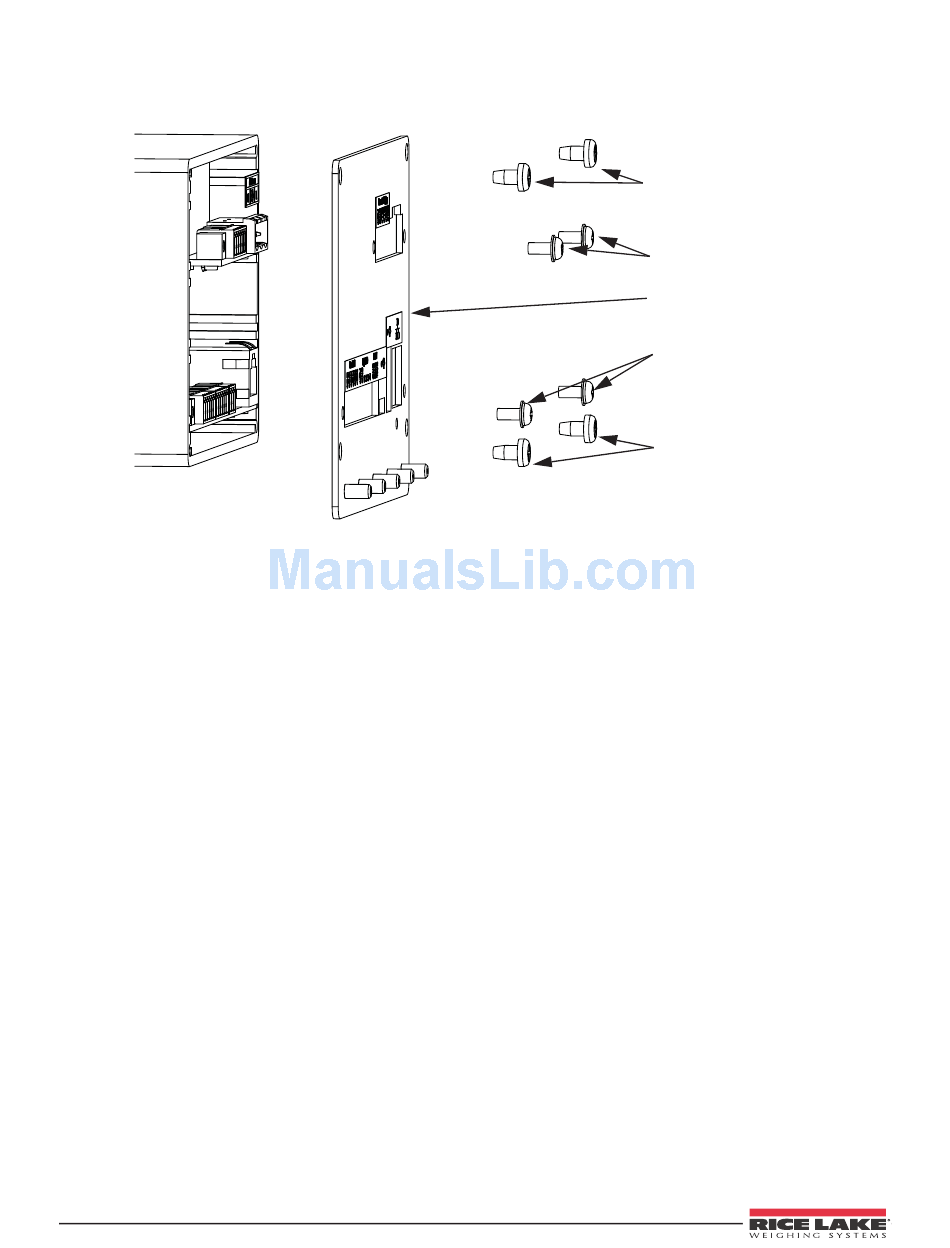

Figure 2-7. Remove Controller Assembly Backplate
Corner Screws
Center Screws
Backplate
Center Screws
Corner Screws
