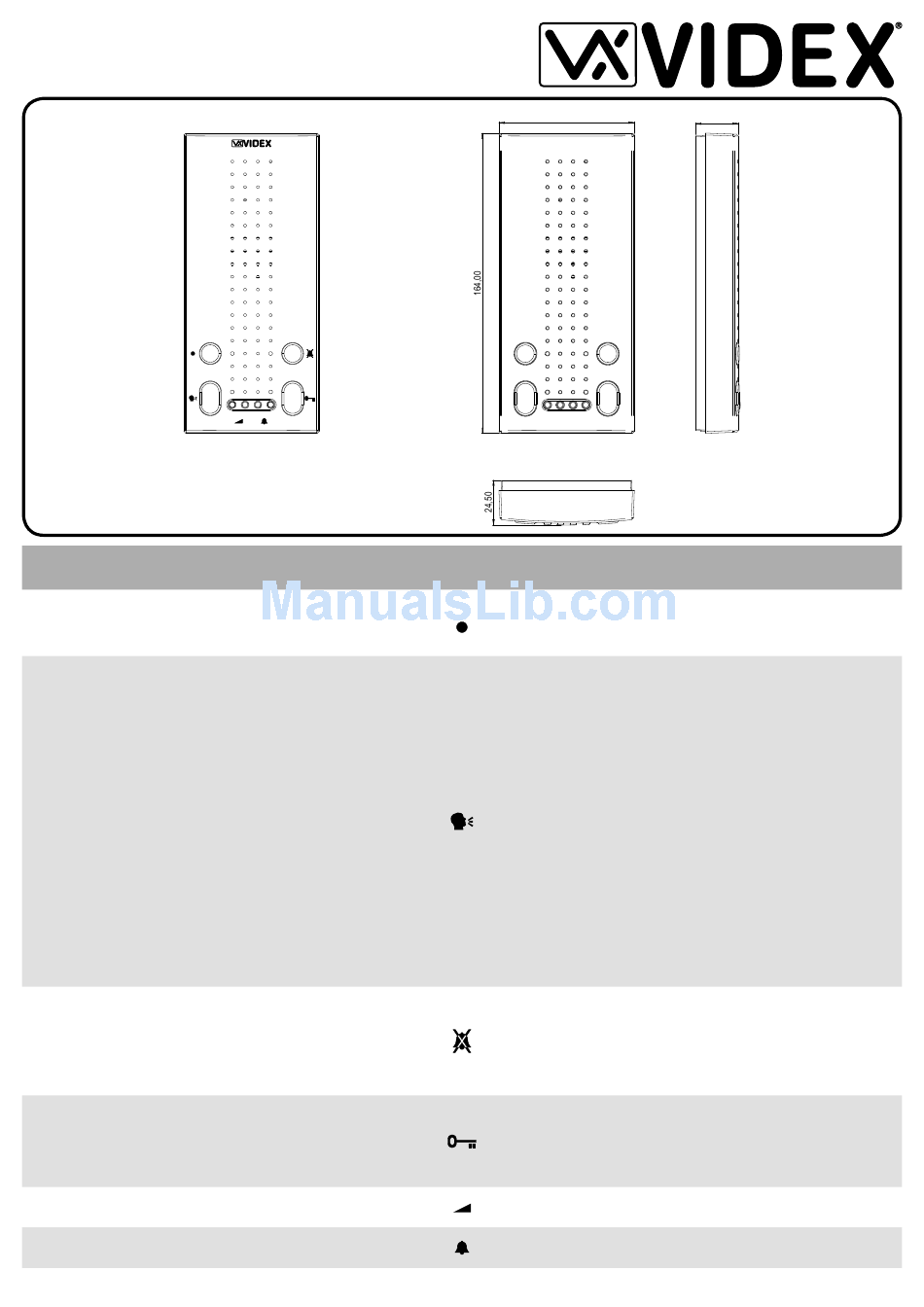

Art.5178
PULSANTI E REGOLAZIONI
Pulsante di Servizio
Quando premuto collega internamente i morsetti 1 ("Sb") ed 8
("Sa").
Pulsante risposta / conversazione ad una via / autoaccensio-
ne / spegnimento
Premendo questo pulsante alla ricezione della chiamata si avvia
la conversazione con il posto esterno in full duplex (il relativo
LED si accende.
Premere e tenere premuto alla ricezione della chiamata per ini-
ziare la conversazione ad una via verso il posto esterno (il LED in
corrispondenza del pulsante lampeggia rapidamente): per ascol-
tare il visitatore rilasciare il pulsante (il LED lampeggia lentamen-
te) e tornare a tenerlo premuto ogni qual volta si deve prendere
la parola.
Ad impianto spento, premere il pulsante per effettuare l'auto-
accensione ed aprire la comunicazione verso il posto esterno(il
LED in corrispondenza del pulsante si accende).
Ad impianto acceso, consente lo spegnimento manuale (rapida
pressione del tasto). In ogni caso lo spegnimento è automatico
allo scadere del tempo di conversazione (il LED si spegne).
Pulsante Privacy on/off
Abilita / disabilita il servizio privacy. Quando il servizio è attivo, il
LED in corrispondenza del pulsante si accende e le chiamate en-
tranti vengono ignorate. La durata del servizio privacy, salvo nuo-
va pressione del tasto, dipende dalla relativa programmazione.
Pulsante Apri-porta
Premere a sistema acceso per aprire la porta d'ingresso. L'apertu-
ra della porta viene confermata da un segnale acustico. Se il mor-
setto 10 (LD1) è collegato opportunamente, il LED in prossimità
del pulsante resta acceso fino a quando resta aperta la porta.
Regolazione del volume del tono di chiamata. Premere il pulsante
di destra per incrementare o quello di sinistra per diminuire.
Impostazione suoneria (9 disponibili). Vedi la sezione di program-
mazione per l'utilizzo di questi pulsanti.
Installation Instructions
Istruzioni di installazione
66250730 1.0 23/06/08 23/06/08 -Pag.1/4
74,00
PUSH BUTTONS & CONTROLS
Service Push Button
When pressed, shorts internally terminal 1 ("Sb") and 8 ("Sa").
Answer / simplex communicaiton / Camera Recall / End Call
push button
Pressing this button during an incoming call will open the speech
in duplex mode allowing free speech with the caller in both direc-
tions (The LED next to this button will illuminate)
Pressing and holding this button will allow the user to answer a
call from a visitor at the door station in SIMPLEX speech mode
(The LED next to the button will flash rapidly): releasing the but-
ton will allow the user to listen to the visitor (The LED next to the
button will flash slowly). Press and hold the button when you
talk to the visitor and release the button when you listen to the
visitor.
When the system is in standby, (No calls on the system) opera-
tion of this button will open the speech to the door station. The
LED next to the button will illuminate.
During a conversation, momentary operation of this button will
end the call. The LED next to the button will switch off. The sys-
tem will automatically switch off when the conversation time ex-
pires.
Privacy on/off Push Button
This button Enables / Disables the privacy function. When privacy
is enabled calls will not be received and the LED next to the button
will be illuminated. The duration of the privacy time is set when in
the programming mode, privacy can be disabled at any time by
operation of this Push Button.
Door Open Push Button
During a call, operation of this button will release the door from
where the call originated. This will be confirmed by an acoustic
tone. If terminal 10 (LD1) is connected, the "door open" LED next
to the button will also be illuminated.
Call tone volume control (3 levels). Press the right button to in-
crease or the left button to decrease.
Melody control (9 melodies are available). See programming sec-
tion for the operation of these buttons
23,50
