Videx 5178N Instructions Manual

5000 Series Eclipse Range
Art. 5178N

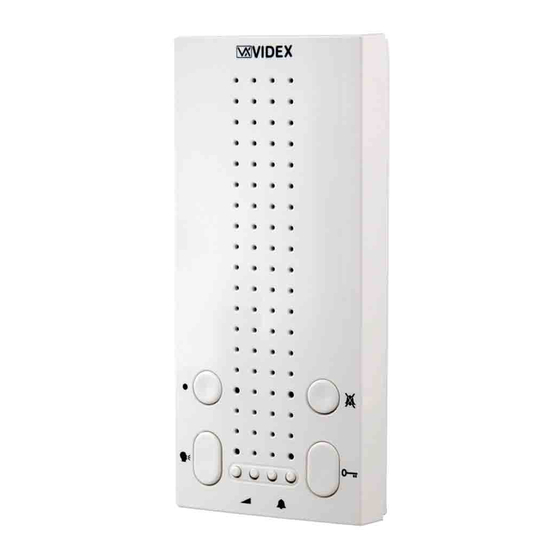

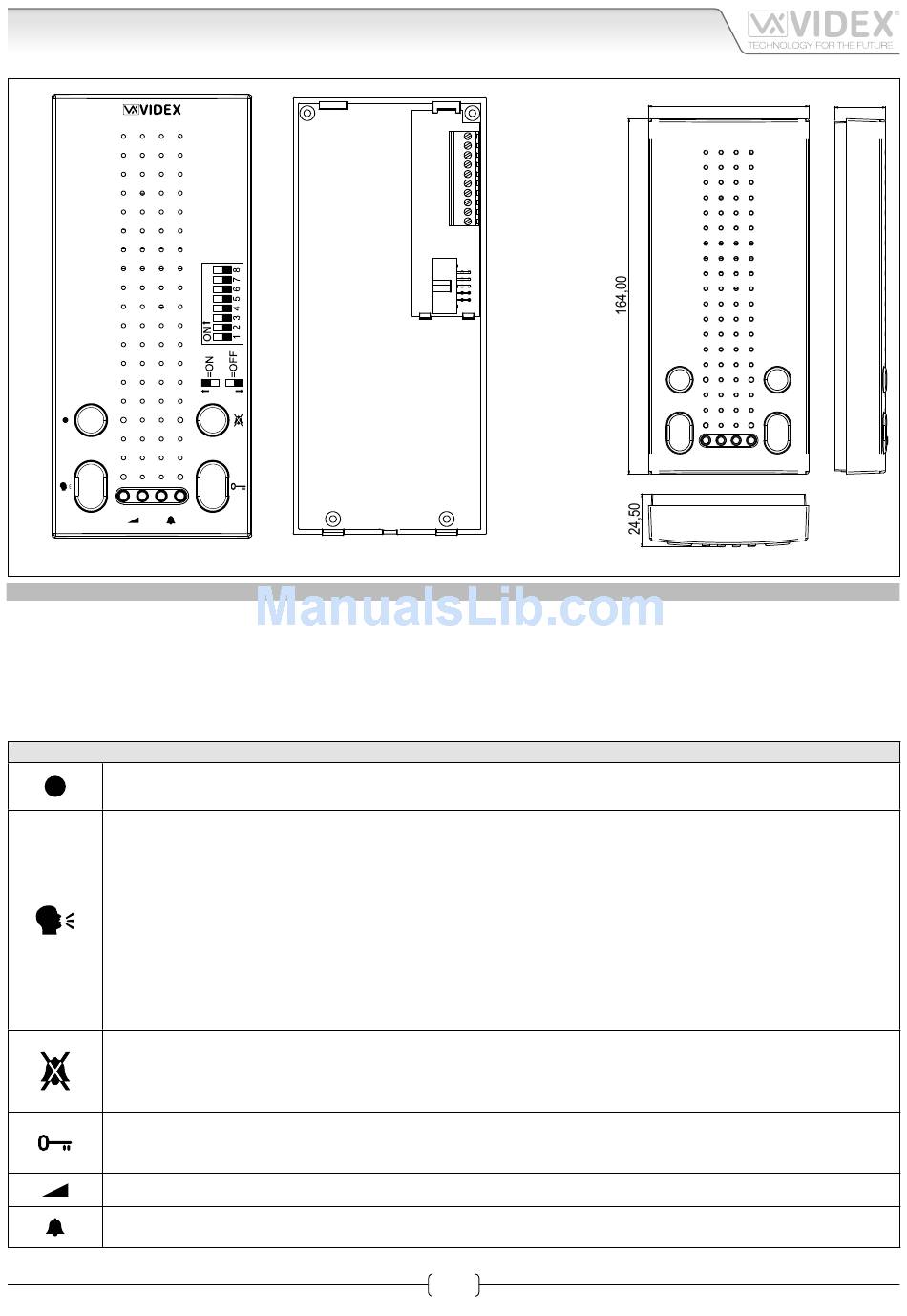

Fig. 1
DESCRIPTION
Voice switched hands free intercom with buttons to control "answer/end conversation/recall/simplex conversation", "door open",
"privacy on/off" (programmable duration) and "service" button. In addition there are 4 LED's* to indicate the status of "answer/
end conversation", "door open/closed", "privacy on/ off" and auxiliary "service" status. Call tone and loudspeaker volume controls,
through assigned buttons, are also incorporated on this model. It is possible to program the melody (9 available), the number of
rings (max 9) and the privacy service duration (max 20 hours). Surface wall mount installation.
* The operation of some LED's and the functions described may require additional cabling
PUSH BUTTONSAND CONTROLS
Service Push Button.
When pressed, shorts internally terminal 1 ("Sb") and 8 ("Sa").
Answer / simplex communicaiton / Camera Recall / End Call push button.
• Pressing this button during an incoming call will open the speech in duplex mode allowing free speech with the
caller in both directions (The LED next to this button will illuminate)
• Pressing and holding this button will allow the user to answer a call from a visitor at the door station in SIMPLEX
speech mode (The LED next to the button will flash rapidly): releasing the button will allow the user to listen to
the visitor (The LED next to the button will flash slowly). Press and hold the button when you talk to the visitor and
release the button when you listen to the visitor.
• When the system is in standby, (No calls on the system) operation of this button will open the speech to the door
station. The LED next to the button will illuminate.
• During a conversation, momentary operation of this button will end the call. The LED next to the button will switch
off. The system will automatically switch off when the conversation time expires.
Privacy on/off Push Button.
This button Enables / Disables the privacy function. When privacy is enabled calls will not be received and the LED
next to the button will be illuminated. The duration of the privacy time is set when in the programming mode, pri-
vacy can be disabled at any time by operation of this Push Button.
Door Open Push Button.
During a call, operation of this button will release the door from where the call originated. This will be confirmed by
an acoustic tone. If terminal 10 (LD1) is connected, the "door open" LED next to the button will also be illuminated.
Speech line volume control. Adjust during a conversation. Press the right button to increase or the left button to decrease.
Melody volume control. Adjust when the intercom is in standby. Press the right button to increase or the left button
to decrease.
Art. 5178N - Installation instructions
Hands free intercom
1
2
3
4
5
6
7
8
9
!
10
1
74,00
23,50
66250730-EN - V2.0 - 09/10/15
