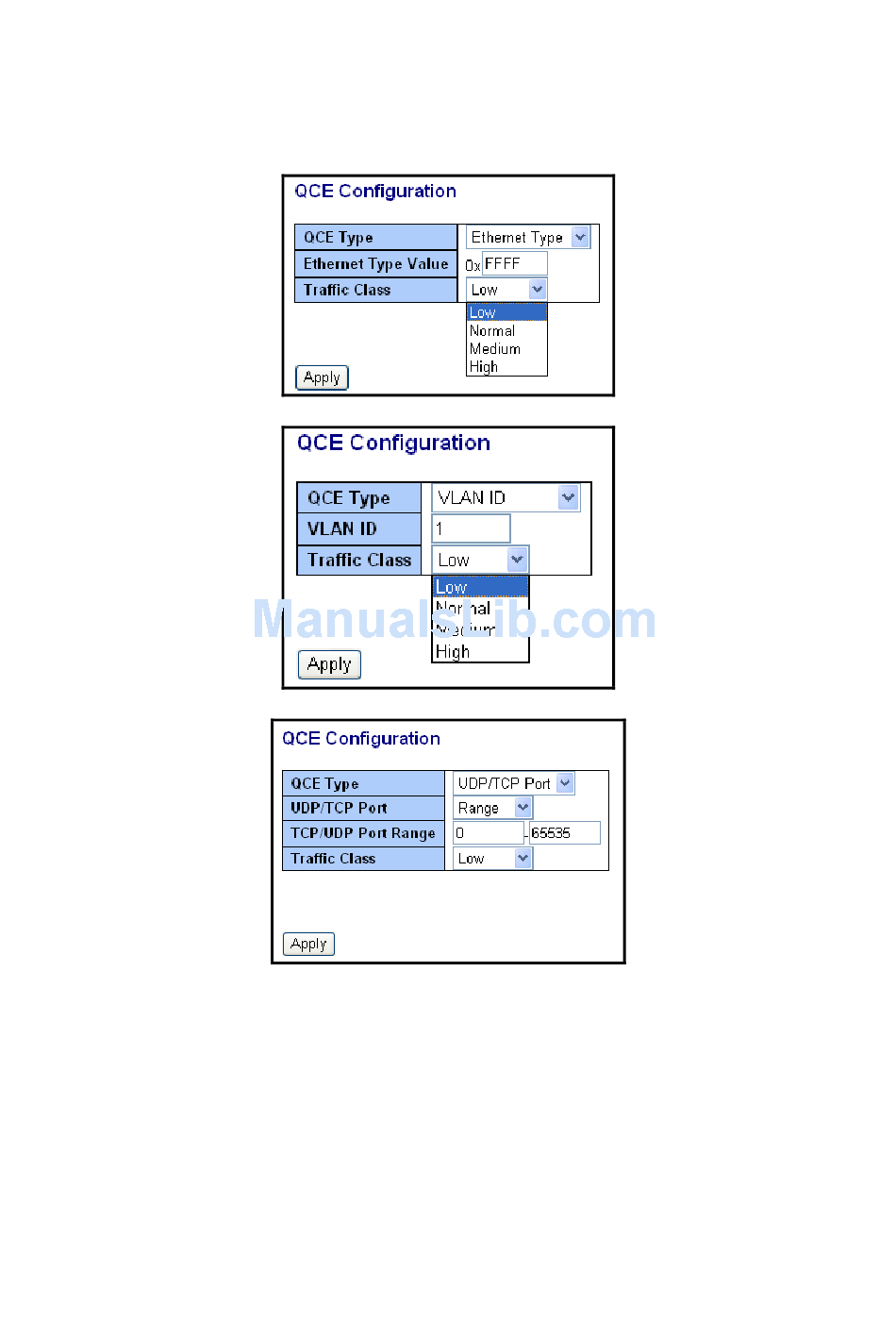

QCE Configuration:
The QCL consists of 12 QoS Control Entries (QCEs) that are searched
from the top of the list to the bottom of the list for a match. The first
matching QCE determines the QoS classification of the frame. The QCE
ordering is therefore important for the resulting QoS classification
algorithm. If no matching QCE is found, the default QoS class is used in
the port QoS configuration.
Fig. 3-36
Fig. 3-37
Fig. 3-38
80
