3-5-2. Counter

Function name:
GVRP Counter
Function description:
All GVRP counters are mainly divided into Received and Transmitted two
categories to let you monitor the GVRP actions. Actually, they are GARP
packets.
Parameter description:
Received:
Total GVRP Packets:
Total GVRP BPDU is received by the GVRP application.
Invalid GVRP Packets:
Number of invalid GARP BPDU is received by the GARP
application.
LeaveAll Message Packets:
Number of GARP BPDU with Leave All message is received by the
GARP application.
JoinEmpty Message Packets:
Number of GARP BPDU with Join Empty message is received by
the GARP application.
JoinIn Message Packets:
Number of GARP BPDU with Join In message is received by the
GARP application.
LeaveEmpty Message Packets:
Number of GARP BPDU with Leave Empty message is received by
the GARP application.
Empty Message Packets:
Number of GARP BPDU with Empty message is received by the
GARP application.

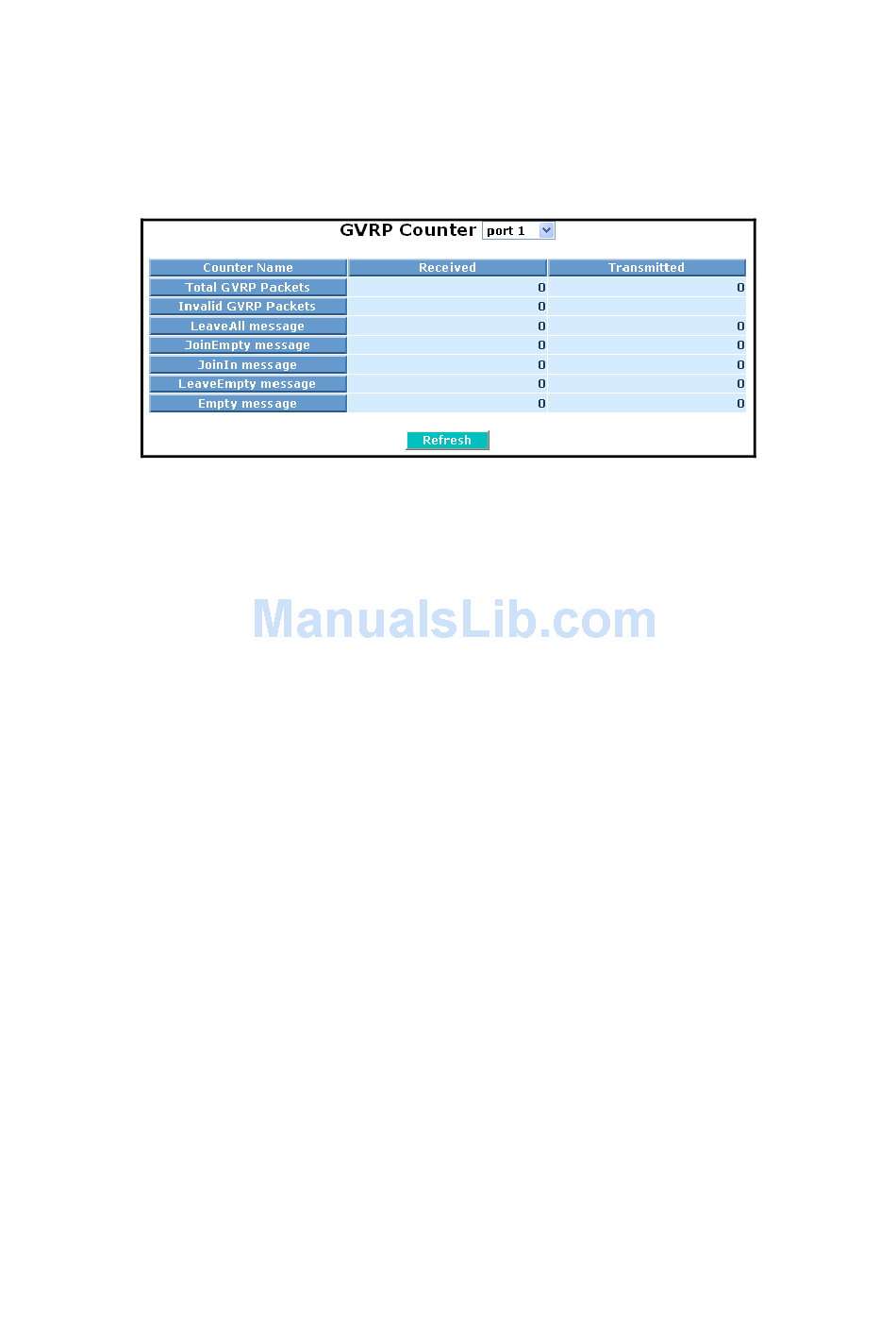

Fig. 3-32
