2-1-4. Configuring the Management Agent of GS-2224L

We offer you three ways to startup the switch management function. They
are RS-232 console, CLI, and Web. Users can use any one of them to monitor and
configure the switch. You can touch them through the following procedures.
Section 2-1-4-1: Configuring the Management Agent of GS-2224L through the
Serial RS-232 Port
Section 2-1-4-2: Configuring the Management Agent of GS-2224L through the
Ethernet Port
Note: Please first modify the IP address, Subnet mask, Default gateway and DNS
through RS-232 console, and then do the next.
2-1-4-1. Configuring the Management Agent of GS-2224L through the Serial
RS-232 Port
To perform the configuration through RS-232 console port, the switch's serial
port must be directly connected to a DCE device, for example, a PC, through
RS-232 cable with DB-9 connector. Next, run a terminal emulator with the default
setting of the switch's serial port. With this, you can communicate with the switch.
In the switch, RS-232 interface only supports baud rate 115200 bps with 8
data bits, 1 stop bit, no parity check and no flow control.
GS-2224L L2 Managed Switch
Default IP Setting:
IP address = 192.168.1.1
Subnet Mask = 255.255.255.0
Default Gateway = 192.168.1.254
To configure the switch, please follow the procedures below:
Find the RS-232 DB-9 cable with female DB-9 connector bundled.
1.
Normally, it just uses pins 2, 3 and 7. See also Appendix B for more
details on Null Modem Cable Specifications.
Attaches the DB-9 female cable connector to the male serial RS-232
2.
DB-9 connector on the switch.
Attaches the other end of the serial RS-232 DB-9 cable to PC's serial
3.
port, running a terminal emulator supporting VT100/ANSI terminal with
The switch's serial port default settings. For example,
Windows98/2000/XP HyperTerminal utility.

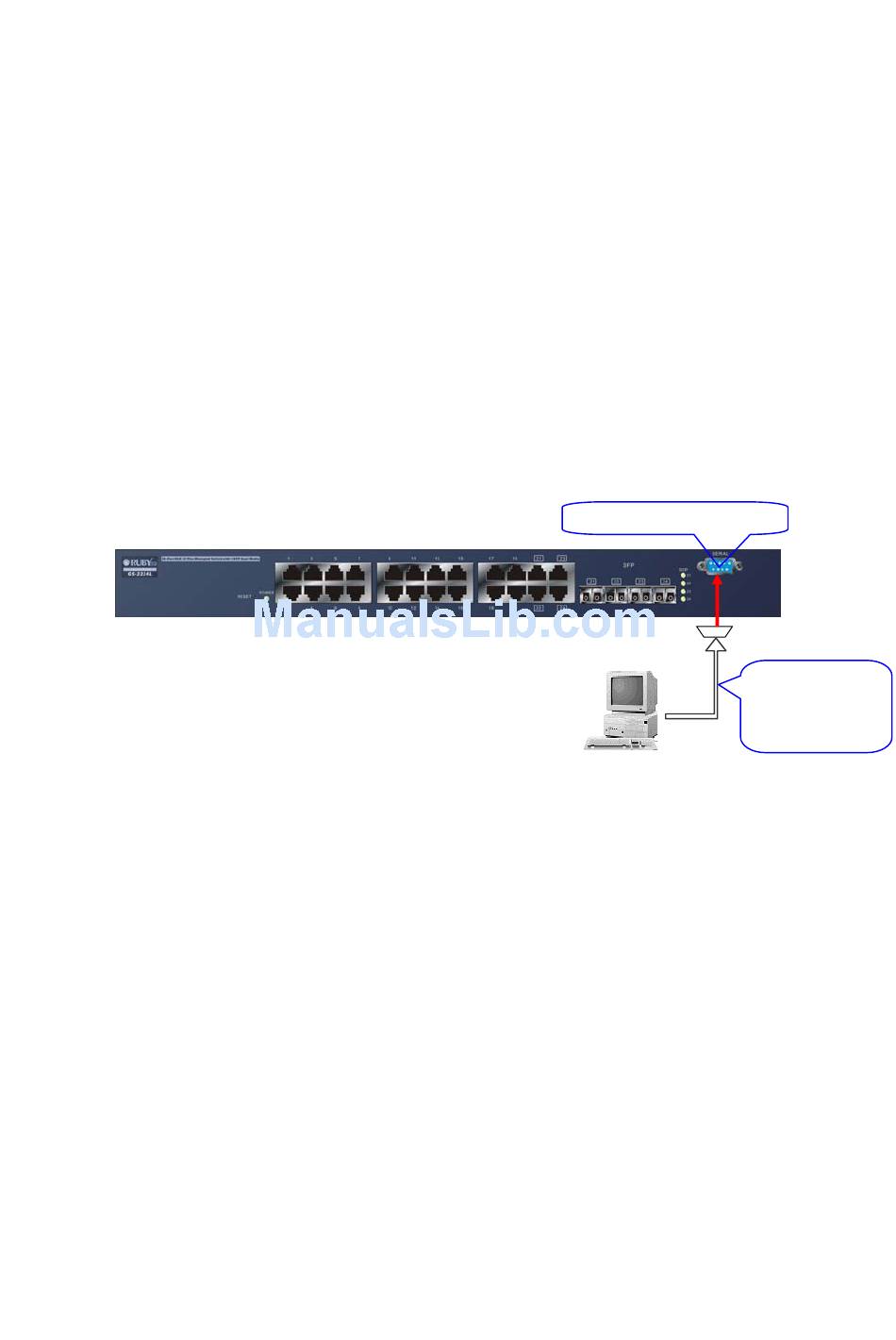

Terminal or Terminal Emulator
Fig. 2-7
16
RS-232 DB-9 Connector
RS-232 cable
with female
DB-9 connector
at both ends
