• LED Indicators
LED
System LED
POWER Green
10/100/1000Ethernet TP Port 1 to 24 LED
LINK/ACT Green
Green/
10/100/1000Mbps Amber
1000SX/LX Gigabit Fiber Port 21, 24 LED
SFP(LINK/ACT) Green

1-4-2. AC Power Input on the Rear Panel

One socket on the rear panel is for AC power input.
Color
Lit when +5V DC power is on and good
Lit when connection with remote device is good
Blinks when any traffic is present
Off when cable connection is not good
Lit green when 1000Mbps speed is active
Lit ember when 100Mbps speed is active
Off when 10Mbps speed is active
Lit when connection with the remote device is good
Blinks when any traffic is present
Off when module connection is not good
Table1-1

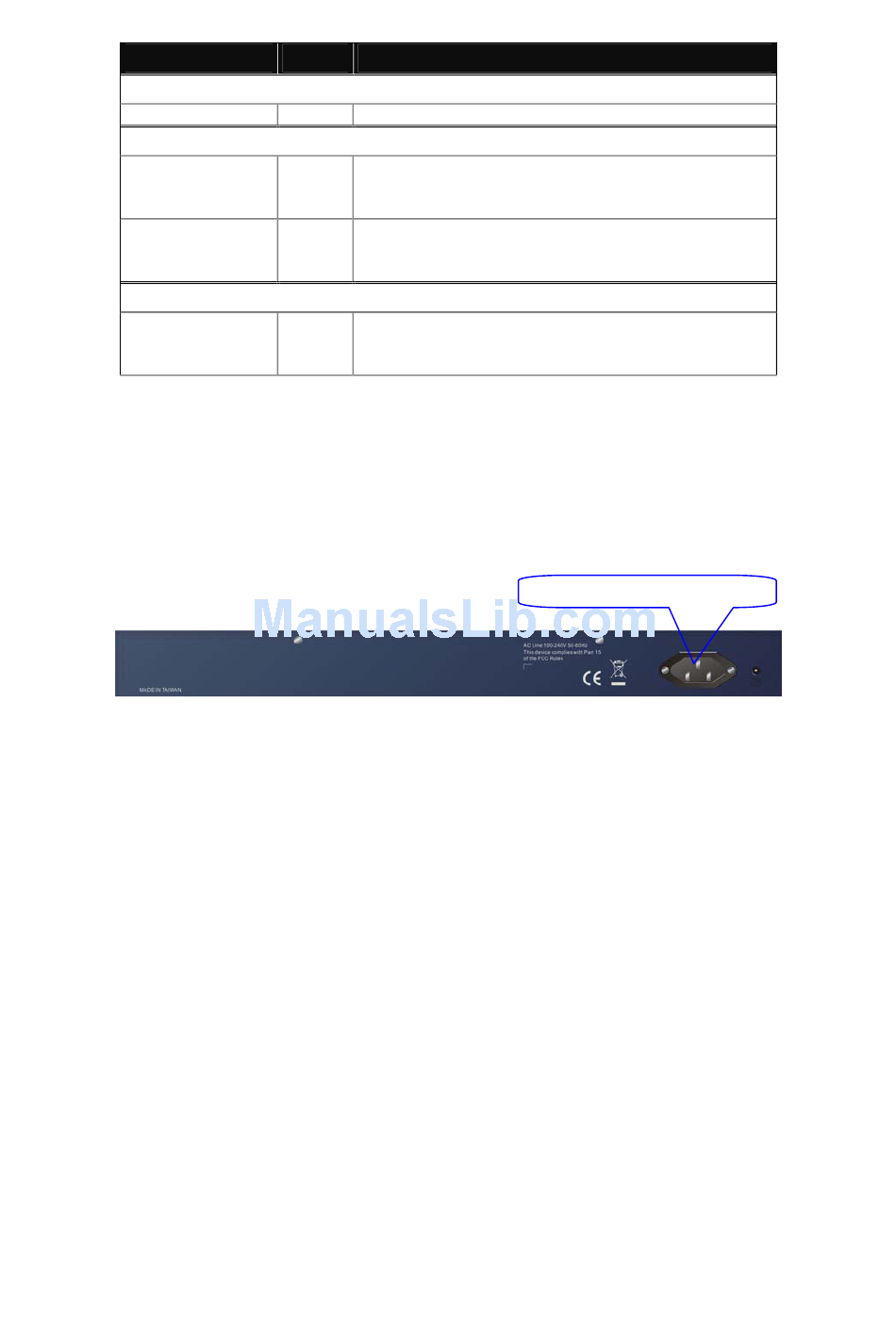

Fig. 1-3 Rear View of GS-2224L
8
Function
AC Line 100-240V 50/60 Hz
