3-10-3.Status

Function name:
802.1X Status
Function description:
Show the each port IEEE 802.1X authentication current operating mode and
status.
Parameter description:
Port:
Port number: 1-24
Mode:
Show this port IEEE 802.1X operating mode: There are four modes
Disable, Normal, Advance and Clientless
Status:
Show this port IEEE 802.1X security current status: Authorized or
Unauthorized

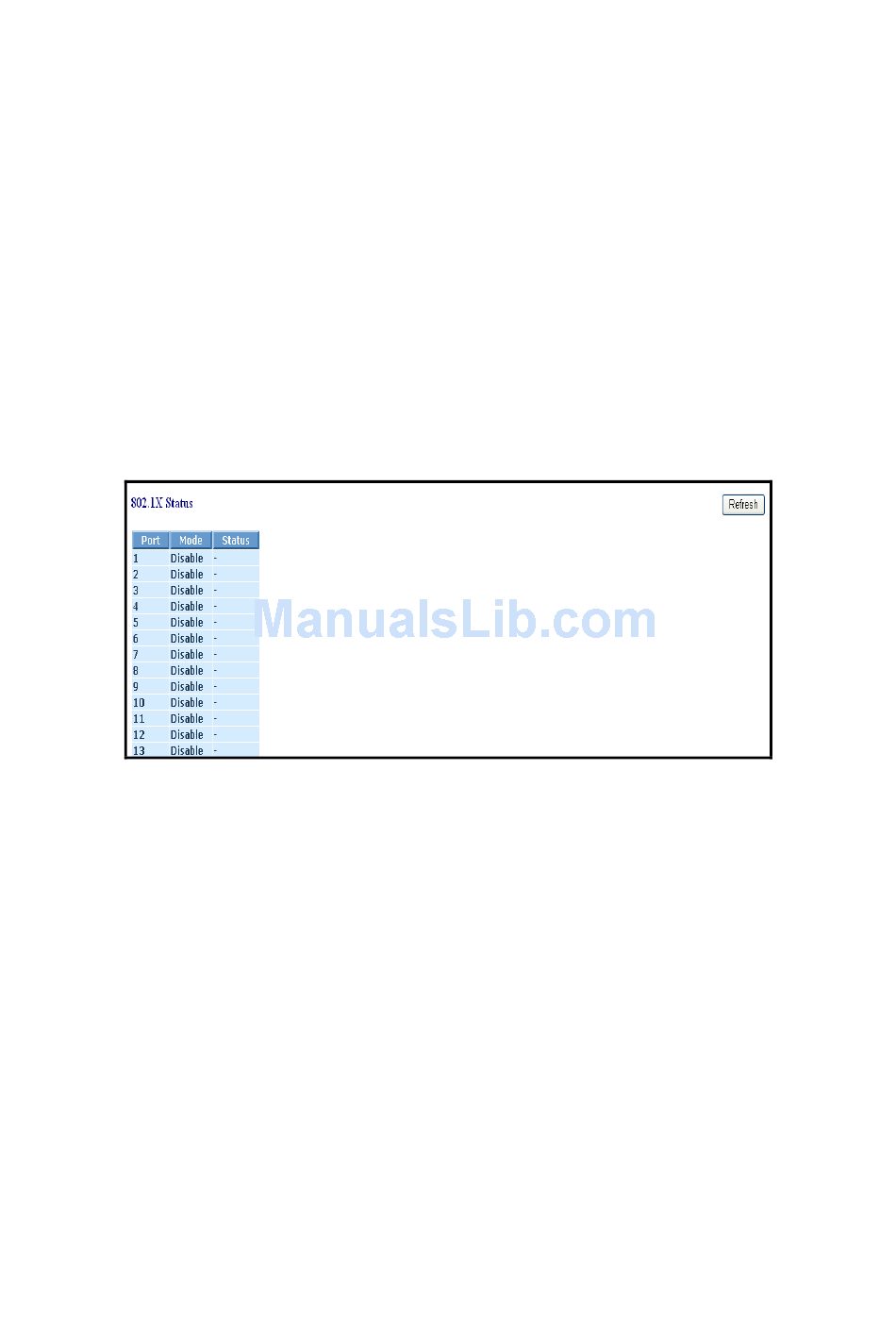

Fig. 3-146
150
