2-2. Typical Applications

The GS-2224L implements 24 Gigabit Ethernet TP ports with auto MDIX and
two slots for the removable module supporting comprehensive fiber types of
connection, including LC and BiDi-LC SFP modules. For more details on the
specification of the switch, please refer to Appendix A.
The switch is suitable for the following applications.
⎯
Central Site/Remote site application is used in carrier or ISP (See Fig. 2-13)
⎯
Peer-to-peer application is used in two remote offices (See Fig. 2-14)
⎯
Office network(See Fig. 2-15)

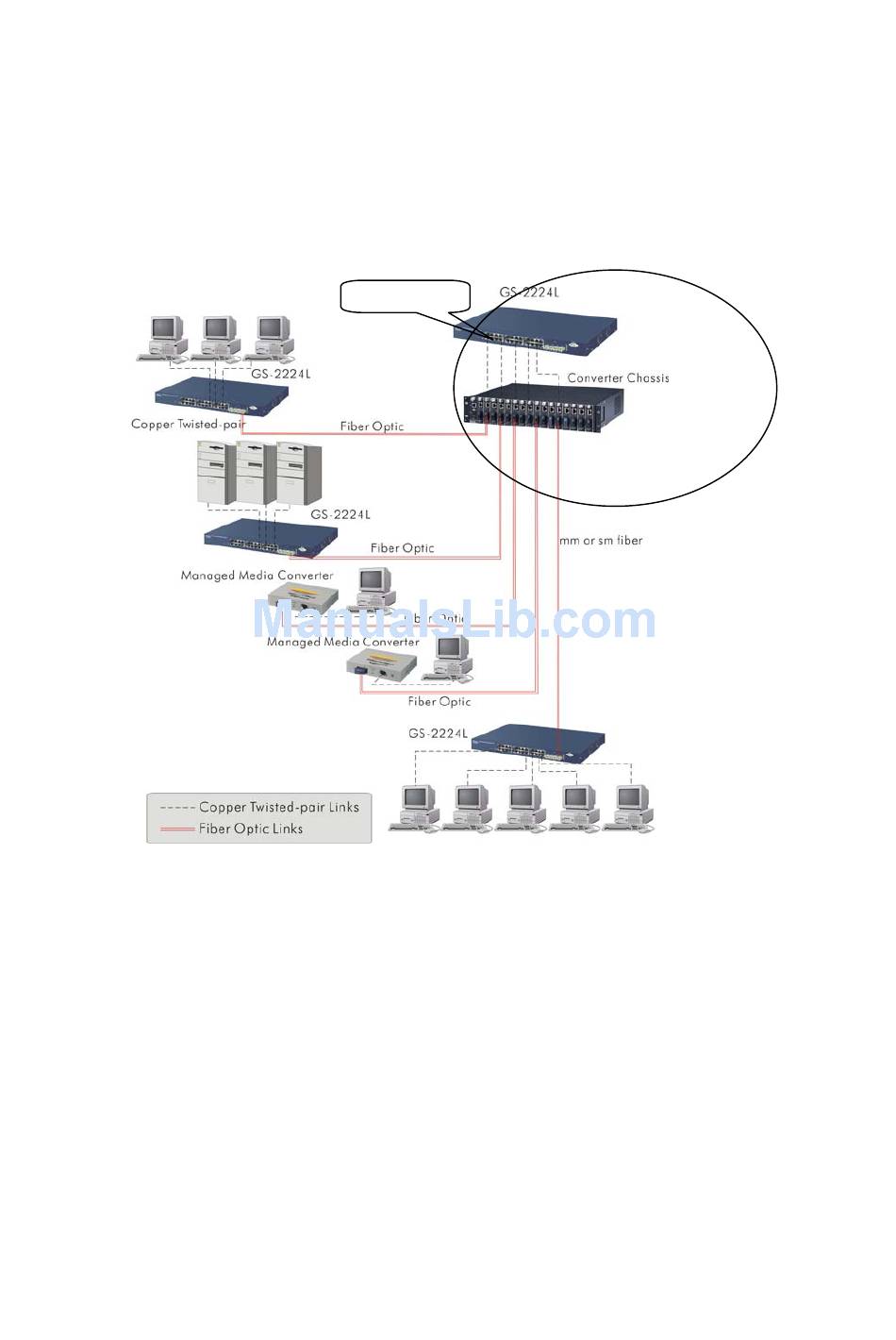

Fig. 2-13 Network Connection between Remote Site and Central Site
Fig. 2-13 is a system wide basic reference connection diagram. This diagram
demonstrates how the switch connects with other network devices and hosts.
Central Site
