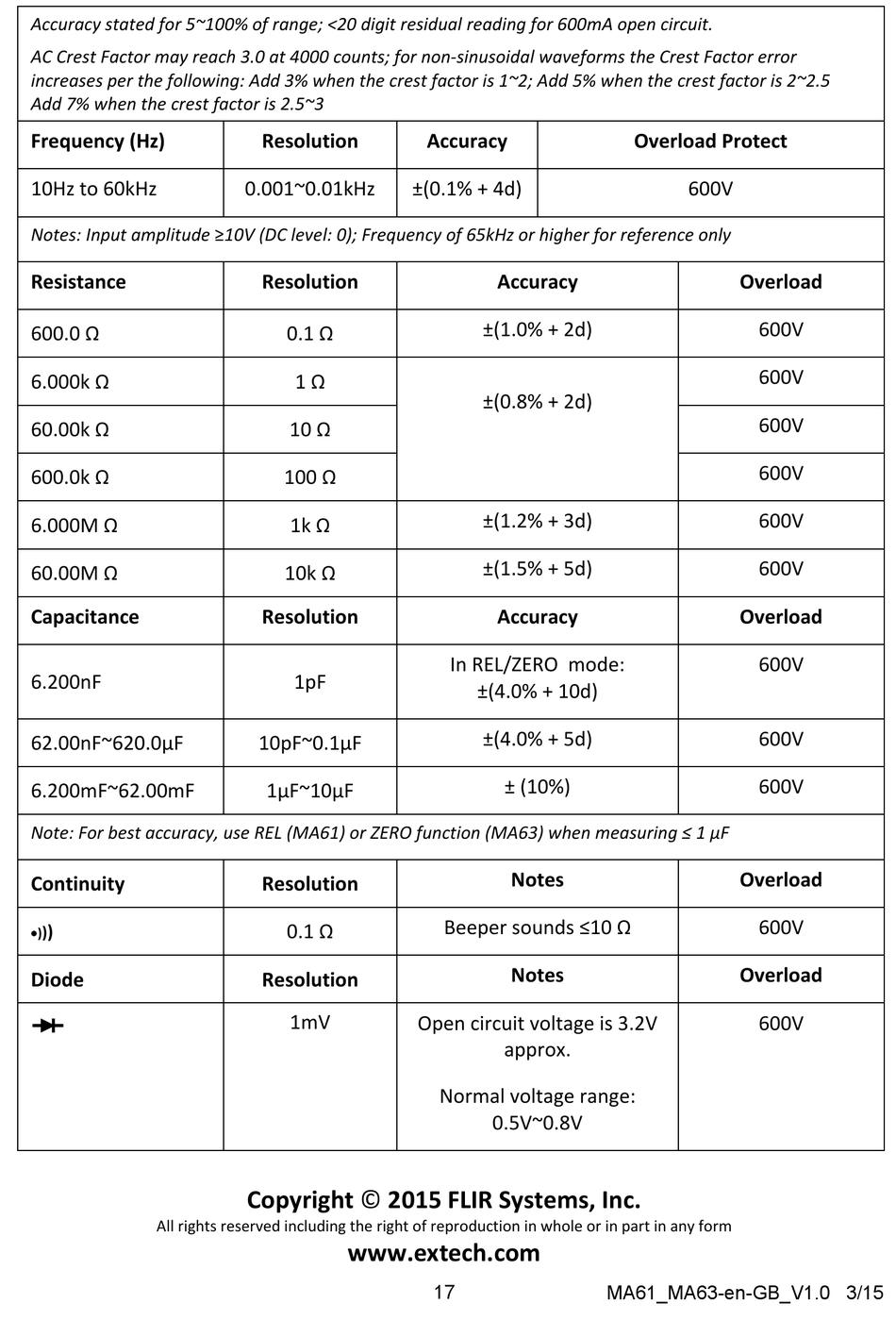

Extech Instruments MA61 User Manual page 17

Accuracy stated for 5~100% of range; <20 digit residual reading for 600mA open circuit.
AC Crest Factor may reach 3.0 at 4000 counts; for non‐sinusoidal waveforms the Crest Factor error
increases per the following: Add 3% when the crest factor is 1~2; Add 5% when the crest factor is 2~2.5
Add 7% when the crest factor is 2.5~3
Frequency (Hz)
10Hz to 60kHz
Notes: Input amplitude ≥10V (DC level: 0); Frequency of 65kHz or higher for reference only
Resistance
600.0 Ω
6.000k Ω
60.00k Ω
600.0k Ω
6.000M Ω
60.00M Ω
Capacitance
6.200nF
62.00nF~620.0µF
6.200mF~62.00mF
Note: For best accuracy, use REL (MA61) or ZERO function (MA63) when measuring ≤ 1 µF
Continuity
) )
)
Diode
All rights reserved including the right of reproduction in whole or in part in any form
Resolution
0.001~0.01kHz ±(0.1% + 4d)
Resolution
0.1 Ω
1 Ω
10 Ω
100 Ω
1k Ω
10k Ω
Resolution
1pF
10pF~0.1µF
1µF~10µF
Resolution
0.1 Ω
Resolution
1mV
Copyright © 2015 FLIR Systems, Inc.
www.extech.com
Accuracy
Accuracy
±(1.0% + 2d)
±(0.8% + 2d)
±(1.2% + 3d)
±(1.5% + 5d)
Accuracy
In REL/ZERO mode:
±(4.0% + 10d)
±(4.0% + 5d)
± (10%)
Notes
Beeper sounds ≤10 Ω
Notes
Open circuit voltage is 3.2V
approx.
Normal voltage range:
0.5V~0.8V
17
Overload Protect
600V
Overload
600V
600V
600V
600V
600V
600V
Overload
600V
600V
600V
Overload
600V
Overload
600V
