suprema BEWI Operation Description

Compact outdoor fingerprint reader/controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

BEWI

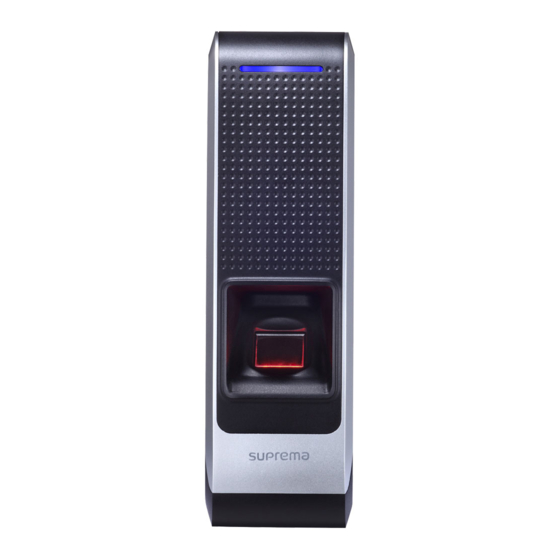

Compact Outdoor Fingerprint Reader/Controller
Operation Description
www.supremainc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEWI and is the answer not in the manual?

Questions and answers

Related Manuals for suprema BEWI

Summary of Contents for suprema BEWI

  • Page 1 BEWI Compact Outdoor Fingerprint Reader/Controller Operation Description www.supremainc.com...

  • Page 2: Basic Components

    BioEntry W Components Basic Components Wall Mount Screws (2) Main Unit Mounting Screws (2) Software CD (1) Wall Mounting bracket (1) BioEntry W C opyright 2007 Suprema Inc. Ⓒ...

  • Page 3: Optional Accessories

    BioEntry W Components Optional Accessories Secure I/O 12VDC Power Adaptor Plastic Stand USB Fingerprint Scanner C opyright 2007 Suprema Inc. Ⓒ...

  • Page 4: Product Description

    Server. sensor. Flicker Red Color per Unit Malfunction. Contact Your 2sec Suprema Dealer/Distributor. Flicker Yellow Color Waiting for an Input per 2sec Flicker Yellow Color Requesting IP Address from per 1sec the DHCP Server. C opyright 2007 Suprema Inc. Ⓒ...
  • Page 5 Ethernet Connector Input Cables Relay Cables Relay Cables Network Status LED Network Reset Switch See "Resetting Network Settings (page 28)" for more details. Star-shaped screw hole for fixing a body to a metal bracket C opyright 2007 Suprema Inc. Ⓒ...
  • Page 6 BioEntry W Dimensions BioEntry W Wall Mounting Bracket 50 mm 44 mm 40 mm 157 mm 172 mm 172 mm C opyright 2007 Suprema Inc. Ⓒ...

  • Page 7: Cable Specifications

    485 TRXN YELLOW/WHITE STRIPE 485 TRXP BLUE/WHITE STRIPE 485 GND BLACK/WHITE STRIPE WIEGAND GND WHITE/BLACK STRIPE WIEGAND D1 WHITE WIEGAND D0 GREEN PINK RELAY NC ORANGE/WHITE STRIPE RELAY COM GREEN/WHITE STRIPE RELAY NO GRAY/WHITE STRIPE C opyright 2007 Suprema Inc. Ⓒ...

  • Page 8: Installation

    1. Fix the wall mounting bracket on a wall by 3. Fix the device to the wall mounting bracket using the using wall mounting screws. star-shaped screws. 2. Hook the device on the wall mount bracket. Star-shaped screw screw Wall Mount Screws C opyright 2007 Suprema Inc. Ⓒ...

  • Page 9: System Configurations

    BioEntry W System Configurations Standard Door Sensor Door Lock Door Lock Exit Button Exit Button BioEntry W USB Fingerprint Scanner C opyright 2007 Suprema Inc. Ⓒ...
  • Page 10 BioEntry W System Configurations Secure (Secure I/O) RS485 Door Sensor Door Lock Exit Button Secure I/O BioEntry W USB Fingerprint Scanner C opyright 2007 Suprema Inc. Ⓒ...
  • Page 11 Door Zone 1 (Anti-passback) RS485 RS485 Secure I/O FaceStation BioEntry W BioEntry W PC Server USB Fingerprint Scanner PC Client Exit Button FaceStation Secure I/O BioEntry W RS485 PC Client Door Zone 2 (Anti-passback) C opyright 2007 Suprema Inc. Ⓒ...

  • Page 12: Power Connection

    D C P o w e r S u p p l y (Optional) Recommended Power Specifications 1 0%, at least 500mA. ± − Comply with standard IEC/EN 60950-1. − When sharing power with other devices, use a power supply with a higher current rating. − C opyright 2007 Suprema Inc. Ⓒ...
  • Page 13 The device can be connected with a regular hub or PoE hub by connecting the Ethernet cable to the Ethernet terminal. PoE(Power over Ethernet) is an Ethernet connection of which the power is supplied from PSE(Power Sourcing Equipment) satisfying the IEEE802.3af standard. Ethernet Hub C opyright 2007 Suprema Inc. Ⓒ...
  • Page 14 BioEntry W Connections Ethernet Connection (Direct connection with PC) Use a standard CAT-5 cable to connect the device directly to a PC. BioEntry W supports auto MDI/MDIX, therefore a crossover cable is not necessary. C opyright 2007 Suprema Inc. Ⓒ...
  • Page 15 Adjust the communication speed as needed. The signal quality vary depending on wiring conditions, and it may be − necessary to lower the baudrates. The GND signal may be omitted if and only if the GND potential difference is less than 5 V. ± − C opyright 2007 Suprema Inc. Ⓒ...
  • Page 16 Notes For bus termination, only the devices at both ends of the bus should be terminated. − Maximum numbers of devices in an RS485 loop are two(2) Suprema devices and four Secure I/Os. − C opyright 2007 Suprema Inc. Ⓒ...

  • Page 17: Relay Connection - Fail Safe Lock

    BioEntry W Connections Relay Connection – Fail safe lock BioEntry W (20) Relay NO (Gray/White Stripe) (19) Relay COM (Green/White Stripe) (18) Relay NC (Orange/White Stripe) Deadbolt / Door strike Power supply C opyright 2007 Suprema Inc. Ⓒ...

  • Page 18: Relay Connection - Fail Secure Lock

    BioEntry W Connections Relay Connection – Fail secure lock BioEntry W (20) Relay NO (Gray/White Stripe) (19) Relay COM (Green/White Stripe) (18) Relay NC (Orange/White Stripe) Deadbolt / Door strike Power supply C opyright 2007 Suprema Inc. Ⓒ...

  • Page 19: Relay Connection - Automatic Door

    BioEntry W Connections Relay Connection - Automatic door RTE Switch Presence Detector BioEntry W (20) Relay NO (Gray/White Stripe) Automatic RTE Switch (19) Relay COM (Green/White Stripe) Door (18) Relay NC (Orange/White Stripe) C opyright 2007 Suprema Inc. Ⓒ...
  • Page 20 Digital Input Connection (RTE/ Door sensor) BioEntry W (13) 485 GND (Black/White Stripe) (13) 485 GND (Black/White Stripe) Input 1 (Brown) (13) 485 GND (Black/White Stripe) Door Status Input 0 (Purple) Request TO Exit C opyright 2007 Suprema Inc. Ⓒ...

  • Page 21: Digital Input Connection (Alarm/ Emergency Switch)

    Connections Digital Input Connection (Alarm/ Emergency switch) BioEntry W (13) 485 GND (Black/White Stripe) (13) 485 GND (Black/White Stripe) Input 1 (Brown) (13) 485 GND (Black/White Stripe) Switch #1 Input 0 (Purple) Switch #2 C opyright 2007 Suprema Inc. Ⓒ...

  • Page 22: Wiegand Input

    Wiegand D1 (15) Wiegand D1 (White) Wiegand D0 (16) Wiegand D0 (Green) Wiegand Output Controller BioEntry W (14) Wiegand GND (White/Black Stripe) Wiegand D1 (15) Wiegand D1 (White) Wiegand D0 (16) Wiegand D0 (Green) C opyright 2007 Suprema Inc. Ⓒ...

  • Page 23: Resetting Network Settings

    Network Default Setting TCP/IP Address : 192.168.0.1 Not checked “Use Server” RS-485 : PC Connection, 115200bps Modify then save the TCP/IP or RS485 settings. Reboot the device. Network Reset Confirm the new settings. Switch C opyright 2007 Suprema Inc. Ⓒ...

  • Page 24: Electrical Specifications

    Wiegand Output The outputs ports are open drain type, pulled up Pull-up resistance ( ) 4.7k with 4.7k resistors internally. 30V DC Switching capacity (A) 125V AC Switching power Relay (resistive) 37.5VA Switching voltage (V) C opyright 2007 Suprema Inc. Ⓒ...

  • Page 25: Operation Diagram

    BioEntry W Operation Diagram C opyright 2007 Suprema Inc. Ⓒ...
  • Page 26 경기도 성남시 분당구 정자동 파크뷰 오피스타워 16층 Tel : 031-783-4510 Tel : 031-783-4510 Fax : 031-783-4503 온라인고객지원 : sales@suprema.co.kr 회사홈페이지 : www.suprema.co.kr 제품홈페이지 : www.biostation.co.kr BioEntry Plus 의 기 능 및 사 양 은 제 품 의 품 질 향 상 이 나 기 능 수 정 등 으 로 인 해 예 고 없 이 변 경 될 수 있 습 니 다...
