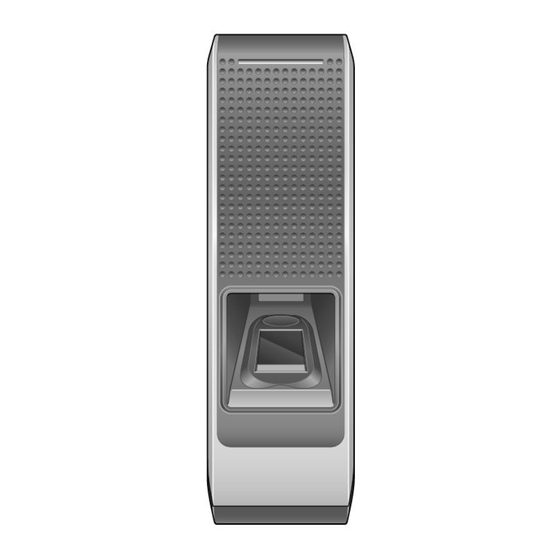

BioEntry W
Compact Outdoor Fingerprint Reader/Controller
Installation Guide
EN 101.00.BEW V1.30
www.supremainc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the bioentry w and is the answer not in the manual?

Questions and answers

Related Manuals for suprema bioentry w

Summary of Contents for suprema bioentry w

  • Page 1 BioEntry W Compact Outdoor Fingerprint Reader/Controller Installation Guide EN 101.00.BEW V1.30 www.supremainc.com...
  • Page 2  Do not disassemble, repair or reconstruct the device. Usage Contact your nearest Suprema dealer for technical support.  Do not drop or apply any physical shock/impact to the device.  Only use the device its intended use.

  • Page 3: Table Of Contents

    About Fingerprint Recognition Contents How to Enroll a Fingerprint on the Device Components Product Description Dimensions Cable Specifications Installation System Configurations Connections Resetting Network Settings Electrical Specifications Product Specifications Troubleshooting Precautions for Device cleaning FCC Rules ‹#› ⒸCopyright 2007 Suprema Inc.

  • Page 4: About Fingerprint Recognition

    Suprema’s Personal Information Protection Technology To avoid privacy concern, Suprema’s fingerprint products do not save fingerprint images itself. It is impossible to reconstruct a fingerprint image from a fingerprint template which is just numeric data of the features of a fingerprint.

  • Page 5: How To Enroll A Fingerprint On The Device

    BioEntry W How to Enroll a Fingerprint on the Device Suprema's fingerprint products have outstanding recognition performance regardless of the user's fingerprint condition or positioning. However pay careful attention to the following instructions to maximize the performance of the device.
  • Page 6  If a finger is dry, breathe warm air onto the finger then try the scan again. Solving Authentication Difficulties  Delete then Re-enroll the finger.  Enroll the same finger multiple times.  Try a different finger with a more vivid fingerprint.  Enroll various fingers for each user. ⒸCopyright 2007 Suprema Inc.

  • Page 7: Components

    BioEntry W Components Basic Components  Diode (1) Wall Mount Screws (2) Main Unit Mounting Screws (2) BioEntry W Software CD (1) Wall Mounting bracket (1) ⒸCopyright 2007 Suprema Inc.
  • Page 8 BioEntry W Components Optional Accessories  Secure I/O 12VDC Power Adaptor Plastic Stand USB Fingerprint Scanner ⒸCopyright 2007 Suprema Inc.

  • Page 9: Product Description

    Place a finger on the surface of the  Server. sensor. Flicker Red Color per Unit Malfunction. Contact Your 2sec Suprema Dealer/Distributor. Flicker Yellow Color Waiting for an Input per 2sec Flicker Yellow Color Requesting IP Address from per 1sec the DHCP Server. ⒸCopyright 2007 Suprema Inc.
  • Page 10 Ethernet Connector  Input Cables  Relay Cables  Network Status LED  Network Reset Switch See "Resetting Network Settings (page 28)" for more details.  Star-shaped screw hole for fixing a body to a metal bracket ⒸCopyright 2007 Suprema Inc.

  • Page 11: Dimensions

    BioEntry W Dimensions BioEntry W Wall Mounting Bracket   50 mm 44 mm 40 mm 157 mm 172 mm 172 mm ⒸCopyright 2007 Suprema Inc.

  • Page 12: Cable Specifications

    GREEN 485 TRXN YELLOW/WHITE STRIPE 485 TRXP BLUE/WHITE STRIPE 485 GND BLACK/WHITE STRIPE WIEGAND GND WHITE/BLACK STRIPE WIEGAND D1 WHITE WIEGAND D0 GREEN PINK RELAY NC ORANGE/WHITE STRIPE RELAY COM GREEN/WHITE STRIPE RELAY NO GRAY/WHITE STRIPE ⒸCopyright 2007 Suprema Inc.

  • Page 13: Installation

    1. Fix the wall mounting bracket on a wall by 3. Fix the device to the wall mounting bracket using the using wall mounting screws. star-shaped screws. 2. Hook the device on the wall mount bracket. Star-shaped screw Wall Mount Screws ⒸCopyright 2007 Suprema Inc.

  • Page 14: System Configurations

    BioEntry W System Configurations Standard  Door Sensor Door Lock Exit Button BioEntry W USB Fingerprint Scanner ⒸCopyright 2007 Suprema Inc.
  • Page 15 BioEntry W System Configurations Secure (Secure I/O)  RS485 Door Sensor Door Lock Exit Button Secure I/O BioEntry W USB Fingerprint Scanner ⒸCopyright 2007 Suprema Inc.
  • Page 16 Network  Door Zone 1 (Anti-passback) RS485 RS485 Secure I/O FaceStation BioEntry W BioEntry W PC Server USB Fingerprint Scanner PC Client Exit Button FaceStation Secure I/O BioEntry W RS485 PC Client Door Zone 2 (Anti-passback) ⒸCopyright 2007 Suprema Inc.

  • Page 17: Connections

    DC Power DC Power Supply Supply (Optional) Recommended Power Specifications 12V ±10%, at least 1500mA. − − Comply with standard IEC/EN 60950-1. − Secure I/O, the electrical locking device and access controller must use independent power source. ⒸCopyright 2007 Suprema Inc.
  • Page 18 The device can be connected with a regular hub or PoE hub by connecting the Ethernet cable to the Ethernet terminal. PoE(Power over Ethernet) is an Ethernet connection of which the power is supplied from PSE(Power Sourcing Equipment) satisfying the IEEE802.3af standard. Ethernet Hub ⒸCopyright 2007 Suprema Inc.
  • Page 19 BioEntry W Connections Ethernet Connection (Direct connection with PC)  Use a standard CAT-5 cable to connect the device directly to a PC. BioEntry W supports auto MDI/MDIX, therefore a crossover cable is not necessary. ⒸCopyright 2007 Suprema Inc.
  • Page 20 Adjust the communication speed as needed. The signal quality vary depending on wiring conditions, and it may be necessary to lower the baudrates. The GND signal may be omitted if and only if the GND potential difference is less than ±5V. − ⒸCopyright 2007 Suprema Inc.
  • Page 21 Secure I/O Notes − For bus termination, only the devices at both ends of the bus should be terminated. − Maximum numbers of devices in an RS485 loop are two(2) Suprema devices and four Secure I/Os. ⒸCopyright 2007 Suprema Inc.
  • Page 22 • Take care of the direction of the diode. • Make sure to install the diode near to the door lock. • Make sure to use different power supplies for the BioEntry W and the door lock. • Make sure to install the diode at both ends of the circuit as shown in the figure left in order to protect the relay contact from the reverse current that occurs when the door lock works.
  • Page 23 • Take care of the direction of the diode. • Make sure to install the diode near to the door lock. • Make sure to use different power supplies for the BioEntry W and the door lock. • Make sure to install the diode at both ends of the circuit as shown...
  • Page 24 BioEntry W Connections Relay Connection - Automatic door  RTE Switch Presence Detector BioEntry W (20) Relay NO (Gray/White Stripe) Automatic RTE Switch (19) Relay COM (Green/White Stripe) Door (18) Relay NC (Orange/White Stripe) ⒸCopyright 2007 Suprema Inc.
  • Page 25 BioEntry W Connections Digital Input Connection (RTE/ Door sensor)  BioEntry W (13) 485 GND (Black/White Stripe) Input 1 (Brown) (13) 485 GND (Black/White Stripe) Door Status Input 0 (Purple) Request TO Exit ⒸCopyright 2007 Suprema Inc.
  • Page 26 BioEntry W Connections Digital Input Connection (Alarm/ Emergency switch)  BioEntry W (13) 485 GND (Black/White Stripe) Input 1 (Brown) (13) 485 GND (Black/White Stripe) Switch #1 Input 0 (Purple) Switch #2 ⒸCopyright 2007 Suprema Inc.
  • Page 27 (14) Wiegand GND (White/Black Stripe) Wiegand D1 (15) Wiegand D1 (White) Wiegand D0 (16) Wiegand D0 (Green) Wiegand Output  Controller BioEntry W (14) Wiegand GND (White/Black Stripe) Wiegand D1 (15) Wiegand D1 (White) Wiegand D0 (16) Wiegand D0 (Green) ⒸCopyright 2007 Suprema Inc.

  • Page 28: Resetting Network Settings

    Network Default Setting  TCP/IP Address : 192.168.0.1  Not checked “Use Server”  RS-485 : PC Connection, 115200bps Modify then save the TCP/IP or RS485 settings. Reboot the device. Network Reset Confirm the new settings. Switch ⒸCopyright 2007 Suprema Inc.

  • Page 29: Electrical Specifications

    The input ports are pulled up with 4.7k resistors. TTL/ Wiegand Output The outputs ports are open drain type, pulled up Pull-up resistance (Ω) 4.7k with 4.7k resistors internally. Voltage 24 VDC Relay Current 0.5 A 1.0 A ⒸCopyright 2007 Suprema Inc.

  • Page 30: Product Specifications

    2 TTL Inputs, 1 Relay Output Power 12VDC, PoE (Power over Ethernet) BioEntry W 50 x 172 x 44 mm (W x H x D) General Dimensions Wall Bracket 40 x 157 mm (screw joint included) (W x H) ⒸCopyright 2007 Suprema Inc.

  • Page 31: Troubleshooting

    BioEntry W Troubleshooting Please contact your local dealer/distributor for support or contact Suprema at support@supremainc.com. Please submit the following information and we will coordinate support with your local dealer/distributor. Device model  F/W version of the device  H/W version of the device ...

  • Page 32: Precautions For Device Cleaning

    Use a soft dry towel when removing dust or impurities from the surface of the sensor.  Cleaning the sensor with a detergent, benzene or thinner will damage the surface and disrupt the unit's  ability to properly read a fingerprint. ⒸCopyright 2007 Suprema Inc.

  • Page 33: Fcc Rules

    2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. ⒸCopyright 2007 Suprema Inc.
