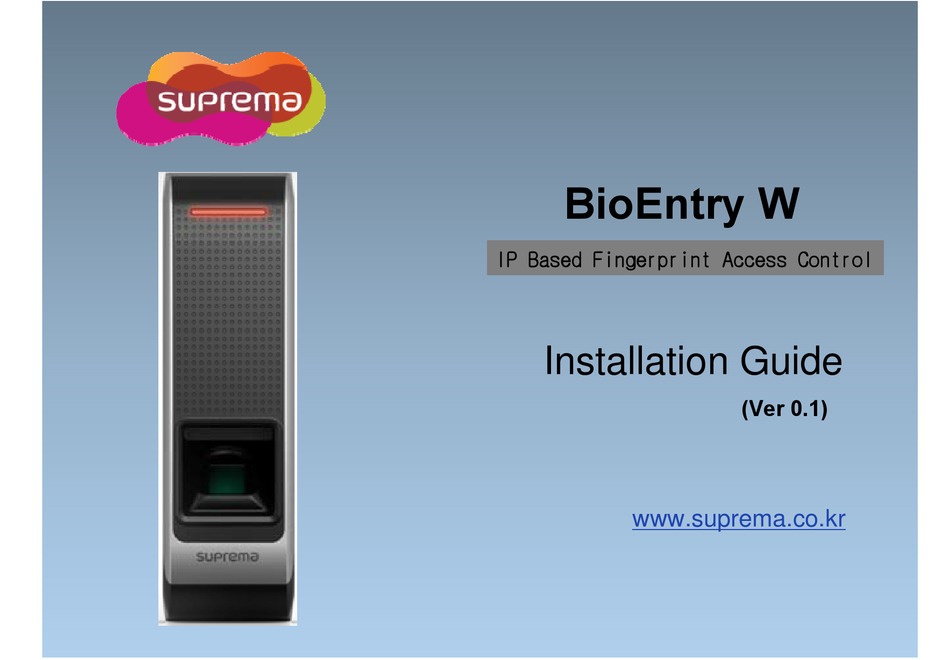

BioEntry W
IP Based Fingerprint Access Control
Installation Guide
(Ver 0 1)
(Ver 0.1)
www.suprema.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioEntry W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for suprema BioEntry W

  • Page 1 BioEntry W IP Based Fingerprint Access Control Installation Guide (Ver 0 1) (Ver 0.1) www.suprema.co.kr...
  • Page 2: Table Of Contents

    Cables and Connectors Installation of Wall-mount Bracket Power Connection Ethernet Connection Ethernet Connection RS485 Connection Relay Connection Digital Input Connection Wiegand Output Network Default Setting Installation Reference Electrical Specification Electrical Specification Troubleshooting Device cleaning FCC Rules Specifications ⒸCopyright 2007 Suprema Inc.
  • Page 3: Safety Precautions

    Be careful not to let liquid like Clean the device often to remove In cleaning, do not splash water dust on it. on the device but wipe it out with water, drinks or chemicals leak smooth cloth or towel. inside the device. ⒸCopyright 2007 Suprema Inc.
  • Page 4 Do not disassemble, repair or alter the device. Do not let children touch the Do not use the device for any Contact your nearest dealer in other purpose than specified. device without supervision. case of a trouble or problem. ⒸCopyright 2007 Suprema Inc.
  • Page 5: Basics Of Fingerprint Recognition

    Fingerprint templates are saved inside the memory of BioStation and used for identification. Secure way to protect personal information To avoid privacy concern, Suprema’s fingerprint products do not save fingerprint images itself. It is impossible to reconstruct a fingerprint image from a fingerprint template which is just numeric data impossible to reconstruct a fingerprint image from a fingerprint template which is just numeric data of the features of a fingerprint.
  • Page 6: How To Place A Finger

    BioEntry W How to place a finger Suprema’s fingerprint products show an outstanding recognition performance regardless of the user’s fingerprint skin condition or the way of fingerprint positioning. However, following tips are recommended to get more optimal fingerprint recognition performance.
  • Page 7 How to place a finger Tips for different fingerprint conditions Suprema’s fingerprint products are designed to scan fingerprint smoothly regardless of the conditions of a finger skin. However, in case a fingerprint is not read well on the sensor, please refer to the followings tips.
  • Page 8: Product Contents D

    BioEntry W Product Contents Basic Contents Wall mounting screws – 2 ea Wall mounting screws 2 ea Star-shaped screws Star shaped screws Star-shaped small wrench Software CD BioEntry W Wall-mounting metal bracket ⒸCopyright 2007 Suprema Inc.
  • Page 9 BioEntry W Product Contents Optional accessories Secure I/O 12V power adaptor USB fingerprint scanner Plastic stand for enrollment on PC ⒸCopyright 2007 Suprema Inc.
  • Page 10: Front Side

    Flicker Blue/Yellow Color per 2sec : DHCP Fail Flicker Red Color per 2sec : Failed. Please contact to your distributor or Suprema Flicker Yellow Color per 2sec : Waiting Input Flicker Yellow Color per 1sec : Receiving IP Address from DHCP server...
  • Page 11: Bottom And Back Side

    RS485 ethernet (TCP/IP) ethernet (TCP/IP) digital input and relay output Network Indicate LED switch : Network Reset it h N t (Refer to “Network Default Setting” pages for details) ⒸCopyright 2007 Suprema Inc.
  • Page 12: Product Dimension

    BioEntry W Product Dimension Front Side Metal Bracket (unit : mm) ⒸCopyright 2007 Suprema Inc.
  • Page 13: Cables And Connectors

    BioEntry W Cables( all cables use the shielded cables) ⒸCopyright 2007 Suprema Inc.
  • Page 14: Installation Of Wall-Mount Bracket

    Fix wall mount bracket on a wall using wall mounting Hook BioEntry W on the wall mount bracket screws screws Wall mounting screws Fix BioEntry W and wall mounting bracket using a star shape screw. Star-shaped screw Star-shaped wrench ⒸCopyright 2007 Suprema Inc.
  • Page 15: Power Connection

    BioEntry W Recommended power supply 12V ± 10% 12V ± 10%, at least 500mA. t 500 A Comply with standard IEC/EN 60950-1. To share the power with other devices, use a power supply with higher current ratings. ⒸCopyright 2007 Suprema Inc.
  • Page 16: Ethernet Connection

    BioEntry W Ethernet Connection ⒸCopyright 2007 Suprema Inc.
  • Page 17 BioEntry W Ethernet Connection (Direct connection with PC) To connect BioEntry W with a PC directly, connect both devices with a straight CAT-5 cable. As the BioEntry W supports auto MDI/MDIX feature, it is not necessary to use a crossover type cable.
  • Page 18: Rs485 Connection

    BioEntry W RS485 Connection for Host Communication (Black/White) (Black/White) (Blue/White) (Yellow/White) (Black/White) (Blue/White) (Yellow/White) ⒸCopyright 2007 Suprema Inc.
  • Page 19 RS485 Connection for Secure I/O (Black/White) (Black/White) (Blue/White) (Blue/White) (Yellow/White) (Yellow/White) (Y ll (Yellow/White) /Whit ) Max number of devices Maximum numbers of devices in an RS485 loop are two(2) devices (BioStation or BioEntry W) and four(4) Secure I/Os ⒸCopyright 2007 Suprema Inc.
  • Page 20: Relay Connection

    BioEntry W Relay Connection – Fail safe lock ⒸCopyright 2007 Suprema Inc.
  • Page 21 BioEntry W Relay Connection – Fail secure lock ⒸCopyright 2007 Suprema Inc.
  • Page 22 Relay Connection - Automatic door RTE Switch Presence Detector BioEntry W Automatic Door (7) N (7) Normally Open / N.O. (Gray/White) ll O / N O (G /Whit ) Door Controller (6) Common (GREEN/White) (5) Normally Closed / N.C. (Orange/White) ⒸCopyright 2007 Suprema Inc.
  • Page 23: Digital Input Connection

    BioEntry W Digital Input Connection (RTE, Door sensor) ⒸCopyright 2007 Suprema Inc.
  • Page 24 BioEntry W Digital Input Connection (Alarm, Emergency sw) BioEntry W (4) SW1 GND (Black/White) (3) SW1 Input (Brown) (2) SW0 GND (Black/White) (1) SW0 Input (Purple) Switch #1 Switch #2 ⒸCopyright 2007 Suprema Inc.
  • Page 25: Wiegand Output

    BioEntry W Wiegand Input/Output Wiegand Input ega d Wiegand Output ⒸCopyright 2007 Suprema Inc.
  • Page 26: Network Default Setting

    In case of forgetting network setting of BioEntry W (TCP/IP or RS-485 setting) during installation or using BioEntry W, user can initialize network setting (TCP/IP or RS-485 setting) by using DIP SW installed on the back panel of BioEntry W. Please refer to the figures in below.
  • Page 27: Installation Reference

    BioEntry W Installation Reference 1 - Stand alone Door Sensor Exit Button Door Lock BioEntry W Enroll Scanner ⒸCopyright 2007 Suprema Inc.
  • Page 28 BioEntry W Installation Reference 2 – Secure RS485 RS485 Door Sensor Door Lock Exit Button Secure I/O BioEntry W Enroll Scanner ⒸCopyright 2007 Suprema Inc.
  • Page 29 RS485 RS485 BioStation BioEntry W BioEntry W Secure I/O PC S PC Server Enroll Scanner ll S PC Client PC Client Exit Button BioStation Secure I/O BioEntry W RS485 PC Client Door Zone 2 (Anti passback) ⒸCopyright 2007 Suprema Inc.
  • Page 30: Electrical Specification

    The outputs ports are open drain type, pulled up with 4.7k resistors P ll Pull-up resistance (Ω) (Ω) 4 7k 4.7k internally Relay 30V DC Switching capacity (A) 125V AC Switching power (resistive) 37.5VA Switching voltage (V) ⒸCopyright 2007 Suprema Inc.
  • Page 31: Troubleshooting

    Device doesn’t operate though power is connected. Check whether a device and a bracket is well connected to each other. If not, a tamper switch is activated and the device doesn’t work activated and the device doesn t work. ⒸCopyright 2007 Suprema Inc.
  • Page 32: Device Cleaning

    , pe o t e su ace dry towel. Note that if the sensor is cleaned by detergent, benzene or thinner, surface is damaged and fingerprint can’t be entered. ⒸCopyright 2007 Suprema Inc.
  • Page 33: Fcc Rules

    Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help Consult the dealer or an experienced radio/TV technician for help ⒸCopyright 2007 Suprema Inc.
  • Page 34: S Specifications Ifi I

    (When sharing the power with a device such as electric door lock, enough power is required considering the power requirement for the connected device.) Card option 13.56MHz Mifare Card Size 50 x 160 x 37 mm (Width x Height x Depth) Certified KCC, CE, FCC ⒸCopyright 2007 Suprema Inc.
  • Page 35 Functions and specifications of the product are subject to changes without notice due to quality enhancement or function update For any inquiry on the product please contact Suprema Inc enhancement or function update. For any inquiry on the product, please contact Suprema Inc.
