Page 2: Important Notices
How to discard a used battery Some FURUNO products have a battery(ies). To see if your product has a battery, see the chapter on Maintenance. Follow the instructions below if a battery is used. Tape the + and - terminals of battery before disposal to prevent fire, heat generation caused by short circuit.
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read these safety instructions before you operate the equipment. Indicates a condition that can cause death or serious injury WARNING if not avoided. Indicates a condition that can cause minor or moderate CAUTION injury if not avoided. Warning, Caution Prohibitive Action Mandatory Action WARNING...
Page 4 SAFETY INSTRUCTIONS WARNING WARNING Keep units other than the radar Do not depend on one navigation antenna away from the rain and device for the navigation of the water. vessel. Fire or electrical shock can occur if Always check your position against all water gets inside the equipment.
Page 5: Table Of Contents
1.12.2 Data cycling....................1-21 1.12.3 How to adjust transparency of the data box..........1-22 1.13 Menu Introduction ....................1-22 1.14 [Display] Menu on the RotoKey Menu (TZT9/TZT14 only) ........1-25 1.15 Function Gesture on the Main Menu................ 1-25 1.16 Language ......................... 1-26 1.17 Boat Icon ........................
Page 6 TABLE OF CONTENTS 2.10 Alarms ........................2-10 2.10.1 XTE alarm ....................2-11 2.10.2 Depth alarm....................2-11 2.10.3 SST alarm ....................2-12 2.10.4 Speed alarm ....................2-12 2.10.5 Anchor watch alarm..................2-13 2.10.6 Alarm menus ....................2-13 2.10.7 How to stop the alarm sound................2-14 2.11 Track.........................2-14 2.11.1 How to show or hide the track display ............2-15 2.11.2 Track interval....................2-15 2.11.3 Track color....................2-15 2.11.4 Track thickness ....................2-18...
Page 7 TABLE OF CONTENTS 4.11 How to Go to a Point ....................4-11 4.11.1 How to go to an on-screen point ..............4-12 4.11.2 How to go to a position selected on screen ..........4-13 4.11.3 How to go to a point selected from the points list......... 4-14 4.11.4 How to display the point information for the active route ......
Page 8 TABLE OF CONTENTS 6.8.1 How to display the range rings ...............6-6 6.8.2 How to set the number of the range rings ............6-6 6.8.3 How to select the range rings mode...............6-7 6.8.4 How to measure the range and bearing with the ruler ........6-8 6.8.5 How to measure the range with the VRM............6-8 6.8.6...
Page 9 TABLE OF CONTENTS 7.2.3 Zoom displays ....................7-3 7.2.4 A-scope display (display only)................ 7-5 7.2.5 Bottom discrimination display................. 7-6 7.3 Automatic Fish Finder Operation ................7-6 7.3.1 How the automatic fish finder operates............7-6 7.3.2 How to select an automatic fish finder mode ..........7-7 7.4 Manual Fish Finder Operation..................
Page 10 TABLE OF CONTENTS 8.5.3 How to mark school of fish ................8-10 8.5.4 How to stop advancement of the display............8-11 8.5.5 How to adjust the echo detection level............8-11 8.5.6 How to calibrate the seabed echo ..............8-11 8.5.7 How to use the noise filter ................8-11 8.5.8 How to use terrain shading................8-12 8.5.9...
Page 11 TABLE OF CONTENTS 12.2.1 Pre-settings ....................12-2 12.2.2 How to download the NavCenter data ............12-3 12.2.3 How to display the NavCenter data.............. 12-4 12.2.4 How to load a weather file................12-5 12.3 Sirius Weather......................12-6 12.3.1 Pre-settings ....................12-6 12.3.2 How to display the Sirius data..............
Page 12: Foreword

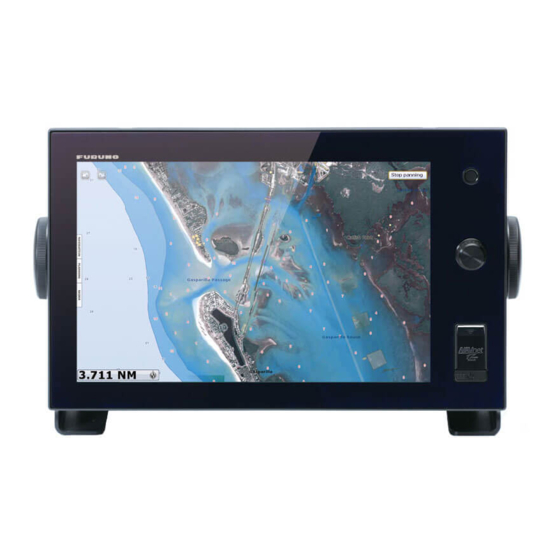

A Word to the Owner of the TZT9, TZT14 and TZTBB Congratulations on your choice of the TZT9, TZT14 and TZTBB Multi Function Display, an integral part of our new NavNet TZtouch series of multi-function displays. We are confident you will see why the FURUNO name has become synonymous with quality and reliability.
Page 13 • CAN bus for the connection of GPS receiver, Weather Station, FI-50 (instrument series), Satel- lite Compass, etc. Program No. • 1950123-04.** ** denotes minor modifications. CE declaration With regards to CE declarations, please refer to our website (www.furuno.com), for further infor- mation about RoHS conformity declarations.
Page 14: System Configuration
Note: When you connect an external monitor to the TZT unit, use a monitor whose aspect ratio is the same as the TZT unit (5:3 for TZT9, 16:10 for TZT14). The pictures may be stretched or shrunk with a different aspect ratio.
Page 15 SYSTEM CONFIGURATION TZTBB DRS6A X-Class/DRS12A X-Class/ DRS4D-NXT DRS25A X-Class Select one of radome or open array sensor. Open Array Radome Radar DRS2D/DRS4D Radar Sensors Sensors DRS4DL DRS4A/DRS6A/DRS12A/DRS25A POWER SUPPLY UNIT* PSU-017 POWER SUPPLY UNIT* PSU-012/PSU-013 12-24 VDC 12-24 24 VDC FCV-1150, BBDS1, DFF series FAR-2xx7 series 12-24 VDC...
Page 16: System Introduction
RotoKey menu.” • The colors mentioned for track, route, point, etc. are the default colors. • This manual states the operation for the home and Rotokey functions based on TZT9/ TZT14. • Most of the screenshots in this manual are for TZT9/TZT14.
Page 17: Controls
1. SYSTEM INTRODUCTION Controls The TZT9/TZT14/TZTBB are operated by key(s) and touch control. You operate the chart plotter, radar, fish finder, etc. with • Key(s) • Touch control • Menus, where you select options • Pop-up menus, where you select options •...
Page 18 Monitor TZTBB Label Function • Turns the power on. • Adjust the brilliance of the display (TZT9/14). • Adjusts the brilliance of the power indicator and the backlighting for the key (TZTBB). • Adjust display hue (TZT9/14). • Turns the power off. (Device or Network) •...
Page 19 1. SYSTEM INTRODUCTION Operation with a finger Function Drag • Pan the charts. • Scroll the menu. Operation with two fingers Operation with two fingers Function Pinch • Zoom in or out the chart scale in the 2D/ 3D modes or weather display.
Page 20 Set the flipswitch for [Lock Touch Screen] to the [ON] position to lock the touch screen, or the [OFF] position to unlock the touch screen. Note: The [Lock Touch Screen] flipswitch is displayed only on TZT9/TZT14.
Page 21: Remote Control Unit (Option)
1.2.1 Remote Control Unit MCU-002 Function STBY•AU- Switches the steering mode of the FURUNO TO key NAVpilot-700 series Autopilot between the STBY and AUTO modes*. CENTER key • Returns your ship to the center of the screen (Plotter/Weather/Radar display).
Page 22: Remote Control Unit Mcu-004
1. SYSTEM INTRODUCTION 1.2.2 Remote Control Unit MCU-004 Function STBY•AUTO Switches the steering mode of the FURUNO NAVpilot-700 series Autopilot between the STBY and AUTO modes*. HOME/BRILL • Short push: Opens the display selection win- dow. • Long push: Opens the Brilliance/Power win-...
Page 23 1. SYSTEM INTRODUCTION Remote Control Unit MCU-004 group setting If multiple NavNet TZtouch2 units are installed in the network, you can the select the display to show on a unit, using the MCU-004. Additionally, you can select the order in which to cycle through the displays. Note: Confirm that there are no duplicate unit nicknames in the network.
Page 24 1. SYSTEM INTRODUCTION (A) TZT9FB_LEFT (B) TZT9FB_RIGHT FLYBRIDGE MCU1 (A) and (B) can be controlled STBY STBY HOME • • AUTO AUTO BRILL FUNC from MCU1. CURS • CENTER SCRL CANCEL (C) TZT14MB_LEFT (D) TZT14MB_RIGHT FLYBRIDGE (C) and (D) can be controlled MCU2 from MCU2.
Page 25: Power On And Off
TZTBB: Adjust the brilliance of the power indicator. Close the window. TZT9/TZT14: Drag the circle icon to adjust the display brilliance. The brilliance level is indicated on the icon. You can also adjust the display brilliance with short press of the key repeatedly.
Page 26: How To Select A Display
2. Do one of the following: • TZT9/TZT14: Rotate the RotoKey to put the required display in the monitor area at the bottom of the screen then push the key. • TZT9/TZT14/TZTBB: Select (tap) the required display. For details, see section 14.2. 1-11...
Page 27: Sd Cards
SD card. The SD Memory Card Formatting Software made by Panasonic is an example. How to set an SD card 1) Pull the tab on the card drive cover to open the card TZT9/TZT14 drive. TZTBB 2) As shown in the right figure, put the SD card in the right card drive with the label right.
Page 28 1. SYSTEM INTRODUCTION • The memory cards in the tables below have been tested: Type Capacity Maker LSD64GCBJP133 64 GB Lexer SD-E064GUA 64 GB TOSHIBA SD6A/64GB 64 GB Kingston RP-SDW32G 32 GB Panasonic SD-E032GUX 32 GB TOSHIBA RP-SDM16GK1K 16 GB Panasonic RP-SDM08GK1K 8 GB...
Page 29: Chart Plotter Introduction
1. SYSTEM INTRODUCTION Chart Plotter Introduction The chart plotter provides a small world map in raster format. A vector chart for the US coastline (with Alaska and Hawaii) is provided also. The plotter section has functions to enter points, and create and plan routes. The chart plotter receives position information supplied from the position-fixing equip- ment like GPS or DGPS.
Page 30: Radar Introduction
1. SYSTEM INTRODUCTION Radar Introduction A radar system operates in the microwave part of the radio frequency (RF) range. The radar detects the position and movement of objects. Objects are shown on the radar display at their measured distances and bearings in intensities according to echo strength.
Page 31: Sounder (Fish Finder) Introduction
1. SYSTEM INTRODUCTION Sounder (Fish Finder) Introduction The sounder (fish finder) display provides a picture of the echoes found by the fish finder. Echoes are scrolled across the screen from the right position to the left position. The echoes at the right position are the current echoes. These echoes can be from separate fish, a school of fish, or the bottom.
Page 32: Rotokey Menus
The main function of the RotoKey is to display the RotoKey menu, which is a set of menu items that change with the operating mode. For TZT9/TZT14, push the RotoKey to display the RotoKey menu then ro- tate the RotoKey to select a menu item.
Page 33: Pop-Up Menus
The pop-up menus shown on the screen Go To depend on the RotoKey mode (see section 14.1). The New Route right figure shows the Chart Plotter pop-up menu for TZT9/TZT14. Lat/Lon ◄ Orientation How to operate a pop-up menu Rotate the RotoKey (or drag the menu items with a finger) to select an item.
Page 34: How To Set And Operate The Data Boxes
1. SYSTEM INTRODUCTION Select [DATA 1], [DATA 2] or [RADAR] of the side menu at the left or right of the screen to show a data box set. To hide a data box set, select [] at the top right-hand corner of the data area.
Page 35 1. SYSTEM INTRODUCTION 2. Select the data to add. The added data appears under the bottommost data box. [Date] is added in the following example. 10:30 AM °M 291.7 10/10/2012 10:30:15 AM You can sort the data boxes by drag and drop. How to delete a data box from a data area Pop-up menu: Select the data box to delete.
Page 36: Data Cycling
1. SYSTEM INTRODUCTION How to switch the indication between analog (graphic) and digital Select the data box for which to switch the indication. The pop-up menu appears. Se- lect [Graphic] to display the analog indication. Deselect [Graphic] to display the digital indication.
Page 37: How To Adjust Transparency Of The Data Box
1. SYSTEM INTRODUCTION 1.12.3 How to adjust transparency of the data box You can adjust the degree of transparency for the data box with the [NavData Trans- parency] slider with [General] of the main menu. The available degree of transparency is 0 - 80(%).
Page 38 1. SYSTEM INTRODUCTION 3. Drag the main menus on the right side of the screen to display a menu desired. The selected menu is indicated with a yellow highlight. The sub menus for the se- lected menu appear. Below is an example screen for the [Radar] menu. Select [Close] to exit menu.
Page 39 1. SYSTEM INTRODUCTION • Numerical value with the software keyboard icon ( ): Select (tap) the menu to open the software keyboard. Set the value then select [Confirm]. Confirm Cancel • Color icon: Select (tap) the menu to open the options. Select (tap) the option desired.
Page 40: Display] Menu On The Rotokey Menu (Tzt9/Tzt14 Only)
1. SYSTEM INTRODUCTION 1.14 [Display] Menu on the RotoKey Menu (TZT9/ TZT14 only) [Display] on the RotoKey menu is common for all displays. [NavData]: Open the data boxes (see section 1.12). [Menu]: Open the main menu (see section 1.13). [Lists]: Open the lists menu (see section 1.13 and section 4.7).
Page 41: Language
1. SYSTEM INTRODUCTION [Event]: Record an event to the logbook. The selected mark is put at the position at the time the screen was tapped to open the [Creating Event] window (see paragraph 4.2.2) Creating Event Cancel [MOB]: Record MOB position to the logbook (see section 1.18). [Home]: Open the display selection window (see section 1.5) and display the menu icon bar (see section 1.13).
Page 42: Boat Icon
1. SYSTEM INTRODUCTION 1.17 Boat Icon The boat icon marks current position. In the 3D display, you can change the shape of the boat icon to match your ship. In the 2D display, the boat icon can not be changed and is red.
Page 43 1. SYSTEM INTRODUCTION 2. Select the [General] - [Function Gesture] menu. Function Gesture Event None Screen Capture Event Home 3. Select [MOB]. 4. Select [Close] to exit the menu. 5. Tap the screen with two fingers on the chart plotter display or the radar display. The area around the boat icon is zoomed in.
Page 44 1. SYSTEM INTRODUCTION How to go to a MOB mark Select a MOB mark to go to then select [Go To] from the pop-up menu. XTE lines Green: Starboard Red: Port How to delete a MOB mark Open the pop-up menu, then select [Stop Nav]. Select the MOB mark to display the pop-up menu, then select [Delete].
Page 45: Facsimile Receiver Fax-30
1.19 Facsimile Receiver FAX-30 The FURUNO Facsimile Receiver FAX-30 installs in the TZT network and can be con- trolled from a TZT display. Below are the steps to start fax operation. 1. At the installation of this equipment, connect the FAX-30 to the TZT.
Page 46: Ais Transponder Fa-30, Fa-50
1. SYSTEM INTRODUCTION 1.20 AIS Transponder FA-30, FA-50 The FURUNO AIS Transponder FA-30 (or FA-50) installs in the TZT network and can be controlled from a TZT display. To access the main menu of the transponder, do the following: 1. At the installation of this equipment, connect the FA-30 (or FA-50) to the TZT.
Page 47: Dsc Message Information
1. SYSTEM INTRODUCTION 1.21 DSC Message Information The DSC (Digital Selective Calling) message information feature provides, on the chart plotter and radar displays, the MMSI no. and position* of the ships that have transmitted a DSC message to you. A hexagon-shaped marker marks a ship’s posi- tion.
Page 48: The Dsc List
1. SYSTEM INTRODUCTION Target Info Nickname ABCDEF MMSI 333336789 263.4°M 1.5 kn Range 2.101 NM Bearing 210.4° Time 9’34s Position N 47°47.692’; W122°29.653’ Nature of Distress Distress Detailed information 1.21.5 The DSC list When you receive a DSC message, it is automatically registered to the DSC list. To help you identify a ship quickly on the chart plotter and radar displays, you can replace the MMSI no.
Page 49: Wireless Lan Settings
1. SYSTEM INTRODUCTION 1.22 Wireless LAN Settings You can connect to the internet with the wireless LAN signal to download weather in- formation (see chapter 12) and to connect to an iPhone, iPod or iPad. To download weather information, connect the existing LAN network. To connect to an iPhone, iPod or iPad, create a local wireless network.
Page 50 1. SYSTEM INTRODUCTION 5. Select the [ON] icon in [Wireless]. Note: You can use the wireless LAN function when the internal temperature of the equipment inside is detected with the temperature sensor and is over 0°C. The [ON] icon in [Wireless] is grayed out if the equipment does not meet the above re- quirement.
Page 51 1. SYSTEM INTRODUCTION 1. Select [Create local network] in [Wireless Mode]. Wireless LAN Settings Wireless Wireless Mode Create local network Create local Wireless network NAVNETTZT 2. Select [SSID] to open the software keyboard. 3. Enter the SSID then select [Confirm]. 4.
Page 52 1. SYSTEM INTRODUCTION Invalid password : Only 5 or 13 characters allowed. For [WEP] Invalid password : Password must be at least 8 characters and cannot exceed 63 characters. For [WPA2 - PSK] Select [Ok] then reenter the correct password. 8.
Page 53: Software Update
1. SYSTEM INTRODUCTION 1.23 Software Update You can update the software via the internet. See section 1.22 about the internet con- nection. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [General]. 3. Select the [Update] icon in [Check for Software Update]. The following messages appear in order.
Page 54: How To Create A My Timezero ™ Account, Login To Your My Timezero ™ Account
1. SYSTEM INTRODUCTION ™ 1.25 How to Create a My TimeZero Account, Login ™ to Your My TimeZero Account ™ You will need to create a My TimeZero account to access the cloud and My Friends (social network) functions. Prepare a PC or mobile device to complete the registration. 1.
Page 55 1. SYSTEM INTRODUCTION 7. Click [Get started!] to finish. Your name Your e-mail address 8. From a PC or mobile device, follow the link provided in the e-mail to log into your account. At this time do not operate the equipment. 9.
Page 56: Chart Plotter
CHART PLOTTER This chapter shows you how to do the following: • Use and prepare the chart plotter • Set chart plotter related alarms • Control the track Chart Type A world map in raster chart format is included in your unit. A vector chart for the US coastline (Alaska and Hawaii included) is provided also.
Page 57: Chart Scale
Chart scale North indicator Chart scale box How to zoom in or out the chart scale TZT9/TZT14: Rotate the RotoKey or pinch the chart screen. Zoom in Zoom out TZTBB: Pinch the chart screen. Or tap the chart scale box at the bottom right-hand corner of the screen to display the slider bar.
Page 58: How To Move The Chart
2. CHART PLOTTER [Head Up]: Displays the chart with the current compass heading of your ship at the top of the screen. The heading data from a compass is required. When the heading changes, the boat icon remains fixed, and the chart picture rotates ac- cording to heading.
Page 59 2. CHART PLOTTER Heading line To display the heading line, do as follows: 1. Select the boat icon to display the pop-up menu. 2. Select [Heading Line]. COG vector To display the COG vector and the turn direction, do as follows: 1.
Page 60: How To Find The Range And Bearing To A Location
2. CHART PLOTTER 6. Select [COG/SOG Predictor Time] then select the time for COG/SOG predictor. COG/SOG Predictor Time 00:02:00 00:00:10 00:00:30 00:01:00 00:02:00 00:05:00 7. Select [Close] to exit the menu. Orientation You can select the orientation of the boat icon. 1.
Page 61: Chart Object Information
2. CHART PLOTTER 3. Select the 2nd location. A dashed line runs between the start location and the 2nd location. The range and bearing to the 2nd location are shown. 8.765NM 8.765NM Range and bearing from starting 76.4°M 76.4°M location to the 2nd location M: Magnetic 2nd location Starting location...
Page 62: Multiple Chart Plotter Displays
2. CHART PLOTTER Multiple Chart Plotter Displays A maximum of three chart plotter displays can be shown on one screen. The multiple chart plotter displays let you see the conditions around your ship on both short and long ranges. Also, you can see how your ship moves toward your destination from more than one angle.
Page 63: Cartographic Text And Objects On Vector Charts
2. CHART PLOTTER Cartographic Text and Objects on Vector Charts This section shows you how to show or hide the cartographic objects and text infor- mation that appear on the vector charts. 2.9.1 Control visibility of text and object information The [Vector Chart] menu controls the visibility of text and object information, for exam- ple, buoy names and light description.
Page 64: Control Visibility Of Cartographic Objects
2. CHART PLOTTER [Text (Other)]: Show or hide the other text information. [Display Buoy Names]: Show or hide the buoy names. [Display Light Description]: Show or hide the light descriptions. [Display Light Sectors]: Show or hide light sectors for fixed beacons. [Display Routes]: Show or hide routes.
Page 65: Alarms
2. CHART PLOTTER [S-52 Vector Chart Display Mode]: Set the level of information to show on the chart. The selections are [Custom], [Base], [Standard], [Other], and [Fishing]. The chart fea- tures are turned on or off according to setting. Note: The following menu items except [Reset Default Settings] are unavailable when you select the mode other than [Custom].
Page 66: Xte Alarm
2. CHART PLOTTER How to open the [Alarm] menu 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Alarm]. Hardware Alarm XTE Alarm Speed Alarm Depth Alarm 10.0 kn Speed Alarm Value Depth Alarm Value 30.0 ft Speed Alarm Output Sea Surface Temperature Alarm...
Page 67: Sst Alarm
2. CHART PLOTTER 2.10.3 SST alarm The sea surface temperature alarms tells you when the sea surface temperature is over, under, within, or out of range of the temperature you set. Requires a temperature sensor. 1. Select [Sea Surface Temperature Alarm] from the [Alarm] menu. Sea Surface Temperature Alarm Over Under...
Page 68: Anchor Watch Alarm
2. CHART PLOTTER 3. Select [Speed Alarm Value] to display the software keyboard. 4. Set the value for [Under] or [Over] then select [Confirm]. 5. If you output the speed alarm from this equipment, select the [ON] icon in [Speed Alarm Output].
Page 69: How To Stop The Alarm Sound
2. CHART PLOTTER [Alarm Sound]: Activate ([Sound 1 (2, 3)]) or deactivate ([Off]) the alarm buzzer. Alarm Sound Sound 1 Sound 1 Sound 2 Sound 3 [Sound Alarm Until Acknowledged]: Turn this item on to sound the aural alarm until an alarm is acknowledged (see paragraph 2.10.7).
Page 70: How To Show Or Hide The Track Display
2. CHART PLOTTER 2.11.1 How to show or hide the track display 1. Select [Overlay] from the RotoKey menu. 2. To show the track, select [Tracks]. To hide the track, deselect [Tracks]. 2.11.2 Track interval In drawing the track, the position of your ship is stored into the memory of this unit at an interval of time.
Page 71 2. CHART PLOTTER From the main menu 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Ship & Track] - [Track Color] menu. Track Color Fixed Fixed Variable 3. Select [Fixed] or [Variable]. For [Fixed], go to the next step. For [Variable], go to step 5.
Page 72 2. CHART PLOTTER [Depth]: Set the color for each depth range. For example, when the red icon is se- lected in [Color 1], the track is red for depths from 5 to 10 ft. [SST]: Set the color for each range of sea surface temperature. For example, when the blue icon is selected in [Color 1] (temperature range: 10 to 15°F), the track is blue for temperatures from 10 to 15°F.
Page 73: Track Thickness
2. CHART PLOTTER when the blue icon is selected in [Color 1] (temperature range: 10 to 15°F), the track is blue for temperatures from 10 to 15°F. [Speed]: Set the color for each speed range. For example, when the blue icon is selected in [Color 1], the track is blue for speed from 0 to 5 kn.
Page 74: How To Turn On The Automatic Deleting Of Tracks
2. CHART PLOTTER 3. Select [Delete] in [Delete All Tracks]. The confirmation message appears. Are you sure you want to delete all tracks? Important : all Navnet TZT have to be connected for this operation. 4. Select [Yes]. 5. Select [Close] to exit the menu. 2.11.6 How to turn on the automatic deleting of tracks The internal memory stores a maximum of 30,000 track points.
Page 75 2. CHART PLOTTER To use the trackback feature, select the active track to display the pop-up menu. Se- lect [Track Back] to start operation as shown below. • A yellow line runs between your ship and the destination (the shortest course). •...
Page 76: Navpilot-700 Series Auto Pilot
2. CHART PLOTTER 2.12 NAVpilot-700 Series Auto Pilot The FURUNO NAVpilot-700 Series Auto Pilot installs in the TZT network. The follow- ing functions can be controlled from a TZT display: • Displaying the NAVpilot-700 series data in the data boxes.
Page 77 2. CHART PLOTTER 10:30 AM Mode Auto (Adv) STBY °M 36.1 36.1 36.1 72.81 36.1 72.81 72.81 2.88 2. Adjust the CTS line by the following two methods: • Use the course adjustment buttons to adjust the CTS line. Tap the find adjust- ment buttons for 1°...
Page 78 2. CHART PLOTTER 3. Select the compass box to set the STBY mode. The blue line disappears and the indication for the steering modes ([Nav] and [Auto]) appears. 10:30 AM °M 36.1 36.1 72.81 72.81 Note: You can change the steering mode from AUTO to STBY with the pop-up menu.
Page 79 2. CHART PLOTTER The COG vector points to the next route point. The indication for the steering modes ([Nav] and [Auto]) turns to the indication for Next Wpt (waypoint). 10:30 AM Mode Nav (Eco) 36.1 36.1 72.81 72.81 2. Select the compass box to STBY mode. The indication for the steering modes ([Nav] and [Auto]) appears.
Page 80: Plotter Display Menu
2. CHART PLOTTER 2.13 Plotter Display Menu This section describes the chart plotter menus. To open the following menus, select [Menu] on the menu icon bar then select [Plotter Display]. Day/Night Mode Raster Chart Priority in Auto Mode Chart Boundaries Display Raster Chart Unit Legent Grid Interval 3D Display...
Page 81 2. CHART PLOTTER [Tidal Currents Transparency]: Set the degree of transparency for the tidal currents. [Depth Shading Transparency]: Set the degree of transparency for the depth shading on the water. See paragraph 3.2.1. [Radar Overlay] [Radar Overlay Transparency]: Set the degree of transparency for the radar echo. [Radar Overlay Source]: Select the source for the radar echo from [Antenna Range1] or [Antenna Range2].
Page 82: D Display, Overlays
3D DISPLAY, OVERLAYS 3D Display The 3D display has native 3D chart design that allows full time 3D presentation. This true 3D environment gives you all of the information you require with no restrictions on the information you can see. You can plan your routes, enter points, etc. like on the 2D chart.
Page 83: How To Activate The 3D Display
3. 3D DISPLAY, OVERLAYS 3.1.2 How to activate the 3D display 1. Select [3D] from the RotoKey menu. You Drag upward or downward. can also switch 2D to 3D by dragging two fingers upward or downward. 2. Orientate the 3D display by dragging sideways with two fingers. To switch to 2D, select [2D Mode] at the top right-hand corner of the screen.
Page 84: Overlays
3. 3D DISPLAY, OVERLAYS High gives the highest level of exaggeration. The example below compares the same picture in low and high exaggerations. High exaggeration Low exaggeration 4. Select [Close] to exit the menu. Overlays Radar, satellite photo, depth shading, tide icons, tidal currents, etc. overlays are avail- able on the chart plotter display.
Page 85 3. 3D DISPLAY, OVERLAYS Depth shading settings The depth shading settings are on the [Plotter Display] menu of the main menu. Set these menus by following the description shown below. 0.0 ft 200 ft [Auto Depth Shading Color Scale]: Turn automatic depth shading color scale selection on or off.
Page 86: Satellite Photo Overlay
3. 3D DISPLAY, OVERLAYS [Depth Color Shade]: Select how to display the depth colors among [ClassicHue], [In- vertedClassicHue], [RedHue], [BlueHue], [GreenHue] and [YellowHue]. Depth Color Shade ClassicHue ClassicHue Colors of the rainbow InvertedClassicHue RedHue Shades of red BlueHue GreenHue 3.2.2 Satellite photo overlay You can put the satellite photo for your area on the 2D and 3D displays.
Page 87: Radar Overlay
3. 3D DISPLAY, OVERLAYS 3.2.3 Radar overlay The radar overlay display puts the radar picture on the top of the navigation chart. To display the radar overlay, select [Overlay] from the RotoKey menu then select [Radar]. How to switch between stand-by and TX To transmit, select [Radar] from the RotoKey menu then select [Tx Radar].
Page 88: Tide Icon Overlay
3. 3D DISPLAY, OVERLAYS How to select the echo color Select the [Plotter Display] - [Echo Color for Overlay] menu of the main menu. Select [Multicolor], [Green] or [Yellow]. Echo Color for Overlay Multicolor Multicolor Green Yellow How to acquire a target for ARPA A target can be acquired for ARPA.
Page 89 3. 3D DISPLAY, OVERLAYS How to change the size of the tide icon 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Plotter Display]. 3. Drag the circle icon in [Tide/Current Icons Size] to set size (setting range: 50 to 150%).
Page 90: Tidal Current Overlay
3. 3D DISPLAY, OVERLAYS How to understand the tide graph • Vertical axis: Height, Horizontal axis: Time • The information is mostly accurate under moderate weather conditions. However, storms and weather fronts can influence forecasted tide times and heights. • Drag the time scale at the bottom of the screen sideways then read the tide height at the selected time (drag to the left to display the future information, right for the past information).
Page 91 3. 3D DISPLAY, OVERLAYS How to change the tidal current icon size 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Plotter Display]. 3. Drag the circle icon in [Tide/Current Icons Size] to set size (setting range: 50 to 150%).
Page 92 3. 3D DISPLAY, OVERLAYS How to understand the tidal current graph • Vertical axis: Speed, Horizontal axis: Time • The information is mostly accurate under moderate weather conditions. However, storms and weather fronts can influence forecasted tidal current directions and speeds.
Page 93 3. 3D DISPLAY, OVERLAYS This page is intentionally left blank. 3-12...
Page 94: Points
POINTS About Points In navigation terminology, a point is any location you put on the chart plotter display. A point can be a fishing spot, reference point and other important locations. You can use a point you have entered to set a destination. This unit has 30,000 points into which you can enter position information.
Page 95: How To Put An Event Mark
4. POINTS 4.2.2 How to put an event mark This function is available by touch control when you select [Event] in [General] - [Func- tion Gesture] of the main menu (see section 1.15). 1. Tap the screen with two fingers. Creating Event Cancel You can open the above window from the [Event] RotoKey menu.
Page 96: Default Point Settings
4. POINTS 3. Select an option. [None]: No comment [Date]: Date [SST]: Sea surface temperature [Date And SST]: Date and sea surface temperature 4. Select [Close] to exit the menu. Name Depth 35.7 ft Comment 8/7/2012 11:41:38 AM 73.1°F 115.5 °M Bearing 0.514 NM Range...
Page 97 4. POINTS 2. Select [Points]. Display Points Names Default Point Symbol Default Point Color Point Size Icons Set Modern Points Density Medium Data to Be Recorded in Event Comment None Add Screen Capture to Event Event Configuration Config. Delete All Points & Routes Delete Delete All Event Pictures Delete...
Page 98: How To Move A Point
4. POINTS How to Move a Point You can move a point by two methods, on the screen and from the points list. 4.5.1 How to move a point on the screen 1. Select the point to move. The pop-up menu appears. 2.
Page 99: How To Delete A Point From The Points List
4. POINTS 4.6.2 How to delete a point from the points list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3. Select [Name], [Color], [Icon] or [Range] in the [Sort by] area at the top of the list. [Name]: Points sorted in alphanumeric order [Color]: Points sorted by color in order of red, green, blue, cyan, magenta, black &...
Page 100 4. POINTS 2. To change the name of the point, select [Name] to display the software keyboard. Change the name as follows: 1) Select the character to edit. For example, "1" is selected in the following figure. Alphabet software keyboard Numeric software keyboard Cursor Confirm...
Page 101: How To Edit A Point From The Points List
4. POINTS 4.7.2 How to edit a point from the points list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. Points List 3. Select [Name], [Color], [Icon] or [Range] Sort by : Range Name...
Page 102 4. POINTS 5. To change the name of the point, select [Name] to display the software keyboard. Change the name as follows: 1) Select the character to edit. For example, "1" is selected in the following figure. Alphabet software keyboard Numeric software keyboard Cursor Confirm...
Page 103: How To Find A Point
4. POINTS How to Find a Point You can easily move a point to the center of the screen from the points list. 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3.
Page 104: How To Go To A Point
4. POINTS 4.11 How to Go to a Point Select the point to go to among the three methods shown below. • Select the point on the screen • Select a position on the screen • Select the point from the points list After you have selected a point, you can do the following.
Page 105: How To Go To An On-Screen Point
4. POINTS 4.11.1 How to go to an on-screen point 1. Select the point to display the pop-up menu. 2. Select [Go To]. Arrival area (Appears when Go to point you select [Circle and Cross Line] or [Circle] in the [Routes] - [Waypoint Thick red dashed line: Switching Mode] menu.) Course between the go to...
Page 106: How To Go To A Position Selected On Screen
4. POINTS 4.11.2 How to go to a position selected on screen You can set a position as a point to go to without saving the point. The point is erased when the navigation is cancelled or the power is turned off. 1.
Page 107: How To Go To A Point Selected From The Points List
4. POINTS 4.11.3 How to go to a point selected from the points list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3. Select [Name], [Color], [Icon] or [Range] in the [Sort by] area. 4.
Page 108: How To Display The Point Information For The Active Route
4. POINTS 4.11.4 How to display the point information for the active route 1. Select the yellow line to display the pop-up menu. 2. Select [Rte Detail]. The [Route Detail] window appears. CTS: Course To Steer, TTG: Time To Go 3.
Page 109: How To Cancel Navigation To A Point
4. POINTS 4.12.2 How to cancel navigation to a point 1. Select the go to point, red dashed line or the yellow line of the route, to display the pop-up menu. 2. Select [Stop Nav.]. The red dashed line, yellow line, XTE lines and arrival area circle are erased from the screen.
Page 110: Routes
ROUTES What is a Route? A route is a series of route points entered in the order to use for navigation. A route can contain up to a maximum of 500 route points, and this equipment stores 200 routes. Note: When connecting NavNet 3D units on the LAN network, a route can contain up to a maximum of 100 route points.
Page 111: How To Create A New Route From A Point
5. ROUTES 3. Select the next route point in the route. A blue line with arrow runs between the previous route point and the next route point. The arrow points in the direction of route flow. 4. Select the next route point in the route. Repeat this step to enter all route points.
Page 112: How To Insert A Route Point On A Route
5. ROUTES 4. Select the next route point in the route. Repeat this step to enter all route points. Each route point is numbered. 2nd route point 1st route point (starting point) 4th route point 3rd route point 5. At the last route point, select [End Route] at the top right-hand corner of the screen to complete the route.
Page 113: How To Delete A Point Or Route Point On A Route
5. ROUTES 2. Select [Move]. The selected route point is highlighted. 3. Move the route point to the new position by dragging the route point or tapping the new position. 4. Select [End Move] at the top right-hand corner of the screen. 5.2.5 How to delete a point or route point on a route You can delete a point or route point on a route.
Page 114: How To Split A Route
5. ROUTES 5.2.8 How to split a route You can divide a route in two to make two routes. 1. Select the route leg where to divide the route. The pop-up menu appears. 2. Select [Split]. The selected route leg is deleted and the route is divided. The new route is given the new route name and saved to the routes list.
Page 115 5. ROUTES 3. Select the route to view then select [Edit] or [Route Detail]. The route data ap- pears. Length 2.299NM RTE 2012-03-01 From Edit Route Detail Goto 3/1/2012 RTE 2012-03-01 You can edit the route data in the [Editing Route] window. For detailed information of the editing procedures, refer to section 4.7.
Page 116: How To Join Points To Create A Route
5. ROUTES How to Join Points to Create a Route You can join points which you have entered to create a route from the points list. 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [Points List] to open the points list. 3.
Page 117: How To Delete A Route
5. ROUTES How to Delete a Route You can delete routes separately or together. An active route cannot be deleted. 5.6.1 How to delete a route on the screen 1. Select a route leg of a route to delete. The pop-up menu appears. 2.
Page 118: How To Follow A Route Selected From The Routes List
5. ROUTES 2. Select [Activate]. Arrow marks in direction to follow route Route leg (red line) Arrival area (appears when Boat icon Course to 1st route point you select [Circle and (current position) (thick red dashed line) Cross Line] or [Circle] in the [Routes] - [Waypoint Switching Mode] menu.) The following occurs:...
Page 119: How To Start Navigation From A Route Point
5. ROUTES to get to the 1st route point. The yellow line is the shortest course from the current position to the go to point. • The go to point is numbered as "1". • The arrival area marker appears if activated on the menu (see paragraph 5.9.5). •...
Page 120: How To Show The Detailed Information About A Route
5. ROUTES 5.8.4 How to show the detailed information about a route 1. Select a route leg of the route to get the detailed information. The pop-up menu appears. 2. Select [Rte Detail]. The [Route Detail] window for the selected route opens (see section 5.3).
Page 121: How To Follow A Route In The Reverse Direction
5. ROUTES 5.9.2 How to follow a route in the reverse direction You can follow a route in reverse order. This helps you return along the same path. Note: This function is not available for an active route. 1. Select a route leg to display the pop-up menu. 2.
Page 122: Route Auto Zoom
5. ROUTES 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Routes] - [Waypoint Switching Mode] menu. Waypoint Switching Mode Circle and Cross Line Circle and Cross Line Circle Cross Line 3. Select [Circle and Cross Line], [Circle] or [Cross Line]. For [Circle and Cross Line] or [Circle], go to the next step.
Page 123: End Of Route Notification
5. ROUTES fication message "Waypoint Crossing" appears. Activate or deactivate this feature as follows. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Routes]. 3. Select the [ON] icon in [Waypoint Crossing Notification] to activate this feature, the [OFF] icon to deactivate this feature.
Page 124: Routes Menu
5. ROUTES 5.11 Routes Menu This section provides descriptions for the menu items in [Routes] of the main menu not previously mentioned. Default Route Color Route Thickness Navigate with AutoPilot Autopilot NavData Increment 10.0° Ask to Enter Route Name Great Circle Navigation Fuel Max Range Route Auto Zoom Waypoint Switching Mode...
Page 125 5. ROUTES [Intelligent Route Waypoint Centering]: When you create a route, center a route point each time it is selected on the screen. [Default Planning Route Speed]: Set the planning route speed (see section 5.3). [Reset Default Settings]: Select this menu item to restore default settings for the [Routes] menu.
Page 126: Radar
RADAR This chapter provides the information necessary for radar operation. Transmit, Stand-by Press the Home key (or tap the Home icon) to show the display selection window then select the radar display. Push the RotoKey (or tap the screen) to show the RotoKey menu then select [Tx Radar] to transmit.
Page 127: How To Adjust The Gain
6. RADAR How to Adjust the Gain You can adjust the gain (sensitivity) of the radar receiver. The correct setting shows some background noise on the screen. If you do not use enough gain, weak echoes are erased. If you use more gain than necessary, the background noise hides both weak and strong targets.
Page 128: How To Reduce The Sea Clutter
6. RADAR How to Reduce the Sea Clutter The reflected echoes from waves appear at the central part of the screen and have the name "sea clutter". The sea clutter increases in width as the height of waves and the height of the antenna above the water increase. If the sea clutter is strong, targets can be hidden inside the clutter, like in the left-hand figure shown below.
Page 129: How To Reduce The Rain Clutter
The range and range ring interval appear at the bottom left-hand corner of the screen. Range Range ring interval How to zoom in or out the range scale TZT9/TZT14: Rotate the RotoKey or pinch the radar screen. Zoom in Zoom out...
Page 130: Orientation Mode
6. RADAR TZTBB: Pinch the radar screen. Or tap the radar scale box at the bottom left-hand cor- ner of the screen to display the slider bar. Drag the circle icon to set the range scale. Zoom in Slider bar Current Drag the circle range...
Page 131: How To Measure The Range And Bearing From Your Ship To A Target
6. RADAR How to Measure the Range and Bearing from Your Ship to a Target You can measure the range or bearing to a target by the following four methods. Range measurement Bearing measurement Fixed range rings Ruler VRM (Variable Range Marker) EBL (Electronic Bear- ing Line)
Page 132: How To Select The Range Rings Mode
6. RADAR 6.8.3 How to select the range rings mode To select the range rings mode, select the [Radar] - [Bearing Scale Mode] menu of the main menu then select [Relative] or [True]. Bearing Scale Mode Relative Relative True Head-up mode Heading line North (“0”)
Page 133: How To Measure The Range And Bearing With The Ruler
6. RADAR 6.8.4 How to measure the range and bearing with the ruler Select an object to get the range and bearing. Read the range and bearing in the box. Object Range 3.716 NM 109.5 ° Bearing Range 3.716 NM 109.5 °...
Page 134: How To Measure The Bearing With The Ebl
6. RADAR 6.8.6 How to measure the bearing with the EBL The EBL is a straight dashed line from the center of the screen to the edge. 1. Select [EBL] from the RotoKey menu. 2. Select [Adjust]. Target End EBL Bearing to the target 295.2 º...
Page 135: How To Measure The Range And Bearing Between Two Targets
6. RADAR How to Measure the Range and Bearing Between Two Targets You can measure the range and bearing between any two targets with the [Measure] menu. 1. Select the center of the target A to display the pop-up menu. 2.
Page 136: How To Reduce Radar Interference
6. RADAR 6.12 How to Reduce Radar Interference Radar interference can occur when your ship is near the radar of another ship that operates on the same frequency band with your radar. The interference shows on the screen in many bright dots. The dots can be random or in the shape of dotted lines that run from the center to the edge of the screen.
Page 137: How To Hide The Guard Zone
6. RADAR You can mute the audio alarm by selecting [Off] in the [Alarm] - [Alarm Sound] menu of the main menu (paragraph 2.10.6). 6.13.3 How to hide the guard zone 1. Select [Guard Zone] from the RotoKey menu. 2. Deselect [Visible]. The guard zone disappears from the screen. Note: This operation is available when the guard zone is deactivated.
Page 138: Echo Trails
6. RADAR 6.15 Echo Trails Echo trails show the movements of radar targets relative or true to your ship in imita- tion afterglow. This function helps alert you to possible collision conditions. 6.15.1 How to show or hide echo trails To show the echo trails, select [Echo Trail] from the RotoKey menu.
Page 139: Echo Trail Mode (Reference)
6. RADAR 6.15.4 Echo trail mode (reference) Trail movement can be set for relative or true. The relative trails show the relative movements between targets and your ship. True motion trails show the movements of targets according to the targets over-the-ground speeds and courses. True trails re- quire position and heading information.
Page 140: Echo Trail Shading
6. RADAR 6.15.6 Echo trail shading The echo trail can be shown in gradual shading or monotone (single shade). The fig- ure below is an example when you select blue in the [Radar] - [Trail Color] menu. Object [Single] [Multi] (Monotone shading) (Gradual shading) 1.
Page 141: Sweep Fade
6. RADAR To properly use the echo average function, first suppress the sea clutter. 1. Select [Radar Filters] from the RotoKey menu. 2. Select [Average]. To deactivate the echo average, deselect [Average] at step 2. b) Echo average ON a) Echo average OFF 6.18 Sweep Fade The sweep fade feature automatically reduces the brilliance of weak signals (noise,...
Page 142: How To Show Or Hide The Boat Icon
6. RADAR 6.20 How to Show or Hide the Boat Icon You can show or hide the boat icon on the radar display. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Radar]. 3. Select the [ON] icon to show the boat icon, the [OFF] icon to hide the boat icon in [Own Ship Icon].
Page 143: Radar Overlay Range Link
6. RADAR 6.23 Radar Overlay Range Link The radar overlay range link automatically keeps the chart scale and radar range in sync. This feature helps you understand the relation between the radar and the chart. You can activate or deactivate this feature from [Plotter Display]. See paragraph 3.2.3. Note: The radar picture can look “out of focus”...
Page 144: Target Analyzer
6. RADAR Availability in dual range mode Radar function Magnetron radar Solid state radar Orientation mode (head-up or north-up) Independent Independent Rain clutter Independent Interlocked Range scale control Independent Independent Range max. range scale 36 NM 12 NM Range rings (show, hide) Independent Independent RezBoost...
Page 145: Rezboost
6. RADAR The figure below shows an actual radar image with the target analyzer activated. Approaching target (red) Other than approaching target, rain clutter Rain clutter (green) (blue) How to activate or deactivate the target analyzer Turn [Target Analyzer] on or off from the RotoKey menu or the pop-up menu. How to emphasize rain clutter or target echoes You can emphasize rain clutter or target echoes when the target analyzer is active.
Page 146 6. RADAR birds are emphasized. With true echo trails, moving vessels show long, steady trails. Unlike those targets, bird echoes appear randomly and show random, short trails. Unstable, short Unstable, short No trail from No trail from trails from a flock trails from a flock stationary targets stationary targets...
Page 147: Far-2Xx7 Radar Series And Navnet Tztouch
6. RADAR 6.28 FAR-2xx7 Radar Series and NavNet TZtouch The FAR-2xx7 radar series* can be connected to your NavNet TZtouch, and some functions can be controlled from the NavNet TZtouch. The table below shows which features can be controlled from the NavNet TZtouch. Note that you should turn off Guard Polygon at the radar to control the radar from the NavNet TZtouch.
Page 148: How To Understand The Radar Display
6. RADAR 6.29 How to Understand the Radar Display 6.29.1 False echoes Echo signals can appear on the screen at positions where there is no target or disap- pear where there are targets. You can identify false targets when you understand why the false echoes appear.
Page 149: Search And Rescue Transponder (Sart), Racon
6. RADAR Shadow sector Funnels, stacks, masts, or derricks in the path of the antenna stop the radar beam. If the angle opposite the antenna is more than one or two degrees, a sector or shadow sector appears on the screen. Targets are not displayed within the sector. Wharf and its echo Radar position Wharf and its echo...
Page 150 6. RADAR Screen B: When SART is close Screen A: When SART is distant Radar antenna beamwidth Echo from SART (Lines of 12 dots are displayed in concentric arcs.) Own ship position Own ship position Own ship position Own ship position Position of Position of SART...
Page 151: Pulse Compression Radar Principles
6. RADAR 6.29.3 Pulse compression radar principles The solid state radar is available in several TX-RX methods, and this radar uses the pulse compression method. This radar transmits and receives using pulse compres- sion beyond synthesis distance (approx. 0.5 NM to 2 NM (depending on the pulse length)), and using non-compression within synthesis distance.
Page 152: Arpa Operation
6. RADAR 6.30 ARPA Operation The ARPA (Automatic Radar Plotting Aid) shows the movement of a maximum of 30 radar targets. The targets can be acquired manually or automatically. All 30 targets can be acquired manually when the ARPA acquisition area is not active. If the ARPA acquisition area is active, that total is equally divided between manual and auto acqui- sition.
Page 153: How To Manually Acquire A Target
6. RADAR 6.30.2 How to manually acquire a target You can manually acquire a target from both the radar display and the radar display overlay. 1. Select an object to acquire. The pop-up menu appears. 2. Select [Acquire]. After you acquire a target, the radar marks the target with a broken square and a vec- tor appears within 30 seconds.
Page 154: How To Display Target Data
6. RADAR 5. Move the circles to set the guard zone. Note: To set a 360-degree guard zone, set the same bearing for all four circles. 6. Select [End Resize] at the top right-hand corner of the screen. 7. Select [Guard Zone] from the RotoKey menu. 8.
Page 155: How To Stop Tracking Targets
6. RADAR 6.30.5 How to stop tracking targets You can stop tracking ARPA targets separately or all together. Individual target 1. Select the ARPA target to display the pop-up menu. 2. Select [Cancel] to delete the target from the screen. All targets 1.
Page 156: Cpa Graphic Display
6. RADAR 6. Select [Close] to exit the menu. How to acknowledge the CPA/TCPA alarm The CPA/TCPA alarm sounds when the CPA and TCPA of an ARPA target are within the CPA/TCPA alarm range. The alarm indication "CPA/TCPA Alarm" appears and flashes at the top of the screen.
Page 157 6. RADAR This page is intentionally left blank. 6-32...
Page 158: Fish Finder
Sounder BBDS1, Network Sounder DFF series or Color LCD Sounder FCV-1150. Note: When connecting the FURUNO Color LCD Sounder FCV-1150, do not select [USER-1] or [USER-2] with the MODE control. The echoes on the TZT display appear with scan lines.
Page 159: Single Frequency Display
7. FISH FINDER 7.2.1 Single frequency display The single frequency display shows either the low-frequency or high-frequency picture on all the screen. Select a frequency according to your purpose. • A low frequency gives a wide detection area. Use the low frequency for general search and to find bottom conditions.
Page 160: Dual Frequency Display
7. FISH FINDER 7.2.2 Dual frequency display The dual frequency display provides both low and high frequency pictures. Use the dual frequency display to compare the same picture with two different sounding fre- quencies. High frequency frequency Freq. Detection Bottom Beamwidth Resolution (kHz) range...
Page 161 7. FISH FINDER Bottom lock display The bottom lock display provides a compressed normal picture on the right half and a 7 to 400 feet (2 to 120 meter) wide layer in contact with the bottom is expanded on the left half.
Page 162: A-Scope Display (Display Only)
7. FISH FINDER 7.2.4 A-scope display (display only) The A-scope display appears at the right of the screen and is available in any fish find- er mode. This display shows the echoes at each transmission with the amplitudes and tone in balance with their intensities. This display helps you identify possible fish spe- cies and bottom structure.
Page 163: Bottom Discrimination Display
7. FISH FINDER 7.2.5 Bottom discrimination display The bottom discrimination display, available with the Bottom Discrimination Sounder BBDS1 or Network Fish Finder DFF1-UHD and appropriate transducer, identifies probable bottom composition. The display is available in all screen divisions, single or dual frequency mode and occupies the bottom 1/6 of the screen in the full screen dis- play.
Page 164: How To Select An Automatic Fish Finder Mode
7.4.2 How to select the display range Manual range setting TZT9/TZT14: Rotate the RotoKey to select the range. The range can not be changed in the auto mode or the bottom discrimination display. TZTBB: Pinch the fish finder screen. Or tap the sounder scale box at the bottom left- hand corner of the screen to display the slider bar.
Page 165: How To Shift The Range
7. FISH FINDER 7.4.3 How to Shift the Range The basic range and range shift functions let you select the depth you can see on the screen. This function is not available when [Auto Range] is active. 1. Select [Menu] on the menu icon bar to open the main menu. 2.
Page 166: Picture Advance Speed
7. FISH FINDER 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Sounder]. 3. Drag the circle icon in [Clutter] to set the level. The larger the setting value, the greater the degree of reduction. 4.
Page 167: How To Reduce Interference
7. FISH FINDER How to Reduce Interference Interference from other fish finders and electrical equipment appears on the screen as shown in the illustration. When these types of interference appear on the screen, use the interference rejector to reduce the interference. Turn off the interference rejector when there is no interference, so that you do not erase weak echoes.
Page 168: How To Balance Echo Strength
7. FISH FINDER How to Balance Echo Strength A school of fish at a depth deeper than a school of equal strength in shallow water ap- pears in weaker colors. This condition is caused by the attenuation of the ultrasonic wave.
Page 169: How To Set An Alarm
7. FISH FINDER 7.9.1 How to set an alarm 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select [Sounder]. 3. For fish alarm, select [Range Minimum Value] or [Range Maximum Value] below [Fish Alarm] to display the software keyboard. For bottom lock fish alarm, select [Range Minimum Value] or [Range Maximum Value] below [Fish Alarm for Bottom Lock] to display the software keyboard.
Page 170: Alarm Sensitivity
7. FISH FINDER 2. Select [Sounder]. 3. To activate the bottom lock fish alarm, select the [ON] icon in [Fish Alarm for Bot- tom Lock]. To deactivate the fish alarm, select the [OFF] icon in [Fish Alarm for Bottom Lock]. 7.9.3 Alarm sensitivity You can select which strength of echoes release the fish alarms.
Page 171 7. FISH FINDER • Echoes from a school of fish can be in more than one layer, which can cause wrong length indication. • The fish symbol indication is not shown when the bottom echo does not appear on the screen. 7.10.1 How to set ACCU-FISH 1.
Page 172: Fish Size Correction
7. FISH FINDER 7.10.2 Fish size correction The fish size shown on the screen can be different from the true size. If the size is wrong, add an offset to the measured value to get a more accurate indication on the screen.
Page 173: Fish Finder Menu Operation
7. FISH FINDER 3. Select a mark. In the example below, a shrimp mark is put on the fish symbol. How to go to a point or a position 1. Select a fish symbol (only in ACCU-FISH mode), a point or a position to display the pop-up menu.
Page 174 TX and RX beams. This function requires a FURUNO Satellite Compass. [Transmit Rate Mode]: Select how to set the transmit rate, [Manual], [Auto], or [Max]*.
Page 175 7. FISH FINDER stallation characteristics. If the width of the transmission line is 2.0 or more, set the transmission line width with [Zero Line Range], as shown on the next page. [Zero Line Range]: This feature adjusts the transmission line so that the line disap- pears when [Zero Line Rejection] is turned on.
Page 176: Lcd Color Sounder Fcv-1150 And Navnet Tztouch
7. FISH FINDER portant. To improve resolution on zoom displays, use [Short 1] or [Short 2]. [Short 1] improves the detection resolution, but the detection range is shorter than with [Std] (pulse length is 1/4 of [Std]). [Short 2] raises the detection resolution, however detec- tion range is shorter (pulse length is about 1/2 of [Std]) than [Std].
Page 177 7. FISH FINDER Controllable Function Remarks from NavNet Depth unit Echo color levels Fish alarm Fish alarm level Fish info size Set at FCV-1150. Frequency adjustment Gain According to Gain/Mode setting at FCV-1150. Gain offset Set at FCV-1150. Heaving correction High resolution Interference rejection Manual pulse length...
Page 178: Interpreting The Display
7. FISH FINDER 7.14 Interpreting the Display Zero line The zero line (transmission line) shows the position of the transducer. The line disap- pears from the screen when the range is shifted. Zero line Range shifted Bottom echoes The strongest echoes are from the bottom, and are normally shown in reddish-brown or red.
Page 179 7. FISH FINDER Nature of a bottom The nature of a bottom is known from the intensity and length of the bottom tail. To find the nature of a bottom, use a long pulse length and normal gain. For the hard and rough bottom, the bottom echo is reddish-brown with a long tail.
Page 180 7. FISH FINDER Density of a school of fish If two schools appear with the same color at different depths, the one in deeper water is denser because the ultrasonic wave attenuates as it propagates and the school of fish in deep water tends to be displayed in a weaker color. Difference in signal strength Reddish Less reddish...
Page 181 7. FISH FINDER Surface noise When the sea is rough or the ship moves over a wake, surface noise can appear at the top of the screen. Surface noise Air bubbles in the water When the sea is rough or the ship makes a quick Ultrasonic wave turn, there can be blank spots in the bottom echo blocked by air bubbles...
Page 182: Multi Beam Sonar Dff-3D
MULTI BEAM SONAR DFF-3D This chapter describes the display screens (modes) available with the Multi Beam So- nar DFF-3D, which displays images of the underwater and the ocean floor with high precision. Four display screens are provided, multi-sounder, side scan, cross section, and 3D sounder history.
Page 183 8. MULTI BEAM SONAR DFF-3D Depth Depth scale scale Port Port Downward Downward Starboard Starboard Seabed echo Max. display depth Max. display depth Depth 19.5 Frequency Triple beam display Side scan display The side scan display shows the echoes received from the port and starboard direc- tions.
Page 184 8. MULTI BEAM SONAR DFF-3D Cross section display PORT STBD The cross section display, shows seabed and underwater conditions. School of This multi beam sonar uses a 120° fish beam (downward to port 60°; down- Seabed ward to starboard 60°), providing highly accurate underwater images.
Page 185: Multi-Sounder Display Operations
8. MULTI BEAM SONAR DFF-3D Multi-Sounder Display Operations This section covers the functions available with the multi-sounder display. For the menu items shared with the conventional fish finder, see chapter 7. 8.2.1 How to switch between TX and STBY Tap the multi-sounder display to show the pop-up menu. Select [TX] to start transmit- ting.
Page 186: Availability Of Points And Event Marks Registration, And Go To A Point
8. MULTI BEAM SONAR DFF-3D 8.2.6 Availability of points and event marks registration, and go to a point For operation, see chapter 7. The table below shows function availability according to latitude/longitude, heading data presence or absence. If there is no latitude/longitude data, none of the functions below are available.
Page 187: Side Scan Display Operations
8. MULTI BEAM SONAR DFF-3D Side Scan Display Operations This section covers the functions available with the side scan display. For the menu items shared with the conventional fish finder, see chapter 7. 8.3.1 How to switch between TX and STBY Tap the side scan display to show the pop-up menu.
Page 188: Cross Section Display Operations
8. MULTI BEAM SONAR DFF-3D Latitude/Longitude / Heading data: YES Item Starboard Port Point registration Go to point Event mark registration Latitude/Longitude: YES, Heading data: NO Item Starboard Port Point registration Go to point Event mark registration Cross Section Display Operations This section covers the functions available with the cross section display.
Page 189: How To Smooth Echoes (Distance)
8. MULTI BEAM SONAR DFF-3D 8.4.4 How to smooth echoes (distance) If echoes are “disconnected” because of an undulating seabed, change the setting to [Low], [Medium] or [High] as necessary. Smoothing is done in the range direction to smooth the echo presentation. 1.
Page 190: How To Show Or Hide The Scale Box
8. MULTI BEAM SONAR DFF-3D 8.4.7 How to show or hide the scale box The scale box, shown at the bottom-left corner on the display, shows depth, current range, and TX frequency. You can show the box as follows. 1. Tap the cross section display to show the pop-up menu. 2.
Page 191: D Sounder History Display Operations
8. MULTI BEAM SONAR DFF-3D 3D Sounder History Display Operations This section covers the functions available with the 3D sounder history display. For the menu items shared with the conventional fish finder, see the applicable Operator’s Manual. 8.5.1 How to switch between TX and STBY Tap the 3D sounder history display to show the pop-up menu.
Page 192: How To Stop Advancement Of The Display
8. MULTI BEAM SONAR DFF-3D 8.5.4 How to stop advancement of the display You can stop advancement of the history display to observe the distribution of sea floor topography and school of fish. 1. Tap the 3D sounder history display to show the pop-up menu. 2.
Page 193: How To Use Terrain Shading
8. MULTI BEAM SONAR DFF-3D 8.5.8 How to use terrain shading The thickness of the shading for the seabed terrain can be adjusted. 1. Select [Menu] from the menu icon to show the menu. 2. Select [Multibeam Sonar]. 3. Select [Terrain Shading]. Drag the slider bar to adjust. The default setting is 50.
Page 194 8. MULTI BEAM SONAR DFF-3D How to set color shading Open the menu, select Multi Beam to show the menu for setting color shading. Seabed Color Classic Hue Fish Color Classic Hue Fish Monochrome Color Seabed Monochrome Color Gray Hue Gray Hue Auto Seabed Shading Auto Seabed Shading...
Page 195 8. MULTI BEAM SONAR DFF-3D Menu item Description Setting options [Minimum Value] Use the software keyboard to set the shal- 0 to 1200 (m) lowest depth to use. [Auto Seabed Shading] must be OFF to enter depth. Alternatively, tap the minimum value indica- tion on the color bar scale to show the slider bar.
Page 196: How To Show Or Hide The Scale Box
8. MULTI BEAM SONAR DFF-3D Menu item Description Setting options [Minimum Value] Use the software keyboard to set the shal- 0 to 1200 (m) lowest depth to use. [Auto Fish Shading] must be OFF to enter depth. Alternatively, tap the minimum value indica- tion on the color bar scale to show the slider bar.
Page 197: Availability Of Points And Event Marks Registration, And Go To A Point
8. MULTI BEAM SONAR DFF-3D 8.5.11 Availability of points and event marks registration, and go to a point For how to register points and event marks, see chapter 7. The table below shows function availability according to latitude/longitude, heading data presence or absence. If there is no latitude/longitude data, none of the functions below are available.
Page 198: File Operations
FILE OPERATIONS This chapter covers the file operations shown below, using SD cards. • How to export points, routes and tracks • How to import points, routes and tracks Note: DO NOT remove the card while the SD drive is being accessed, to prevent loss of data or damage to the card.
Page 199: Files Menu Operation
9. FILE OPERATIONS Files Menu Operation The [Files] menu of the main menu is where you import and export data. Import/Export Export File Format Import Import Points & Routes Export All Points & Routes Export Import Tracks Import Export Tracks Export NN3D Import/Export Import...
Page 200: File Format
9. FILE OPERATIONS [Import Tracks]: Import tracks from an SD card. When you import tracks from an SD card, all tracks currently stored in the TZT unit are replaced with those on the SD card. [Export Tracks]: This unit holds 30,000 tracks in its internal memory. When the capac- ity for tracks is reached, a new track cannot be entered unless an unnecessary track is erased.
Page 201: How To Export Points And Routes
9. FILE OPERATIONS How to Export Points and Routes When the capacity for point is reached, the oldest point is erased to clear space for new point. A new route cannot be entered when the memory for routes is full. If you need to save points and routes permanently, save them to an SD card.
Page 202: How To Import Or Export Tracks
9. FILE OPERATIONS How to Import or Export Tracks How to import tracks You can import tracks to the internal memory of a TZT unit. 1. Put the correct SD card in either card drive. 2. Select [Menu] on the menu icon bar to open the main menu. 3.
Page 203: How To Backup The Equipment Settings
9. FILE OPERATIONS How to Backup the Equipment Settings You can save the settings to an SD card to use the settings on other TZT units. 1. Put a blank formatted SD card in the right card drive. 2. Select [Menu] on the menu icon bar to open the main menu. 3.
Page 204: How To Copy Files From An Sd Card
9. FILE OPERATIONS How to Copy Files From an SD Card You can copy the data from one SD card (left slot) to another (right slot). Note: It takes approx. one hour to copy a 60 GB file. 1. Put the source SD card in the left card drive and the copy destination SD card in the right card drive.
Page 205: How To Backup Data To The Cloud
9. FILE OPERATIONS ™ 9.11 My TimeZero Cloud Data Service ™ With the TimeZero cloud data service, you can share the data stored in yourTimeZe- ™ cloud account with another NavNet TZtouch (requires software version 5.01 or af- ™ ter). To use the TimeZero cloud data service, connect to the internet and create a ™...
Page 206: Camera/Video/Fusion-Link
10. CAMERA/VIDEO/FUSION-Link The camera/video function allows you to use your unit to play back images from a vid- eo player, on-board camera, network camera or DVD player. Network camera images can be seen across the TZT network. A video signal can be seen only on the TZT that receives the video signal.
Page 207: How To Set The Video Display
10. CAMERA/VIDEO/FUSION-Link 10.3 How to Set the Video Display 10.3.1 How to select the input source Select the input source from the RotoKey menu (see section 10.6). [Analog 1 (2)]: An analog signal [IP 1 (2, 3, 4)]: A digital signal [Quad]: All digital signals (maximum of four) from an axis server [Input 1 (2, 3, 4)]: A digital signal from an axis server [Quad 2]: All digital signals (maximum of four) from second axis server...
Page 208 10. CAMERA/VIDEO/FUSION-Link IP camera You can change the nickname and IP address for an IP camera. Also, you can turn on or off the PTZ (pan, tilt, zoom) function. Select [Camera] - [IP Camera 1] (or 2, 3, 4) of the main menu.
Page 209 10. CAMERA/VIDEO/FUSION-Link FLIR camera Images from an infrared camera allow you to navigate easily at night or in bad weath- er. Select [Camera] - [FLIR Installation] of the main menu. FLIR Installation Scan IP Scan 255.255.255.255 FLIR IP NickName Camera 1 Video Source PTZ Control Camera Offset (Right-left)
Page 210: How To Adjust The Image Size
10. CAMERA/VIDEO/FUSION-Link 10.3.3 How to adjust the image size You can adjust the image size. 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Camera] - [Video Display] menu. Video Display Stretch Stretch 3.
Page 211: Pop-Up Menus By The Flir Camera
10. CAMERA/VIDEO/FUSION-Link 10.4 Pop-up Menus by the FLIR Camera [Camera FoV] menu You can display the field of view by the FLIR camera on the plotter display. 1. Select the boat icon to display the pop-up menu. 2. Select [Camera FoV]. The circular sector in translu- cent red appears on the screen.
Page 212: How To Adjust The Video Image
10. CAMERA/VIDEO/FUSION-Link 10.5 How to Adjust the Video Image 1. Select [Contrast] or [Brightness] from the RotoKey menu. 2. Drag the circle icon to adjust the setting (see the figure below). Drag the circle icon to adjust the setting. Note: This menu is not available when [Cycle] is on (see paragraph 10.3.4). 10.6 Touch Control on the Camera Display Analog and Axis Server 241Q...
Page 213: Fusion-Link
10. CAMERA/VIDEO/FUSION-Link Operation Function Pinch Zoom in/zoom out the cam- era image (infrared only). Zoom in Zoom out 10.7 FUSION-Link FUSION-Link allows compatible TZT displays to interface and achieve control of spe- cialized FUSION marine entertainment equipment. 10.7.1 How to access the FUSION screen and controls The FUSION controls can be accessed in three methods: •...
Page 214 10. CAMERA/VIDEO/FUSION-Link Close Menu Tap to Scan select Drag the CH16. circle icon to adjust Channel squelch. selection mode Turn down volume. Select channel. Tap: Switch channel selection mode between Mute or unmute. preset and manual. Long tap: After selecting channel in manual mode, Turn up volume.
Page 215: Fusion Settings
10. CAMERA/VIDEO/FUSION-Link Method 3: Tap two fingers on the screen Preset [Function Gesture] for [Fusion] (for full window) or [Fusion Ctrl] (for minimized window) (see section 1.15). Once you have done this preset, simply tap the screen with two fingers to access the FUSION controls. 10.7.2 FUSION settings Open the Home screen, tap [Initial Setup], then scroll down to find the [FUSION] sec-...
Page 216: Instrument Display
11. INSTRUMENT DISPLAY The instrument display gives you the following navigation and environment displays: • Steering • Engine • Tank level (fuel) • Weather • Wind • NAVpilot • Highway The instrument display can be programmed to a full screen or three-way split screen. In the full screen, four displays are shown at the same time.
Page 217: Instrument Displays
11. INSTRUMENT DISPLAY 11.3 Instrument Displays 11.3.1 Steering display The steering display provides the analog and digital indications shown below. HDG: Heading COG: Course over ground SOG: Speed over ground CTS: Course to steer (Steer to direction) DTW: Distance to waypoint TTG: Time to go XTE: Cross-track error Steer to direction (P: Port, S: Starboard)
Page 218: Tank Level Display
11. INSTRUMENT DISPLAY 11.3.3 Tank level display The tank level display provides the digital indications shown below. The data for a maximum of four tank levels can be displayed. Fuel level for Fuel level for starboard tank third tank Fuel level for Fuel level for fourth tank port tank...
Page 219: Wind Display
11. INSTRUMENT DISPLAY 11.3.5 Wind display The wind display provides digital and analog indications of wind speed and angle. Analog wind angle P: Port, S: Starboard TWA: True wind angle TWS: True wind speed AWA: Apparent wind angle AWS: Apparent wind speed Indicator color Blue: True wind, Red: Apparent wind 11.3.6...
Page 220: Highway Display
11. INSTRUMENT DISPLAY Auto mode Blue arrow: Set course Gray arrow: Heading Mode (Auto) Heading (digital) course Coarse adj. buttons In AUTO mode, XTE, DTW, TTG and ETA indications show “---”. 11.3.7 Highway display The highway display provides a graphic presentation of your vessel’s progress toward a waypoint.
Page 221 11. INSTRUMENT DISPLAY This page is intentionally left blank. 11-6...
Page 222: Weather
U.S. Information provided by the Sirius Marine Weather service is advisory in nature. You, the customer, agree to release FURUNO ELECTRIC CO., LTD., Sirius Satellite Radio Inc., Navcast Inc. and WSI Corporation from any problems that occur from this ser- vice.
Page 223: Navcenter Weather
12. WEATHER 12.2 NavCenter Weather You can download the NavCenter data from the internet via Wireless LAN. See section 1.22 for how to connect to the internet. Note: Data which is downloaded by a TZT unit can be shared with other TZT units via the network.
Page 224: How To Download The Navcenter Data
12. WEATHER 7. Select [Duration of Animation]. Duration of Animation 0’45s 0’10s 0’15s 0’20s 0’30s 0’45s 8. Select the update interval for the animation. The larger the time, the slower the animation moves. 12.2.2 How to download the NavCenter data 1.
Page 225: How To Display The Navcenter Data
12. WEATHER 9. If you selected [ON] for [Sea Surface Temperature], set the following menu items. [Weather Color Transparency]: Adjust the degree of transparency for the weather overlay. Use a large figure to increase the degree of transparency. [Auto SST Color Scale]: Activate this feature to adjust the SST color scale auto- matically according to the sea surface temperature.
Page 226: How To Load A Weather File
12. WEATHER 1. Select [Wx Data] from the RotoKey menu on the weather display. 2. Select a menu item to display its data. 3. Repeat steps 1 and 2 to select all menu items desired. 4. Select [Anim Forecast] from the RotoKey menu. The animation forecast is dis- played for a specified-day period.
Page 227: Sirius Weather
12. WEATHER 12.3 Sirius Weather Sirius weather radar information and advanced weather information are available in North America with connection of the Sirius Weather Receiver BBWX3 (or BBWX2). 12.3.1 Pre-settings 1. Select [Menu] on the menu icon bar to open the main menu. 2.
Page 228: How To Display The Sirius Data
12. WEATHER Precipitation indication on CanadianRadar Weather radar color Level (mm per hour) Transparent (low precipitation) 0.00 to 0.20 mm/hr Light green 0.21 to 1.00 mm/hr Medium green 1.01 to 4.00 mm/hr Dark green 4.01 to 12.00 mm/hr Yellow 12.01 to 24.00 mm/hr Orange 24.01 to 50.00 mm/hr Light red...
Page 229: Weather Icons (Sirius Weather)
12. WEATHER 3. Repeat steps 1 and 2 to select all menu items desired. [Anim Radar] (Animation radar) The animation radar display provides the past weather radar information. To show the animation radar display, select [Anim Radar] from the RotoKey menu. To stop the an- imation display, select [End Anim] at the top right-hand corner of the screen.
Page 230: Weather Data (Navcenter Or Sirius)
12. WEATHER Icon Meaning Storm tracks Surface pressure etc. 12.5 Weather Data (NavCenter or Sirius) The table below shows the weather data available for displaying according to weather data server (NavCenter or Sirius). Items NavCenter Sirius Item NavCenter Sirius Wind Currents Waves Altimetry...
Page 231 12. WEATHER [Waves]: The waves forecast dis- plays wave height with color. 0 foot (minimum) is displayed in light blue, 35 feet (maximum) in red. [SST] (Sea surface temperature): This data layer shows the tem- perature of the sea surface in shades.
Page 232 12. WEATHER [Pressure]: The pressure forecast displays surface pressure. 1 0 2 0 Pressure icon Meaning High pressure Low pressure Warm front Cold front Occluded front Stationary front Trough Squall line Dry line Isobars 1010 [500mb]: The 500mb forecast dis- plays the contour lines over 500 12-11...
Page 233 12. WEATHER [Air Temp]: The air temp forecast displays the air temperature by color. -45°C (-49°F) (minimum) is displayed in dark violet, 45°C (113°F) (maximum) is displayed in red. [Currents]: The current forecast displays the tidal current speed and direction by blue arrow. The darker the blue, the faster the cur- rent speed (0 to 2 kn).
Page 234 12. WEATHER [City]: The city weather forecasts are available where city icons are shown. Select a city icon ( ) to display the city information. [Storm]: The storm cast icon ( ) shows the direction and speed of a storm when the icon is selected.
Page 235: Weather Reports
12. WEATHER [Storm Tracks]: The storm track icons show major storms in your area. These storms include tropical disturbances, depressions, storms and cyclones, hurricanes, ty- phoons and super typhoons. These symbols are displayed in three different colors: gray (historical), red (current), and orange (forecast). Storm track icons Meaning Hurricane (Category 1-5)
Page 236: Automatic Identification System (Ais)
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 13.1 AIS Introduction AIS is a system that continuously transmits the identification and position of your ship to other nearby ships. All such ships also receive data from other AIS equipped ships and display their positions and other relevant information. The AIS broadcasts this in- formation over a VHF transceiver.
Page 237: Proximity Ais Target Alarm
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) Target Symbol Description type Lost AIS An AIS target becomes a lost target target if a signal is not received from the AIS target for x* min- utes. The lost target symbol is erased if a signal is not re- Symbol color Cross color ceived for an additional x* min-...
Page 238: How To Ignore The Ais Targets
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 13.5 How to Ignore the AIS Targets In the default setting, all AIS targets within 12 NM* from your ship are shown on the display. Slow-moving targets within the AIS proximity alarm range cause frequent vi- olation of the alarm.
Page 239: How To Display The Target Data
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 13.6 How to Display the Target Data Select an AIS target to display the simple information. To get the detailed information, select an AIS target to display the pop-up menu then select [Info]. The detailed infor- mation display can also be shown by selecting the simple information display.
Page 240: Ais List
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 13.8 AIS List How to open the AIS list 1. Select [Lists] on the menu icon bar to open the lists menu. 2. Select [AIS List]. AIS symbol color Easily identify target type. Blue: AIS target for Class A Green: AIS target for Class B Blue &...
Page 241: How To Register An Ais Or Dsc To The Buddies List
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 2. Select [Detail]. 3. Select [Close] to close the [Target Info] window. 4. Select [Close] to exit the menu. How to find an AIS target on the chart display 1. Select the AIS target to find on the AIS list. 2.
Page 242 13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 3. Select [Buddies List (AIS & DSC)]. 4. Select [Add] to open the numeric software keyboard. 5. Enter the MMSI number then select [Confirm]. 6. Select [Nickname] to open the alphabetical software keyboard. 7. Enter the nickname then select [Confirm]. 8.
Page 243: Receiving Ais Messages
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) How to delete an entry from the buddies list 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [Targets] - [Buddies List (AIS & DSC)] menu. 3. Select the [MMSI] field in the AIS or DSC to delete then select [Remove]. 4.
Page 244: Cpa Graphic Display
13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) 13.11 CPA Graphic Display The CPA graphic display shows the CPA between own vessel and the selected AIS target with a line, called the “CPA line.” You can use the line to monitor speed and heading changes of another vessel, which makes it useful as an anti-collision aid, es- pecially in congested waters.
Page 245 13. AUTOMATIC IDENTIFICATION SYSTEM (AIS) This page is intentionally left blank. 13-10...
Page 246: How To Adjust Settings
14. HOW TO ADJUST SETTINGS After you understand the basic operation procedures of your equipment, you can set the equipment according to your needs. • Set the equipment according to your system configuration. • Change how the equipment operates and displays information. All the adjustments are done from the menu.
Page 247 Echo Trail Show or hide echo trail. Clear Trail Clear echo trails and restart with new echo trails. Display NavData Open the data boxes. (TZT9/TZT14 only) Menu Open the main menu. Lists Open the lists. Tide Open the tide graph. 14-2...
Page 248 Show or hide tide icons. Currents Show or hide tidal currents. Points Show or hide points and event marks. Display NavData Open the data boxes. (TZT9/TZT14 Menu Open the main menu. only) Lists Open the lists. Tide Open the tide graph.
Page 249 Clear lost ARPA targets. Active Rte Show or hide active route. CPA Alarm Activate or deactivate CPA alarm. Display NavData Open the data boxes. (TZT9/TZT14 on- Menu Open the main menu. Lists Open the lists. Tide Open the tide graph. 14-4...
Page 250 Show or hide bottom discrimination and DFF1-UHD) display. Event Put an event mark. Display NavData Open the data boxes. (TZT9/TZT14 only) Menu Open the main menu. Lists Open the lists. Tide Open the tide graph. Menu items available in the camera mode...
Page 251 14. HOW TO ADJUST SETTINGS Control label Function Base Full Level 1 Level 2 Input 4* Display the image for input 4 from second axis server. Cycle Cycle the images selected. Cycle Config. Analog 1* Activate or deactivate cycle of the image from analog 1.
Page 252 1. Select [Menu] on the menu icon bar to open the main menu. 2. Select the [General] - [RotoKeys] menu. RotoKeys Base Base Full 3. Select [Base] or [Full], then select [Close] to exit the menu. TZT9/TZT14: The [Full] set can be always selected by long pushing the RotoKey 14-7...
Page 253: How To Set The Display Selection Window
14. HOW TO ADJUST SETTINGS 14.2 How to Set the Display Selection Window The section 1.5 shows how to arrange the display selection window to your liking. The default display selection window provides seven displays in configurations according to the equipment that you have in your network. If the arrangement does not meet your requirements, you can change the configurations as necessary.
Page 254 14. HOW TO ADJUST SETTINGS 3. Select [+] for [Add a new screen]. Custom display area Display division Possible displays 4. Drag the desired display division (full-screen, two-way or three-way) to the custom display area. 5. Drag the desired display from the possible displays to the custom display area. 6.
Page 255: General And Units Menus
14. HOW TO ADJUST SETTINGS 14.3 General and Units Menus The [General] menu of the main menu includes the RotoKeys settings, data boxes set- tings, key beep, etc. The [Units] menu sets units of measurement for range, depth, height, speed, etc. [General] menu RotoKeys Base...
Page 256 [RotoKeys] Select the RotoKey menu to show with a short [Base], [Full] press of the RotoKey (for TZT9/TZT14) or short tap (for TZTBB). See section 14.1. [Function Ges- Select the function to do by tapping the screen [None], [Screen Capture], ture] with two fingers (see section 1.15).
Page 257 14. HOW TO ADJUST SETTINGS Menu item Function Options [Language] Select the language to use (see section 1.16). [English (United States)], [English (United Kingdom)], and others [Check for Soft- Update the software version. ware Update] [Reset Default Restore default settings for the [General] menu. Settings] *: In the demo displays, you can move the position for the boat icon to the position tapped.
Page 258 14. HOW TO ADJUST SETTINGS [Units] menu description Menu item Options [Bearing Display] [Magnetic], [True] The mode (magnetic or true) of all heading and bearing data. [True Wind Calculation [Ground], [Surface] Reference] Select wind value to display from speed over ground or speed through water (surface).
Page 259 14. HOW TO ADJUST SETTINGS This page is intentionally left blank. 14-14...
Page 260: Maintenance, Troubleshooting
15. MAINTENANCE, TROUBLE- SHOOTING This chapter has information about maintenance and troubleshooting that the user can follow to care for the equipment. NOTICE WARNING Do not apply paint, anti-corrosive ELECTRICAL SHOCK HAZARD Do not open the equipment. sealant or contact spray to plastic parts or equipment coating.
Page 261: Life Of The Parts
A wrong fuse can damage the equipment and cause fire. Name Type Code No. Remarks Fuse FGBO-A 125V 4A PBF 000-155-851-10 For TZT9/TZTBB, 24 VDC Fuse FGBO 125V 7A PBF 000-155-831-10 For TZT9, 12 VDC Fuse FGBO-A 125V 5A PBF 000-155-853-10 For TZT14, 24 VDC...
Page 262 LCD replacement (for TZT9/TZT14) The life of the LCD is approximately 18,000 hours for TZT14, 25,000 hours for TZT9. The actual number of hours depends on ambient temperature and humidity. When the brilliance cannot be raised sufficiently, contact your dealer about replacement of the LCD.
Page 263: Troubleshooting
15. MAINTENANCE, TROUBLESHOOTING 15.3 Troubleshooting This section provides simple troubleshooting procedures which the user can follow to restore normal operation. If you cannot restore normal operation, do not check inside the unit. Have a qualified technician check the equipment. 15.3.1 General troubleshooting Problem Remedy...
Page 264: Chart Plotter Troubleshooting
15. MAINTENANCE, TROUBLESHOOTING 15.3.3 Chart plotter troubleshooting Problem Remedy Position is not fixed. Check that antenna connector is fastened and navigator is cor- rectly connected. The track of your ship is not Check that the track is turned on. Select the [Overlay] - [Tracks] plotted.
Page 265 15. MAINTENANCE, TROUBLESHOOTING This page is intentionally left blank. 15-6...
Page 266: Appendix 1 Menu Tree
APPENDIX 1 MENU TREE Menu Bold: Default setting General RotoKeys (Base, Full) Function Gesture (None, Screen Capture, Event, MOB, Home, Menu, Lists, Tide, Fusion, Fusion Ctrl) Connect to the Internet (Never, At Startup, When Necessary) Wireless LAN Settings (Open the dialog box for Wireless LAN settings.) Allow Remote Control (Off, View Only, Full Control) Local Time Offset (UTC - 12:00 to UTC + 13:00) Time Format (AUTO, 12 hours, 24 hours)
Page 267 APPENDIX 1 MENU TREE Points Display Points Names (ON, OFF) Default Point Symbol (Select the default icon for point.) Default Point Color (Red, Blue, Green, Yellow, Magenta, Orange, Cyan, Black & White) Point Size (50 - 200; 100%) Icons Set (Classic, Modern) Points Density (Low, Medium, High, Full) Data to Be Recorded in Event Comment (None, Date, SST, Date And SST) Add Screen Capture to Event (ON, OFF)
Page 268 APPENDIX 1 MENU TREE S-52 S-52 Vector Chart Display Mode (Custom, Base, Standard, Other, Fishing) Display Unknown Object (ON, OFF) Chart Data Coverage (ON, OFF) Water and Seabed Features (ON, OFF) Traffic Routes (ON, OFF) Information Areas (ON, OFF) Buoys & Beacons (ON, OFF) Lights (ON, OFF) Fog Signals (ON, OFF) Radar (ON, OFF)
Page 269 APPENDIX 1 MENU TREE Radar Radar Source (Select the antenna host name.) Day Background Color (Black, Dark Blue, White) Night Background Color (Black, Dark Blue) Echo Color (Multicolor, Green, Yellow) Sweep Fade (ON, OFF) Rings Interval (Auto, 1, 2, 3, 4, 5, 6, 7, 8, 9) Bearing Scale Mode (Relative, True) EBL Reference (True, Relative) Own Ship Icon (ON, OFF)
Page 270 APPENDIX 1 MENU TREE Sounder Fish Finder Source (DFF1/BBDS1, DFF3, FCV1150, DFF1-UHD) Day Background Color (White, Light Blue, Black, Dark Blue) Night Background Color (Black, Dark Blue) Echo Color Levels (8 Colors, 16 Colors, 64 Colors) A-Scope Peak Hold (ON, OFF) Zoom Reference Lines (ON, OFF) High Resolution (ON, OFF) Picture Advance (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, Stop)
Page 271 APPENDIX 1 MENU TREE Multi- Day Background Color (White, Light Blue, Black, Blue) beam Night Background Color (Black, Dark Blue) Sonar Bottom Range Shift Area (15~85(%); 50) Transmit Rate Auto (OFF, ON) Default settings in boldface italic. Transmit Rate Manual (0~21; 20) Sounder Transmit (OFF, ON) Multi-Sounder A-Scope Peak Hold...
Page 272 APPENDIX 1 MENU TREE Fish Finder Alarms Fish Alarm (OFF, ON) Range Minimum Value (0~1200; 0m) Range Maximum Value (0~1200; 3m) Fish Alarm Level (Low, Medium, High) Initial Setup Transducer Draft (0~99.9; 0) Salt Water (OFF, ON) Transducer Setup (Show the menu for setting up the transducer) Transmission Power Auto (OFF, ON) Transmission Power (0~10;...
Page 273 APPENDIX 1 MENU TREE Files Export File Format (TZD, CSV, GPX, KML) Import Points & Routes (Open the dialog box for import.) Export All Points & Routes (Open the dialog box for export.) Import Tracks (Open the dialog box for import.) Export Tracks (Open the dialog box for export.) Import from NN3D (Open the dialog box for import.) Export to NN3D (Open the dialog box for export.)
Page 274 APPENDIX 1 MENU TREE Camera Video Display (Stretch, Fit) Analog Camera 1 or 2 Video Format (PAL, NTSC) NickName (Camera 1 (or 2)) IP Camera 1 to 4 NickName (IP Camera 1 to 4) IP Camera (172.31.200.3 to PTZ Control (ON, OFF) Axis Quad Server/Second Axis Quad Server Server (ON, OFF) IP Server...
Page 275: Appendix 2 Radio Regulatory Information
APPENDIX 2 RADIO REGULATORY INFORMATION Wireless Interoperability This product is designed to be interoperable with any wireless LAN product that is based on direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) radio technology and to comply with the following standards. •...
Page 276 APPENDIX 2 RADIO REGULATORY INFORMATION USA-Federal Communications Commission (FCC) Below are descriptions for built-in Wireless LAN module. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 277 APPENDIX 2 RADIO REGULATORY INFORMATION Canada-Industry Canada (IC) Below are descriptions for built-in Wireless LAN module. This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired op- eration of this device.
Page 278 FURUNO TZT9 SPECIFICATIONS OF MULTI FUNCTION DISPLAY TZT9 GENERAL Display 9-inch wide color LCD, 196.8 x 118.08 mm Resolution 800 x 480 dots (WVGA) Indication system Raster-scan, non-interlace, Horizontal: 31.7kHz, Vertical: 60Hz Brightness 900 cd/m typical Display colors 262,144 colors (plotter), 64 colors (echo), 16 colors (radar)
Page 279 FURUNO TZT9 Wireless LAN IEEE802.11b/g/n Transmitting frequency 2.412 to 2.462 GHz Output power 12 dBm max. NMEA0183 (Ver2.0) sentences (Ethernet) Input/Output CUR, DPT, GGA, GSA, GSV, HDG, HDT, MDA, MTW, MWV, RSA, ROT, VDM, VHW, VTG, XDR, ZDA CAN bus PGN (NMEA2000)
Page 280 FURUNO TZT14 SPECIFICATIONS OF MULTI FUNCTION DISPLAY TZT14 GENERAL Display 14.1-inch wide color LCD, 303.36 x 189.6 mm Resolution 1280 x 800 dots (WXGA) Indication system Raster-scan, non-interlace, Horizontal: 49.4kHz, Vertical: 59.92Hz Brightness 900 cd/m typical Display colors 262,144 colors (plotter), 64 colors (echo), 16 colors (radar)
Page 281 FURUNO TZT14 Wireless LAN IEEE802.11b/g/n Transmitting frequency 2.412 to 2.462 GHz Output power 12 dBm max. NMEA0183 (Ver2.0) sentences (Ethernet) Input/Output CUR, DPT, GGA, GSA, GSV, HDG, HDT, MDA, MTW, MWV, RSA, ROT, VDM, VHW, VTG, XDR, ZDA CAN bus PGN (NMEA2000)
Page 282 FURUNO TZTBB SPECIFICATIONS OF MULTI FUNCTION DISPLAY TZTBB EXTERNAL MONITOR SPECIFICATIONS (REQUIRED) Display screen Color LCD with touch panel control Resolution 1920 x 1200 dots max. Horizontal resolution: 1280 or more recommended Maximum frequency 165 MHz, DVI single link Signal interface Picture: DVI-D, VESA DDC, ®...
Page 283 FURUNO TZTBB 6 ports, USB2.0 (includes 1 port for wireless LAN module) Video output 2 ports, DVI-D, VESA DDC Video input 2 ports, NTSC/PAL SD card slot 2 slots (SDXC applicable) Line out 1 port Wireless LAN IEEE802.11b/g/n Transmitting frequency 2.412 to 2.462 GHz...
Page 284: Index
INDEX Numerics 3D display Background color description ..........3-1 fish finder..........7-16 exaggeration ........... 3-2 radar ............6-17 3D sounder history display Beam angle (multi-sounder display)..8-4 echo detection level ......8-11 Beam type selection (multi-sounder example........... 8-3 display)............ 8-4 function availability ........
Page 285 INDEX Depth alarm ..........2-11 Function gesture ........1-25 Depth shading overlay .......3-3 Fuse replacement ........15-2 Depth/color shading .........8-12 FUSION-Link..........10-8 Display chart ............1-14 Gain radar............1-15 fish finder..........7-8 selecting ..........1-11 radar............6-2 sounder (fish finder) .......1-16 General menu ........14-10 Display brilliance ........1-10 Grid (cross section display)......8-7 Display selection window ......14-8 Guard zone ..........6-11 description..........1-32...
Page 286 INDEX extending..........5-4 finding on chart........5-7 NAVpilot-700 series ........ 2-21 following ..........5-8 Noise filter ..........8-11 following in reverse direction ....5-12 Notification inserting route points ....... 5-3 end of route ........... 5-14 joining points ........... 5-7 waypoint arrival ........5-13 list ............
Page 287 INDEX Touch control description ....1-3 10-7 Weather radar ..........12-7 Track Weather reports ........12-14 color ............2-15 Wireless LAN settings ......1-34 deleting...........2-18 interval............2-15 XTE alarm ..........2-11 recording ..........2-19 XTE lines..........5-13 removing saved........2-19 replaying saved ........2-19 Zero line ...........7-21 showing/hiding ........2-15 Zoom display..........8-7 thickness ..........2-18 Zoom reference lines .......7-16 trackback..........2-19...
Page 288 When a claim is made, FURUNO has a right to choose whether with other electronic devices. The imported product may also be to repair the product or replace it.
Page 289 24 months from installation date provided the work is done by Furuno U.S.A., Inc. or an AUTHORIZED Furuno dealer during normal shop hours and within a radius of 50 miles of the shop location.
Page 290: Declaration Of Conformity
