CODELOCKS CL400 Installation Instructions Manual page 4

Find more online at www.codelockssupport.com
STEP 9

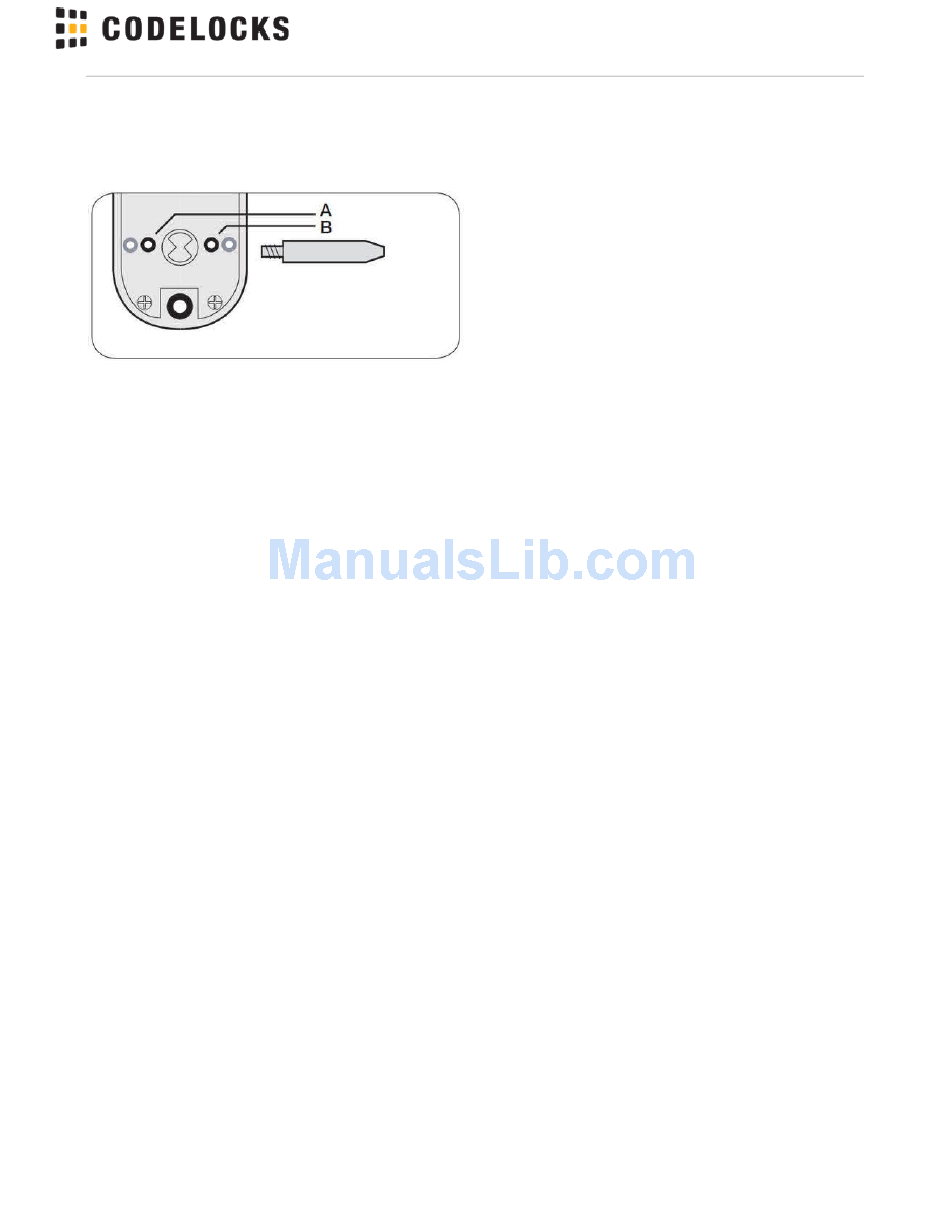

Fit latch support post into back of the code side front plate according
to the hand of your door, A for a right hand door, or B for a left hand
door (see diagram).
STEP 10
Cut two of the back socket head bolts to the required length for your
door. Approximate overall length should be door thickness plus
20mm to allow about 10mm of threaded bolt to enter the outside
plate.
STEP 11
Apply the front and back plates, with the neoprene seals in position,
against the door, over the protruding ends of the spindle.
STEP 12
Fix the two plates together using the socket head bolts, starting with
the top fixing. Ensure that the two plates are truly vertical and then
tighten the bolts. Do not use excessive force.
STEP 13
Before closing the door, enter the code and ensure that the
latchbolt will retract when the lever handle is depressed. Now check
the operation of the inside lever handle. If there is any binding of the
handles or latch then loosen the bolts slightly and reposition the
plates slightly until the correct position is found, and then re-tighten
the bolts.
Page 4
