CODELOCKS CL520 Installation Manual

You are currently in: Codelocks UK > CL520 Lock Installation Guide
CL520 Installation Guide

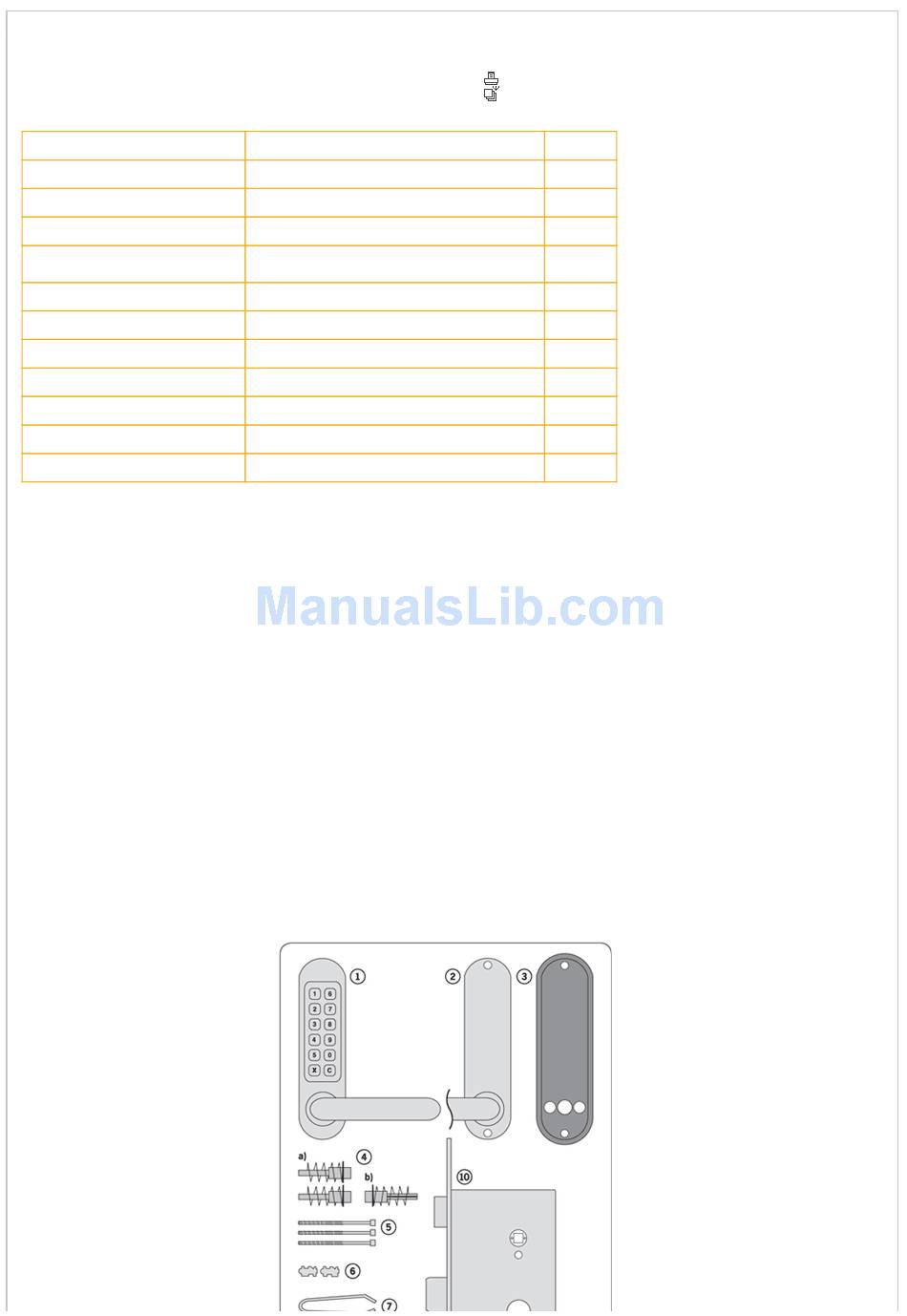

Box Contents
Check the contents of the box are correct according to the model.
Number relating to picture
1
2
3
4
5
6
7
8
9
10
11
Tools Required
Power Drill
Drill bit 30mm, 20mm, 16mm, 12mm
Philips screwdriver
Hammer / mallet
Chisel 22mm
Chisel 25mm
Stanley knife
Adhesive tape, pencil, bradawl, tape measure
Check operation of the coded front plate
Turn the front plate over and note that the red tipped
tumblers inside correspond to the code. The code
may be entered in any sequence, i.e. 1370 may be
entered as 3710 or any other sequence of those
numbers. There are a total of 2,047 codes available,
any of which may be entered in any order.
If you intend to change the code you should do it, if
convenient, before installing the lock – see the Code
Change instructions.

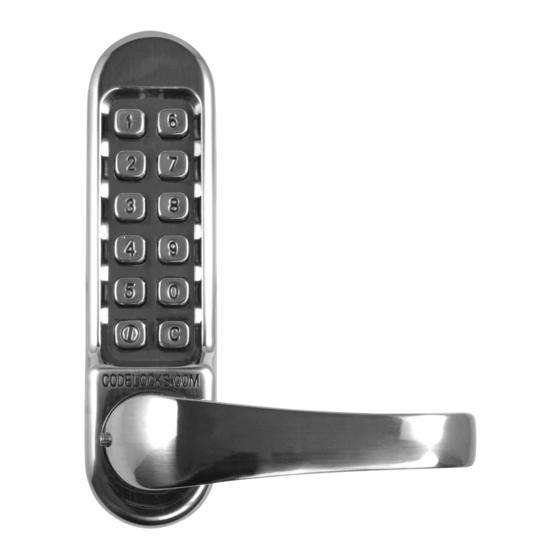

Model CL520 is a complete locking unit with all the
parts necessary for a new installation, or the total
replacement of an existing lock.
IMPORTANT The mortice lock provided (fig.2) has
features which are not found in most other locks and
so it is recommended that you familiarise yourself with
them as follows:
A. When necessary the hand of the latchbolt can be
changed by removing the three screws holding the
faceplate to the lockcase. Reverse the latchbolt,
ensuring that the latchbolt is central, replace the
faceplate.
B. Put the key in the cylinder and insert it centrally into
the lockcase. Fix it in position with the long bolt
through the faceplate. It should now be possible to
project and retract the deadbolt with the key, and also
to retract the latchbolt.
Item
Front Plate and handle
Back Plate and handle
Neoprene seals x 2
Spindles :
a) RED and BLUE tipped spindles
b) Butterfly spindle
Fixing bolts x 2 (1 x spare)
Spare code tumblers x 2
Tweezers for code changing
Allen keys x 2
1 pair euro profile cylinder escutcheons
2 bolt mortice lock and strike
Double europrofile cylinder & 3 keys
