Shinybow USA SB-3879 Instruction Manual

7x2 (mirrored) multi format hdmi video scaler selector switch 7 in's converted to vga & hdmi output
Hide thumbs Also See for SB-3879:
Table of Contents

Advertisement

Quick Links

Download this manual
SB-3879

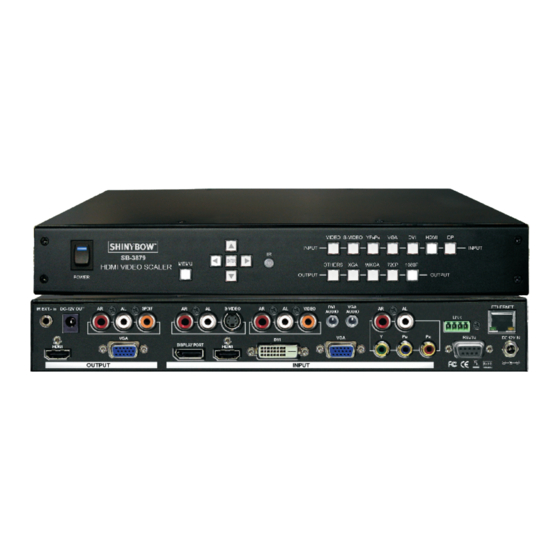

7x2 (mirrored) Multi Format HDMI Video Scaler Selector Switch
7 In's Converted to VGA & HDMI Output
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.

Advertisement

Table of Contents
loading

Related Manuals for Shinybow USA SB-3879

Summary of Contents for Shinybow USA SB-3879

  • Page 1 SB-3879 7x2 (mirrored) Multi Format HDMI Video Scaler Selector Switch 7 In’s Converted to VGA & HDMI Output IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws...

  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    HDTV Distribution Amplifier Series Thank you for purchasing the SB-3879 HDMI Video Scaler. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this HDMI Video Scaler.
  • Page 4 • Supports TV wall function, allowing the image to be divided on multiple displays/monitors • Power supply DC 12V, universal type switch, 100-240VAC, 50/50Hz PACKAGE CONTENTS Check that you have the following components; • SB-3879 Video Scaler • IR Remote Control • Rack Mounts • SB-100 IR Extender Receiver Set •...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Scaler Type: (7) In to (2) Out HDMI Video Scaler • Video Input Signal: (1) Composite, (1) S-Video, (1) Component, (1) VGA, (1) DVI, (1) HDMI, (1) DP • Audio Input Signal: Digital Audio (PCM), Stereo Audio • Video Output Signal: (1) RGB, (1) HDMI • Audio Output Signal: (1) S/PDIF Digital Audio, (1) Analog, Audio RH/LH, (1) HDMI Audio • 3D Support: 3D video format in HDMI 1.4a (225MHz)

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate the switcher is ON and receiving power. The scaler will remember the last setting during a power cycle. When turned on again, it will automatically apply the setting last used.

  • Page 7: Back Panel

    BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The scaler suits a DC power plug-pack input connector. Please ensure the plug-pack used is of an approved DC Jack - Inner OD Ø 2.1mm (+) type and of correct current, voltage output, and connector Outside OD Ø...
  • Page 8 BACK PANEL BACK PANEL 6. YPBPR + AR / AL AUDIO INPUT: Component Video via (3) RCAs Connects a signal of component Female RCA connectors video directly to the female RCA connector, which supports Stereo audio via (2) RCAs component video (YPBPR) to HDTV display devices. Connects Female RCA connectors the output port of your source audio device to the AR/AL inputs.
  • Page 9 BACK PANEL BACK PANEL 11. VIDEO + AR / AL AUDIO INPUT: Female RCA connector Stereo Audio Connects a composite video (AR/AL) via 3.5mm ear phone jack signal to the RCA connector. Connects the output port of your connector source audio device to the AR/AL inputs. Note: With (1) female phone jack for each channel 12.

  • Page 10: Remote Control

    REMOTE CONTROL Before making any connections to the SB-3879. Observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%) • Ensure that the power switch is OFF • Ensure that all system grounds (earth) are connected to a common point.

  • Page 11: Ir Codes

    IR CODES IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 20DF POWER ON: 20DF 5DA2 RETURN: 20DF 11EE XGA: 20DF 07F8 POWER OFF: 20DF 5EA1 MENU: 20DF 19EA WXGA: 20DF 4BB4 MUTE: INFO: 720p: 20DF 02FD...

  • Page 12: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .

  • Page 13: Typical Application

    INPUTS 1 ~ 7 PORT SOURCE SIGNALS: COMPONENT VIDEO, AV, DVI, HDMI, Display Port (5 input ports connected) OUTPUTS 1 ~ 2 PORT DISPLAY SIGNALS: VGA, HDMI SB-3879 SUPPORTS (7) INPUTS AND (2) OUTPUTS, IR CONTROL & RS-232 INTERFACE SYSTEM PORTS.

  • Page 14: Resolution Support

    INPUT RESOLUTION SUPPORT INPUT Resolution COMPONENT HDMI Display Port ü ü ü ü 640x350@85Hz 480p / 480i ü ü ü 640x400@85Hz 576p / 576i ü ü ü ü ü 640x480@60Hz 720p ü ü ü 640x480@72Hz ü ü ü ü 640x480@75Hz ü...
  • Page 15 INPUT RESOLUTION SUPPORT INPUT Resolution COMPONENT HDMI Display Port ü 1400x788@60Hz WXGA+ ü ü ü ü 1400x1050@60Hz SXGA+ ü ü ü ü 1400x1050@75Hz SXGA+ ü ü ü 1400x1050@60RB SXGA+ ü ü ü 1440x900@60Hz WXGA+ ü ü 1440x900@75Hz WXGA+ ü ü ü...
  • Page 16 OUTPUT RESOLUTION SUPPORT OUTPUT FRONT PANEL RESOLUTION BUTTONS HDMI ü ü 720x480 ü ü 800x600 ü ü 1280x800 OTHERS ü ü 1280x1024 ü ü 1360x768 ü ü 1400x1050 ü ü 1600x1200 ü ü WXGA 1920x1200 ü ü 720p 1024x768 ü ü...

  • Page 17: Video Timing List

    VIDEO TIMING LIST (HDMI) H Freq. V Freq. Pixel H Total H Front H Sync V Total V Sync Resolution (Khz) (Hz) Clock Pixel Display Porch Width Sync Lines Display Front Width Sync (MHz) Pixel Lines Porch 640x480 @ 60 Hz 31.484 59.97 25.1875...
  • Page 18 VIDEO TIMING LIST (VGA) H Freq. V Freq. Pixel H Total H Front H Sync V Total V Sync Resolution (Khz) (Hz) Clock Pixel Display Porch Width Sync Lines Display Front Width Sync (MHz) Pixel Lines Porch 640x480 @ 60 Hz 31.563 60.119 25.1875...
  • Page 19 VIDEO TIMING LIST (DISPLAY PORT) H Freq. V Freq. Pixel H Total H Front H Sync V Total V Sync Resolution (Khz) (Hz) Clock Pixel Display Porch Width Sync Lines Display Front Width Sync (MHz) Pixel Lines Porch 640x480 @ 60 Hz 31.56 60.12 25.1875...
  • Page 20 VIDEO TIMING LIST (DISPLAY PORT) H Freq. V Freq. Pixel H Total H Front H Sync V Total V Sync Resolution (Khz) (Hz) Clock Pixel Display Porch Width Sync Lines Display Front Width Sync (MHz) Pixel Lines Porch 1920x1080i @ 50 Hz 28.13 74.25 2640...

  • Page 21: Osd Options Overview

    OSD OPTIONS OVERVIEW Layer 1 Layer2 Layer3 Brightness Contrast Picture Saturation Sharpness Automatic Manual Clock / Phase / Clock Horizontal Position Vertical Position Color Preset Mode / Custom Image Setup Input Signal DVI / HDMI / VGA / Display Port / Component / Composite / S-Video Scaling Original AR / Full Screen 720x480, 800x600, 1280x800, 1280x1024, 1360x768, 1400x1050, 1600x1200,...
  • Page 22 PICTURE PICTURE allows you to digitally adjust the brightness, contrast, hue, saturation, and sharpness of the images. An unilluminated icon suggests the function is not available. To enable it, the unit color must be set in custom mode. Go to the 3rd icon in the first layer to change the setting in color: Image properties ->...
  • Page 23 • Choose the icon and use the down arrow key to open the second layer, which has four options: automatic, manual, horizontal position, vertical position AUTOMATIC SB-3879 reads the Input signal and automatically sets the optimal value for the Output. MANUAL Clock / Phase / Save HORIZONTAL POSITION Move the image to right or left.
  • Page 24 IMAGE PROPERTIES IMAGE PROPERTIES allows you to change Color, select Input Signal, adjust scaling, and change Output Resolution. Resolutions not listed on the front panel button can be selected here, under the output mode. • Layer one, the 3rd icon from left •...
  • Page 25 TV WALL The SB-3879 scaler is able to send divided images on multiple display devices and build a video wall, be it a wall of size 1x2, 2x2, or 10x10. Maximally, the scaler can make possible a video wall of 15x15 screens. Note: A SB-3879 is required for each output. Users may arrange the position and adjust the size of each image block under the TV WALL function.
  • Page 26 OPTIONS OPTIONS allows you to check the connection status, change menu language, return to factory default, save setting, and make adjustments to the setting of the OSD menu . • Layer one, the 6th icon from left • Press the down arrow key to open up the second layer, which has five options: info, language, reset, accessibility, setting INFO Check the connection status of Input/Output ports, the model name, the connection status of RS-232/Ethernet...
  • Page 27 ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP RX +...
  • Page 28 RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 Configuration RS-232 cable is a straight thru cable and not null-modem Definition Definition Shinybow...

  • Page 29: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
  • Page 30 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 31 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 32 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
