6. Attach speaker wires from the ceiling tile hole to the included four-pole captive screw
connector using one of the following three methods below.
NOTES:
•
Be sure that the combined impedance of the speaker system does not equal a
value less than the rated minimum load impedance of the
amplifier.
•

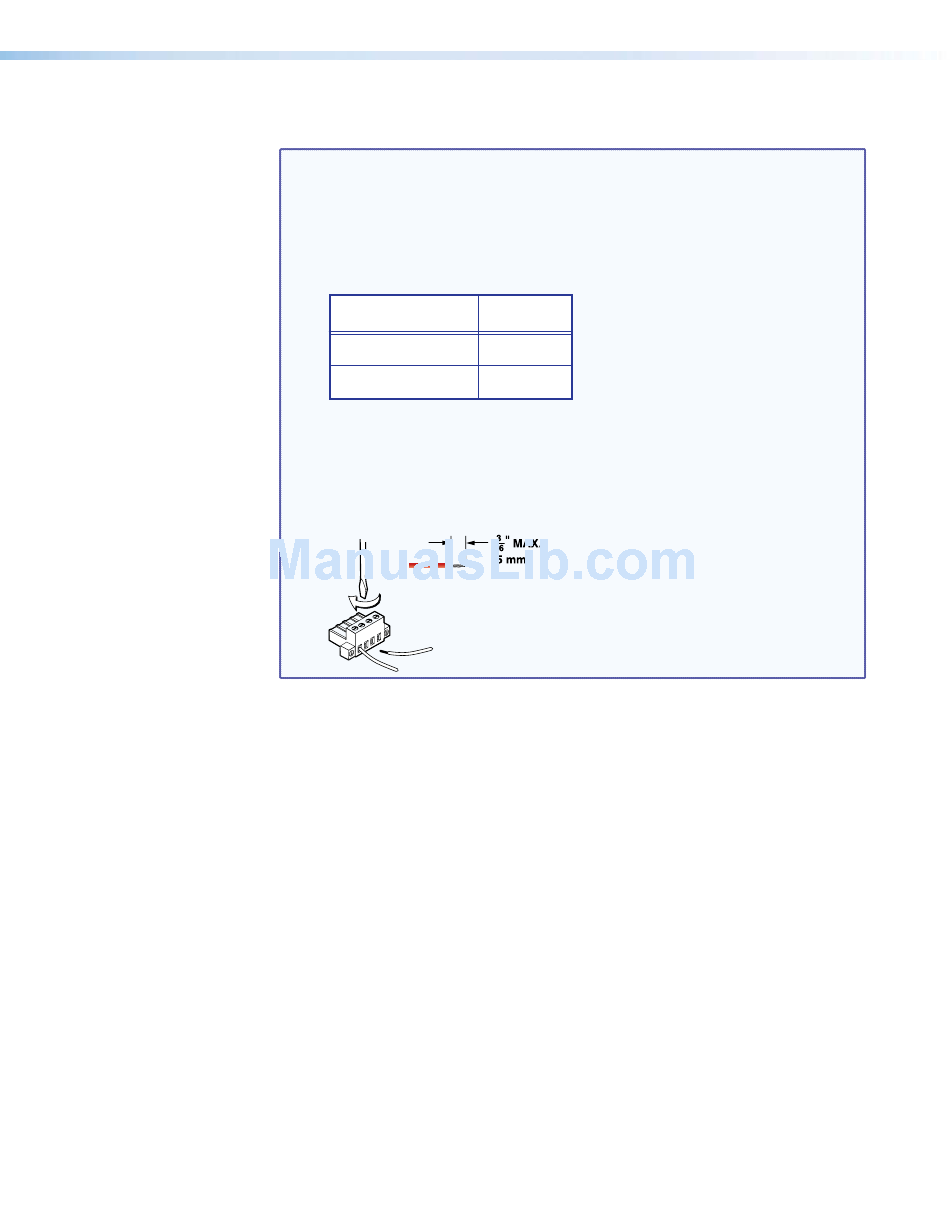

The maximum number of wires per terminal are as follows:
Wire Gauge Table
Number of Wires per
Connection Point
1
2
•
Do not tin the wires. Tinned wires do not hold tight in the captive screws and
can break easily after several bends.
•
Strip no more than 3/16" (5 mm) of insulation from the end of the wire before
inserting it into the captive screw connector.
Do not tin the wires!
Maximum
Wire Gauge
12 AWG
16 AWG
