Wiring Speakers in Parallel:

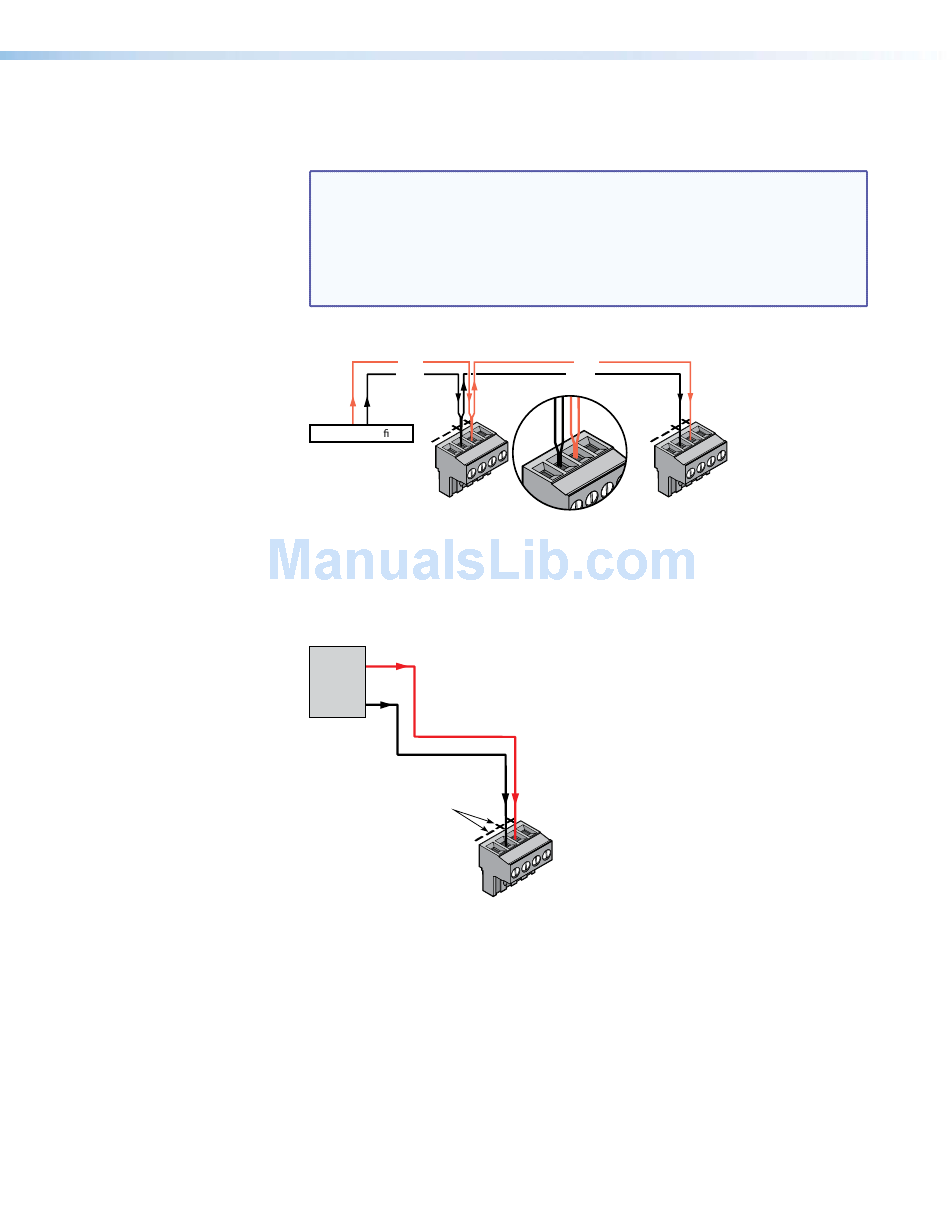

Connect the wires to the captive screw connectors of the speakers, as shown
below. Be sure to tighten the screws.
NOTES:
•
Be sure that the combined impedance of the speaker system does not
equal a value less than the rated minimum load impedance of the
amplifier.
•
When a chain of speakers is wired in this configuration, disconnecting one
speaker does not remove power from the remaining speaker in the chain.
(Red)
(Black)
Power Ampli er
Speaker 1
This configuration is especially useful in installations where the system can never be
completely down, such as in a hospital setting.
The source signal can be tested by connecting to the inner + (IN) and inner – (IN)
terminals of the captive screw connector, as shown below.
Red Wire (+) from Amplifier
Amplifier
Black Wire (-) from Amplifier
Test Points
Captive Screw
Connector
Signal Test Points
(Red)
(Black)
Speaker 2
SF 26X User Guide • Installation
7
