Schema Caldaia; Schéma De Chaudière - Victoria Arduino theresia User Manual

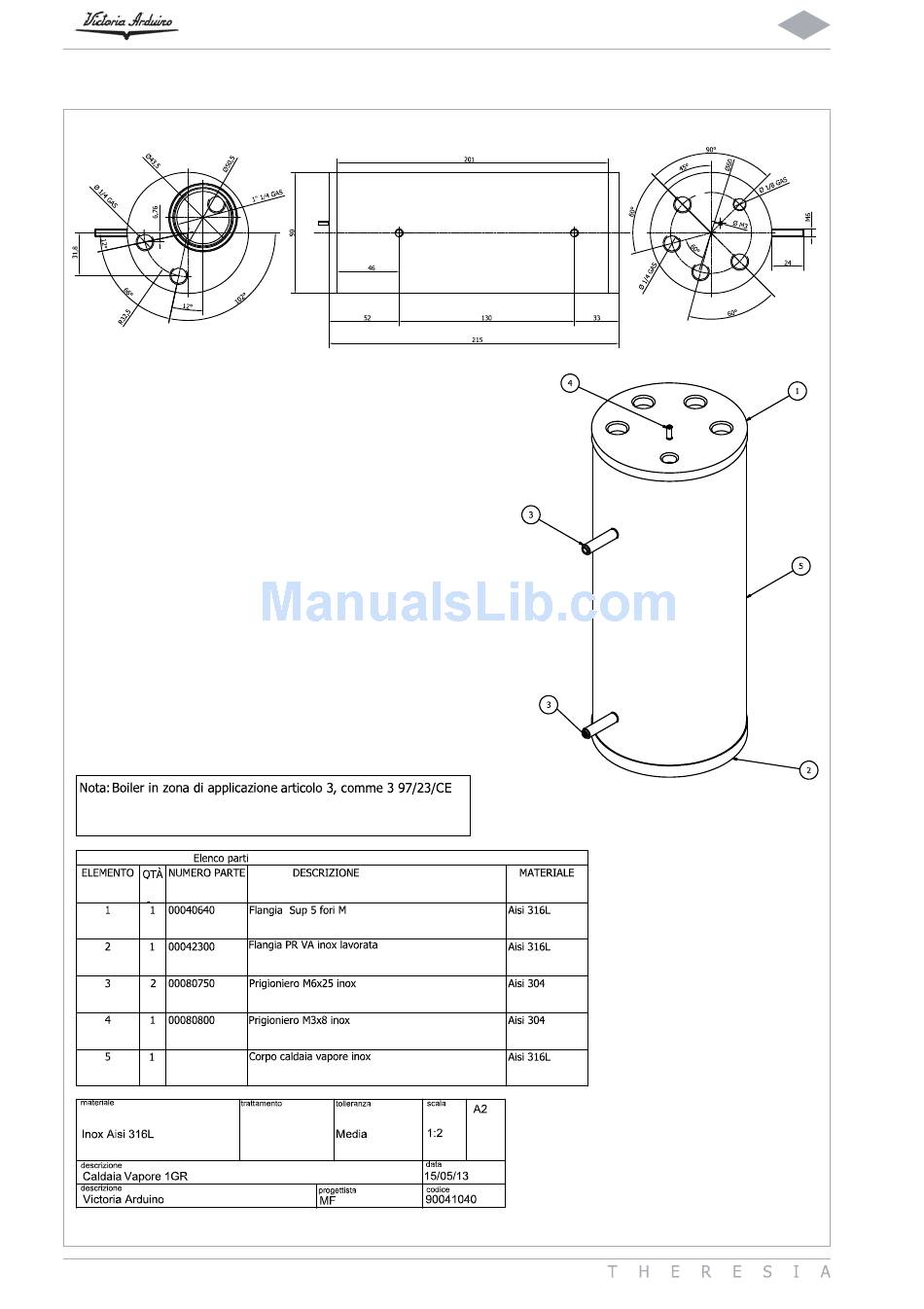

SCHEMA CALDAIA / BOILER DIAGRAM /
Note: Boiler in application area, article 3, section 3 97/23/CE
Note: Chauffe-eau dans zone d'application article 3, alinéa 3 97/23/CE
PART NO.
ELEMENT QTY
NUM. COMPOSANT
ELEMENT QTE
Material Matériau
Description Description
Steam Boiler 1GR Chaudière à vapeur 1GR
Description Description
104
List of Parts Liste des composants
DESCRIPTION
DESCRIPTION
Upper flange 5 holes male machined, stainless steel
Flasque supérieure 5 trous finition inox
Flange Pr VA machined, stainless steel
Flasque Pr VA finition inox
Stud M6x25 stainless steel
Boulon prisonnier M6x25 inox
Stud M3x8 stainless steel
Boulon prisonnier M3x8 inox
Body steam boiler stainless steel
Corps de la chaudière à vapeur en acier inoxydable
Tolerance
Treatment
Traitement Tolérance
Average
Moyenne
Designer Concepteur
SCHÉMA DE CHAUDIÈRE
MATERIAL
MATERIAU
Scale
Echelle
Date Date
Code
Code
IT
