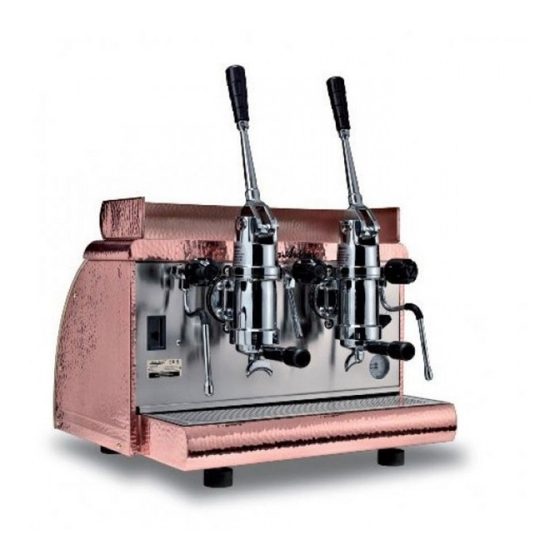

ATHENA
LEVA
Compliments, you have chosen a machine that's unique in its kind.
Read carefully what is advised in the manual to "prepare" your "Athena Leva". You
will realise how easy it is to make excellent coffees and creamy cappuccinos. As time
will pass you will also realise how little maintenance it needs.
Victoria Arduino
13
Advertisement
Related Manuals for Victoria Arduino Athena Leva
Summary of Contents for Victoria Arduino Athena Leva
- Page 1 Compliments, you have chosen a machine that's unique in its kind. Read carefully what is advised in the manual to "prepare" your “Athena Leva”. You will realise how easy it is to make excellent coffees and creamy cappuccinos. As time will pass you will also realise how little maintenance it needs.
- Page 3 ATHENA LEVA Model: Athena 2 Groups - Net weight: 60 Kg - Gross weight: 70 Kg - Thermal power: 3000 W - Boiler capacity 15,2 lt. Dimensions: 640 x 550 x 710h mm - Packaging dimensions: 850 x 630 x 580h mm - Finishing in hammered sheet: copper, chrome, brass Model: Athena 3 Groups - Net weight: 75 Kg - Gross weight: 85 Kg - Thermal power: 5000 W - Boiler capacity 22,8 lt.
- Page 4 GENERAL NOTES ON THE CONSIGNMENT In particular he/she will also have to make sure SAFETY DIRECTIONS ANGER OF POLLUTION that the section of the plant's cables is suitable This manual is an integral and essential part of for the power absorbed by the set. Before connecting the machine make sure the product and it will have to be consigned to It is forbidden to use adapters, multiple sockets...
- Page 5 wrong or irrational uses. The authorised technician before performing At the set up, the certified electrician will ARNING any operation, has to unplug the machine after Before using the machine read the whole manual have to foresee a unipolar switch as it is foreseen having switched off the switch.
- Page 6 authorised centre for its disposal or get in touch a new equipment of equivalent type, in terms WARNING with the manufacturer that will supply you with of one to one. The suitable separate waste col- INFORMATION TO THE USERS the necessary information about it. lection for the following sending of the disused Under the senses of art.
-
Page 7: Description Of Machine
DESCRIPTION OF MACHINE CONTROLS AND OPERATION Warm water tap Lever Heating plate Vapor tap Vapor tap Main switch Water level indicator Manometer with double scale Work bench Filterhalter Coffee dispensing unit... -
Page 8: Transport And Movement
The operator wearing gloves and shoes for acci- Victoria Arduino, always quote the machine's Lift the pallett slowly at about 30 cm from the dent-prevention, will have to proceed to the cut- number plate. -
Page 9: Setup Instructions
VICTORIA ARDUINO machine. The inlet pressure for the coffee machi- is possible to operate on the hydraulic circuit of ATHENA LEVA does not have a pump, the ne should be approximately 2 bar. the machine (see picture). - Page 10 To carry out the manual filling, before swit- ching the machine on, turn the manual loading tap 2 that is below the worktop. Once the boiler is half filled, turn again the manual loading tap 2 and switch the machine on in order to activate the automatic level, also check that the water inlet cock 1 and the auto- matic level cock 3 are open.
- Page 11 decreases and vice versa (normally the machine want. At the end of each operation, remember that could also damage the perfect grip of the that has been tested is adjusted at about 1-1.2 to clean carefully the steam pipe using a wet group and the filter-holder.
- Page 12 FILTERS AND FILTER HOLDERS' CLEAN- SING Add two teaspoons of detergent in half a litre boiling water and dip in the filters and the hol- ders for about half an hour. Rinse carefully in fresh water. Use glass or inox steel containers and keep the filter holder's handle outside the detergent liquids.
