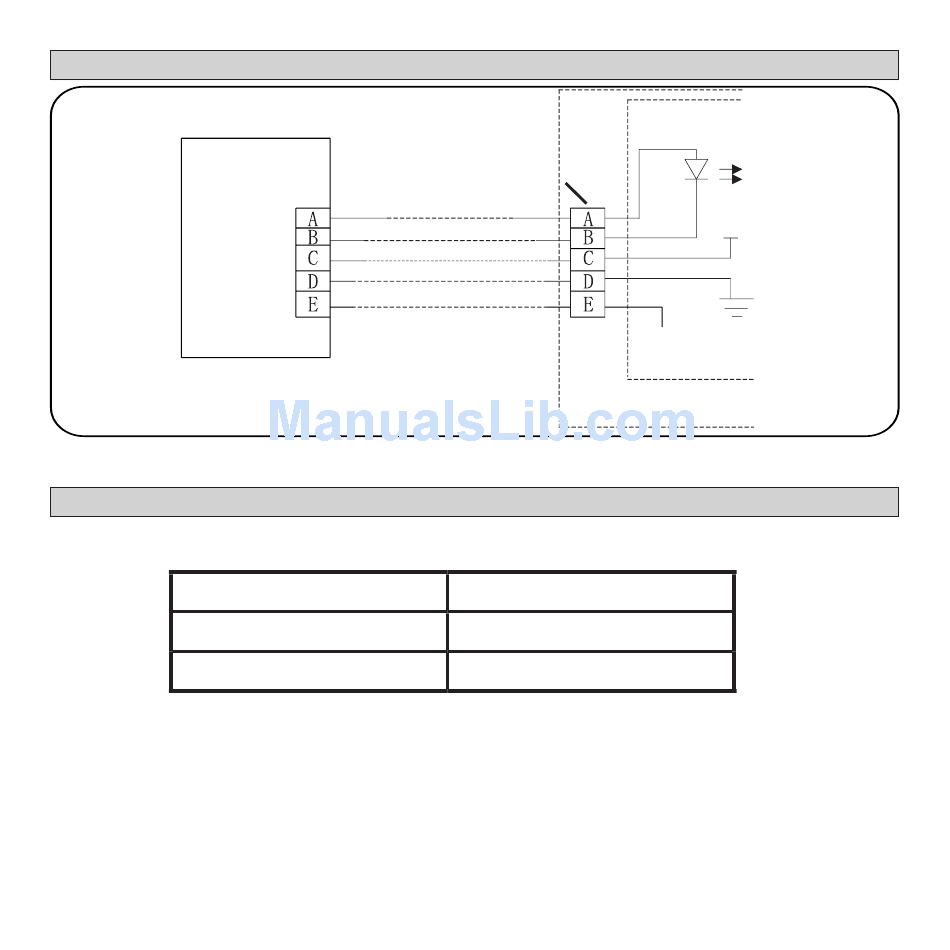

Field Wiring Diagram
Wired
controller
Figure 5. Typical wiring diagram between wired controller and indoor unit
Specifications
Input voltage
Ambient temperature
Ambient humidity
5-way terminal
Shielded
5-conductor cable
Table 1. Specifications
5 VDC
23~110°F (-5~43°C)
RH40%~RH90%
6
Emitter tube
+5V
GND
RUN
Indoor unit
display board
