E2012 Lennox Industries Inc.
Dallas, Texas, USA

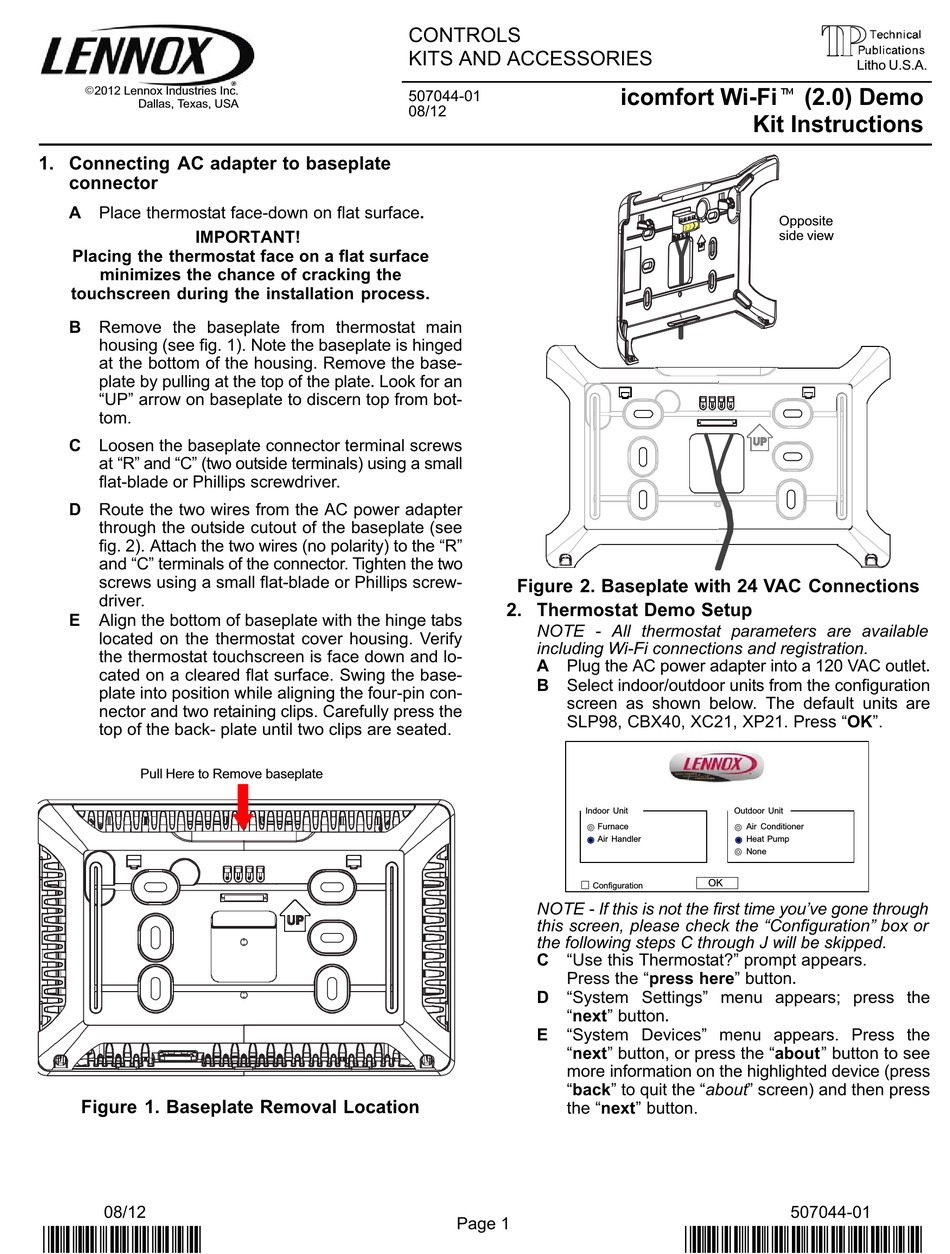

1. Connecting AC adapter to baseplate
connector
A
Place thermostat face−down on flat surface.
IMPORTANT!
Placing the thermostat face on a flat surface
minimizes the chance of cracking the
touchscreen during the installation process.
B
Remove the baseplate from thermostat main
housing (see fig. 1). Note the baseplate is hinged
at the bottom of the housing. Remove the base-
plate by pulling at the top of the plate. Look for an
UP" arrow on baseplate to discern top from bot-
tom.
C
Loosen the baseplate connector terminal screws
at R" and C" (two outside terminals) using a small
flat−blade or Phillips screwdriver.
D
Route the two wires from the AC power adapter
through the outside cutout of the baseplate (see
fig. 2). Attach the two wires (no polarity) to the R"
and C" terminals of the connector. Tighten the two
screws using a small flat−blade or Phillips screw-
driver.
E
Align the bottom of baseplate with the hinge tabs
located on the thermostat cover housing. Verify
the thermostat touchscreen is face down and lo-
cated on a cleared flat surface. Swing the base-
plate into position while aligning the four−pin con-
nector and two retaining clips. Carefully press the
top of the back− plate until two clips are seated.
Pull Here to Remove baseplate
Figure 1. Baseplate Removal Location
08/12
*2P0812*
CONTROLS
KITS AND ACCESSORIES
507044−01
08/12
Figure 2. Baseplate with 24 VAC Connections
2. Thermostat Demo Setup
NOTE − All thermostat parameters are available
including Wi−Fi connections and registration.
A
Plug the AC power adapter into a 120 VAC outlet.
B
Select indoor/outdoor units from the configuration
screen as shown below. The default units are
SLP98, CBX40, XC21, XP21. Press OK".
Indoor Unit
NOTE − If this is not the first time you've gone through
this screen, please check the Configuration" box or
the following steps C through J will be skipped.
C
Use this Thermostat?" prompt appears.
Press the press here" button.
D
System Settings" menu appears; press the
next" button.
E
System Devices" menu appears. Press the
next" button, or press the about" button to see
more information on the highlighted device (press
back" to quit the about" screen) and then press
the next" button.
Page 1
icomfort Wi−Fit (2.0) Demo
Kit Instructions
Outdoor Unit
Furnace
Air Conditioner
Air Handler
Heat Pump
None
OK
Configuration
*P507044-01*
Litho U.S.A.
Opposite
side view
507044−01
